LR063122 - EGR Unit by LAND ROVEREngine Part Land Rover Range Rover Discovery, Range Rover, Range Rover Sport, Range Rover Velar

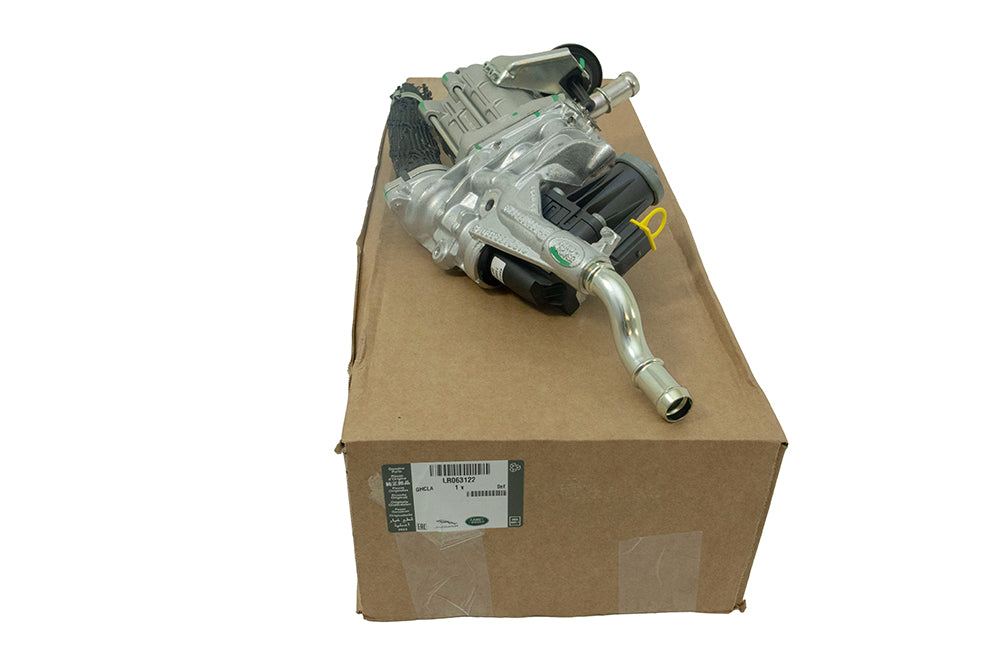

LR063122 - EGR Unit

- €800,00
€800,00
€800,00 - €800,00
€800,00
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
EGR Unit for the exhaust gas recirculation system, mounted on the right-hand side and fed from the exhaust manifold.

The exhaust gas recirculation system returns a metered flow of exhaust gas to the intake to lower combustion temperatures and reduce NOx emissions. This is the complete unit, comprising the EGR valve together with the EGR cooler. For 3.0L V6 diesel applications.
Vehicle Model Land Rover Discovery 5 2017+ (L462)
Range Rover 2013-2022 (L405)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)
Fitment Notes DISCOVERY 5 2017 — 3.0 V6 D Gen2 Mono Turbo (Solihull build (V)FA000001>, Nitra build (V)K2000001>) & Twin Turbo (Solihull build (V)FA000001>, Nitra build (V)K2000001>)
RANGE ROVER L405 2013 on — 3.0 V6 D Gen2 Mono Turbo & Twin Turbo (Solihull build (V)FA000001>)
RANGE ROVER SPORT L494 2014 on — 3.0 V6 D Gen2 Mono Turbo & Twin Turbo (Solihull build (V)FA000001>)
RANGE ROVER VELAR 2017 — 3.0 V6 D Gen2 Twin Turbo (Solihull build (V)FA000001>)
RH side, EGR system from exhaust manifold. LR063122V = valve and gasket, no cooler (Pierburg); LR063122LR = complete EGR unit incl. cooler (Genuine).
Alternative Codes
LR063122LRLR063122

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the EGR Unit and what does it do?
The EGR Unit is the complete exhaust gas recirculation assembly for the 3.0L V6 diesel, comprising the EGR valve together with the EGR cooler. It returns a metered flow of exhaust gas to the intake to lower combustion temperatures and reduce NOx emissions. Mounted on the right-hand side.
What's the difference between LR063122LR and LR063122V?
LR063122LR is the complete Genuine EGR unit including the cooler. LR063122V is the EGR valve and gasket only, without the cooler. Order LR063122LR if you need the full assembly with cooler, or the valve-only part if your cooler is sound.
Where is the EGR unit located on the engine?
The EGR unit is mounted on the right-hand side of the 3.0L V6 diesel engine, fed from the exhaust manifold. It routes exhaust gas through the cooler and valve back into the intake, so it sits between the manifold and the induction side.
Which models does this EGR unit fit?
This complete EGR unit fits the 3.0L V6 diesel Gen2 (mono and twin turbo) in the Discovery 5, Range Rover L405, Range Rover Sport L494 and Range Rover Velar, Solihull build from (V)FA000001. Confirm your engine and VIN before ordering.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

1 option
LR063122V - EGR Valve and Gasket
OEM LR063122V - EGR Valve and Gasket
Stock 0
€420,00 excl. VAT
View →
