LR077773LR - Reversing Lamp Switch by LAND ROVERElectrical Part Land Rover Range Rover

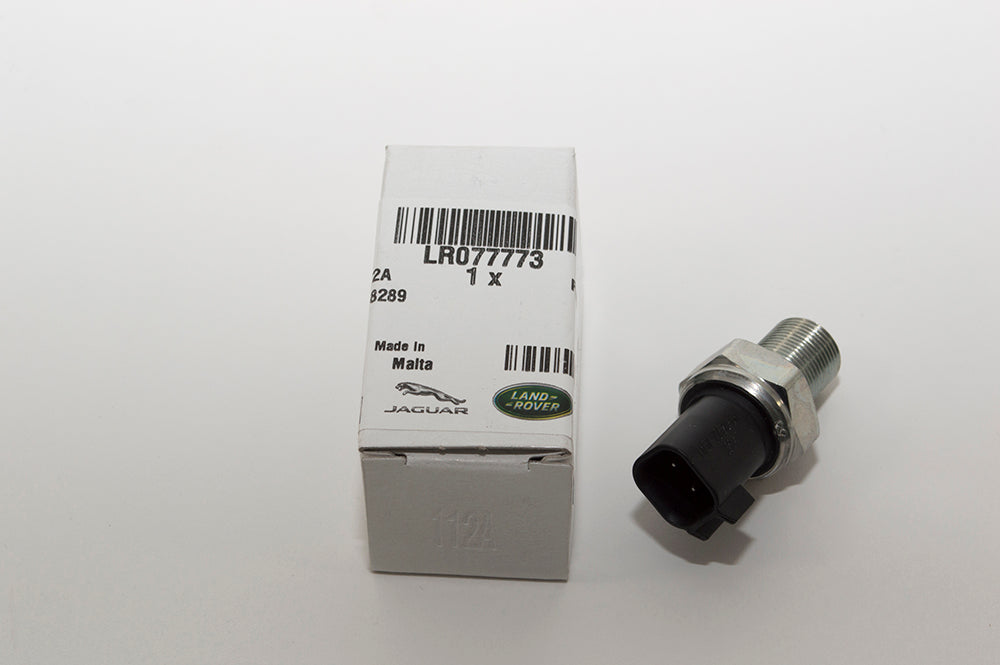

LR077773LR - Reversing Lamp Switch

- €29,10
€29,10
€29,10 - €29,10
€29,10
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Reversing Lamp Switch is a threaded switch that screws into the manual gearbox housing and detects when reverse gear is selected, closing the circuit that illuminates the rear reversing lamps.

Mounted on the MT82 six-speed manual transmission, it is actuated by the movement of the reverse selector inside the gearbox. A failed switch leaves the reversing lamps permanently off, and is a common cause of reverse-light faults.
Vehicle Model Land Rover Defender up to 2016
Fitment Notes DEFENDER 2007-2016 — 2.2D / 2.4D (L317), MT82 manual gearbox. Fitted to the transmission assembly. From VIN 7A000001.
Alternative Codes
LR077773LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR077773LR reversing lamp switch for?
The LR077773LR reversing lamp switch screws into the manual gearbox and detects when reverse gear is selected, closing the circuit that lights the rear reversing lamps. It's fitted to the MT82 six-speed manual gearbox on the Defender.
Which Defender models does this switch fit?
This reversing lamp switch fits the Defender (2007-2016) with the 2.2D or 2.4D engine and MT82 six-speed manual gearbox, from VIN 7A000001. It won't fit automatic gearboxes. Confirm your Defender has the manual MT82 transmission before ordering.
What are the signs this reversing lamp switch has failed?
A failed reversing lamp switch typically leaves the reversing lamps permanently off when reverse is selected, and it's a common cause of reverse-light faults on the Defender. Some faults can also leave the lamps stuck on. Replacing the switch usually restores normal operation.
