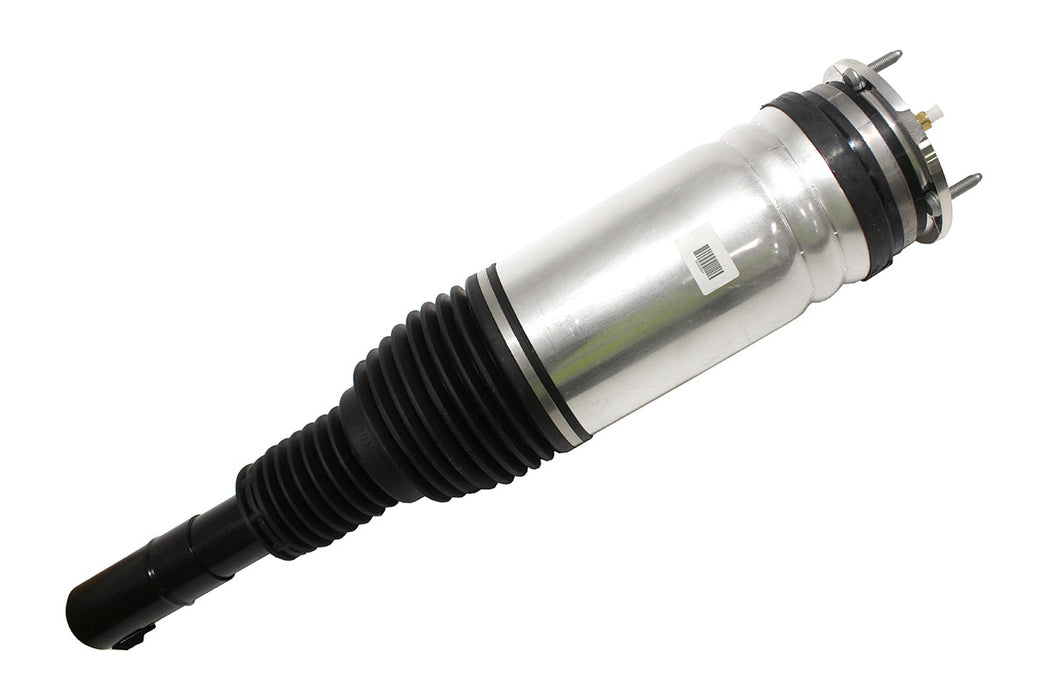

LR174129W - Air Spring+damper Assembly by BWI Land Rover Range Rover

LR174129W - Shock Absorber & Air Spring – Front – LH

€390,00 - €390,00
€390,00
€390,00 - €390,00
€390,00
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand BWI
Front left-hand air spring and damper assembly for the electronic air suspension system, supplied as a complete corner unit with the air spring and shock absorber pre-assembled.

The assembly carries the front corner load through a rolling-lobe air bellows fed from the air suspension compressor and reservoir, while the integral damper controls wheel and body movement. Ride height at the corner is regulated by the suspension control module acting through the height sensor and the air suspension valve block.

Because the air spring and damper are supplied as one assembly, both are replaced together. Renewing front units as an axle pair maintains balanced damping and ride height across the axle.

Vehicle Model Range Rover 2013-2022 (L405)
Fitment Notes RANGE ROVER L405 2013-2022 — Front LH air spring + damper assembly, 5.0L Supercharged, from VIN LA000001
Alternative Codes
LR174129WLR174129

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

Notify me when back in stock

Rather wait until it is in stock? Leave your email address and we will email you the moment it arrives. No newsletter.

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR174129W front air spring and damper assembly?
The LR174129W is a complete front left-hand air spring and damper assembly (OEM, BWI) for the electronic air suspension system. It carries the front corner load through a rolling-lobe air bellows and controls wheel and body movement with the integral damper. The air spring and shock absorber come pre-assembled as one corner unit.
Are the air spring and damper replaced together?
Yes, because the LR174129W supplies the air spring and damper as one assembly, both are replaced together. Renewing the front units as an axle pair keeps damping and ride height balanced across the axle. Ride height is regulated by the suspension control module through the height sensor and valve block.
Does the LR174129W fit my Range Rover L405?
The LR174129W fits the Range Rover L405 (2013-2022) front left-hand corner with the 5.0L supercharged engine, from VIN LA000001. It's for vehicles with electronic air suspension. Confirm your engine and VIN, as air suspension corner units can vary by specification.
