LR176860LR - Cap - Overflow Container by LAND ROVERCooling or Heating Part Land Rover Range Rover

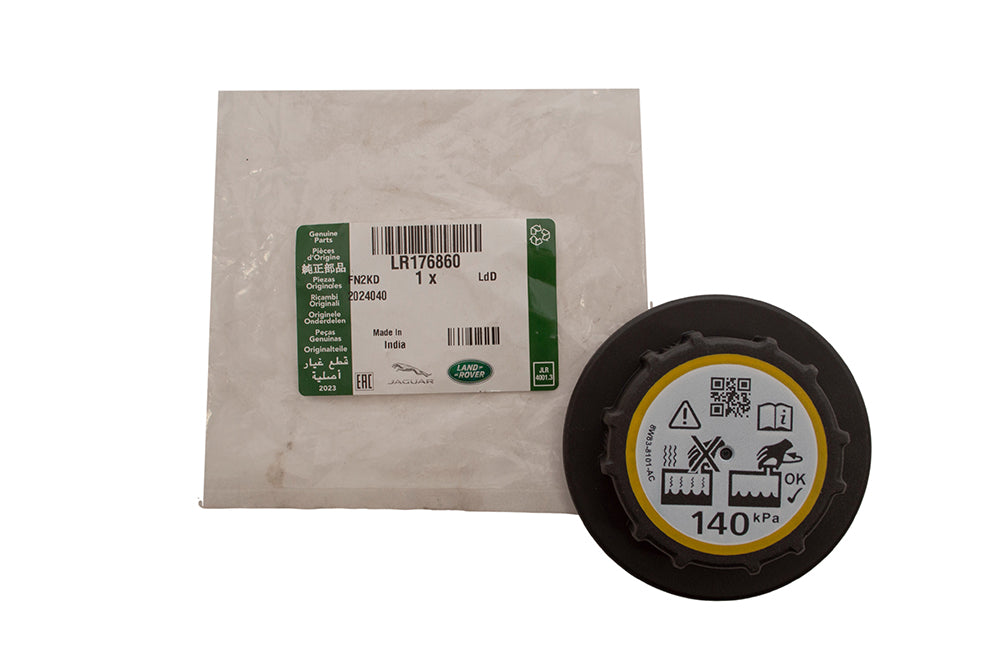

LR176860LR - Coolant Expansion Tank Cap

- €18,70
€18,70
€18,70 - €18,70
€18,70
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.
Coolant Expansion Tank Cap - pressure cap sealing the coolant expansion (overflow) container in the engine cooling circuit.

The cap is a working component rather than a simple closure. Its spring-loaded relief valve holds the cooling system at its designed operating pressure, which raises the boiling point of the coolant and stops the water pump cavitating under sustained load. Above the rated pressure the valve lifts and vents the excess; a second, smaller vacuum valve opens as the engine cools so coolant and air can be drawn back into the system instead of collapsing hoses.

A perished seal or a weakened relief spring lets the circuit run at low pressure, which typically presents as gradual coolant loss, overheating only under load, or a coolant smell with no traceable leak. Renewing the cap whenever the expansion tank or a major cooling component is replaced is normal practice.
Vehicle Model Land Rover Defender New 2020+
Land Rover Discovery 5 2017+ (L462)
Range Rover Velar 2017+ (L560)
Fitment Notes DISCOVERY 5 (L462) 2017+
NEW DEFENDER (L663) 2020+
RANGE ROVER VELAR (L560) 2017+
Coolant expansion / overflow container cap; fits 2.0L & 3.0L petrol, diesel and PHEV
Alternative Codes
LR176860LR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the LR176860LR expansion tank cap do?
The LR176860LR is the pressure cap for the coolant expansion tank on the Discovery 5, New Defender L663 and Range Rover Velar. Its spring-loaded valve holds the cooling system at its rated pressure, raising the coolant boiling point and stopping the water pump cavitating under load.
What are the signs of a failed coolant cap?
A perished seal or weak relief spring on this cap typically causes gradual coolant loss, overheating only under load, or a coolant smell with no visible leak. Once the cap can't hold pressure the system runs low and boils sooner, so it's worth renewing when other cooling parts are replaced.
Does one cap fit petrol, diesel and hybrid versions?
Yes, this expansion tank cap fits 2.0L and 3.0L petrol, diesel and PHEV versions across the Discovery 5, Defender L663 and Velar. The cap seals the same expansion tank across those engine variants, so engine choice doesn't change the part.
