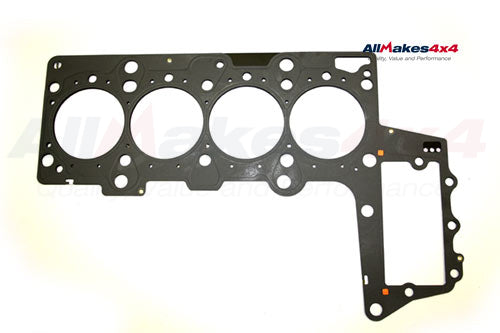

LVB000100L - Head Gasket – TD4 – 1.65mm 3-Hole by AllmakesEngine Part Land Rover Range Rover Freelander 1

LVB000100L - Head Gasket – TD4 – 1.65mm 3-Hole

- €35,00
€35,00
€35,00 - €35,00
€35,00
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Cylinder Head Gasket seals the joint between the cylinder head and engine block, containing combustion pressure while sealing the coolant passages and oil galleries that cross the block deck.

Fitted to the 2.0L TD4 diesel engine. This is the 1.65 mm gasket, identified by three holes. Head gasket thickness is selected to suit the measured piston protrusion, and the identification holes denote the correct thickness grade for the build.
Vehicle Model Land Rover Freelander 1 1996-2006 (L314)
Fitment Notes FREELANDER 1 1996-2006 — 2.0L TD4 Diesel (M47), Cylinder Head Gasket 1.65mm 3 Holes
Alternative Codes
LVB000100L

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is this Head Gasket used for?
This Head Gasket seals the cylinder head to the block on the Freelander 1 2.0 TD4 diesel (M47) engine. It contains combustion pressure while sealing the coolant passages and oil galleries that cross the block deck. This is the 1.65mm three-hole grade.
What do the three holes and 1.65mm marking mean?
The three holes and 1.65mm figure identify the gasket thickness grade. On the TD4 engine, head gasket thickness is matched to the measured piston protrusion, and the hole count denotes the correct grade for that build.
How do I know which thickness grade I need?
Match the hole count on your original gasket, or measure piston protrusion, to pick the right grade. This is the three-hole 1.65mm version, so check it matches the gasket you removed before fitting rather than guessing.
Which engine does this head gasket fit?
It fits the Land Rover Freelander 1 with the 2.0 TD4 diesel (M47) engine. Confirm both the engine and the correct thickness grade with your VIN and the old gasket before ordering.
