LVB101830L - Cylinder Head Gasket – 1.55mm – 2 Holes by AllmakesEngine Part Land Rover Range Rover Freelander 1

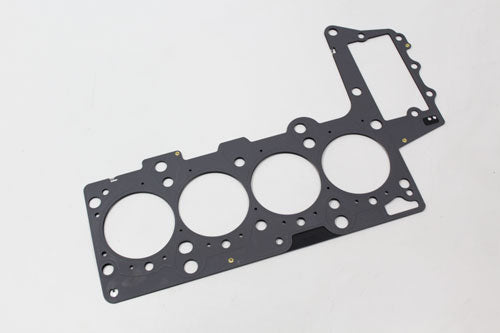

LVB101830L - Cylinder Head Gasket – 1.55mm – 2 Holes

- €49,50
€49,50
€49,50 - €49,50
€49,50
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Cylinder Head Gasket for the 2.0L Td4 four-cylinder turbo diesel engine (M47), sealing the joint between the cylinder head and the engine block.

It seals the combustion chambers to maintain compression and isolates the coolant and oil galleries passing between the head and block. This gasket carries the two-hole grade marking and a 1.55mm thickness. The Td4 head gasket is supplied in graded thicknesses identified by the number of holes (notches), selected to match measured piston protrusion, so the correct grade must be confirmed against the engine being rebuilt.
Vehicle Model Land Rover Freelander 1 1996-2006 (L314)
Fitment Notes FREELANDER 1 1996-2006 — 2.0L Diesel Td4 (M47 16V), Cylinder Head Gasket 1.55mm 2 Holes
Alternative Codes
LVB101830L

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Td4 cylinder head gasket and what does it do?
The cylinder head gasket seals the joint between the cylinder head and engine block on the Freelander 1 2.0L Td4 turbo diesel (M47). It maintains compression and separates the coolant and oil galleries between head and block. This gasket carries the two-hole grade marking and a 1.55mm thickness.
How do I know if I need the 1.55mm 2-hole grade?
The 1.55mm two-hole gasket is one of several graded thicknesses for the Td4 (M47) engine. Grade is identified by the number of holes (notches) and chosen to match measured piston protrusion. Confirm the grade against your actual engine measurements before ordering, since the wrong thickness changes compression.
What are the signs the Td4 head gasket has failed?
Signs of head gasket failure on the Freelander 1 Td4 include coolant loss, white exhaust smoke, oil mixing with coolant, and overheating. These point to a breakdown of the seal between head and block. Replacement typically involves removing the head and checking it for flatness.
