RNB000750PR - Shock Absorber & Air Spring by PROEVO+ Land Rover Range Rover

RNB000750PR - Air Suspension Strut – Front LH

- €320,00

€320,00

€320,00 - €320,00

€320,00

FYI: This product’s size or weight exceeds standard limits, so extra shipping fees could apply.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand PROEVO+

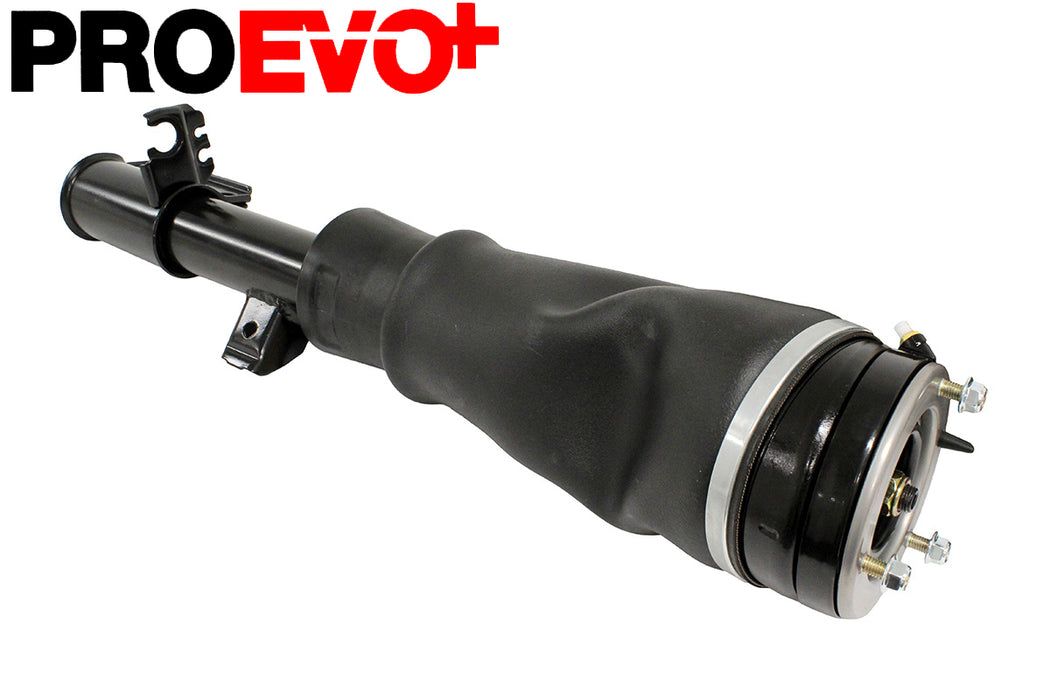

Front Air Suspension Strut - Left-Hand - a complete corner unit combining the damper and the air spring in a single assembly, forming part of the electronic air suspension system.

The rolling-lobe air spring carries the corner load and sets ride height, while the integral damper controls wheel movement. Air is metered into and out of the spring by the suspension ECU through the valve block and reservoir. A failing strut shows either as a corner that settles overnight, a suspension height fault, or as the loss of damping control associated with a worn damper.

Supplied as a complete assembly, so the air spring and damper are renewed together rather than serviced separately. This is the left-hand front unit; the right-hand front strut is listed separately.

Vehicle Model Range Rover 2002-2012 (L322)

Fitment Notes RANGE ROVER L322 2002-2009 — LH front strut (shock absorber & air spring), less armoured. Engines: 3.6 TDV8 Lion, 4.2 V8 Supercharged, 4.4 V8 EFi, M57 3.0 Diesel, M62 4.4 V8 Petrol. Up to VIN 9A999999

Alternative Codes

RNB000750PR

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the front left air suspension strut on a Range Rover L322?

The front left air suspension strut is a complete corner unit that combines the damper and the rolling-lobe air spring in one assembly on the Range Rover L322. The air spring carries the corner load and sets ride height, while the integral damper controls wheel movement. Air is metered by the suspension ECU through the valve block.

Does this fit my Range Rover, and how do I confirm it?

This strut fits the Range Rover L322 in left-hand front position, less armoured, up to VIN 9A999999. Fitment covers the listed L322 engines including the 4.4 V8 and 3.0 diesel. Check your VIN against the 9A999999 ceiling before ordering, since later L322 build uses different corner units.

Do I need to replace both front struts at once?

Replacing both front struts together is usually the sensible approach on the L322, even though this is sold as a single left-hand unit. Matching struts side to side keeps ride height and damping balanced across the axle. A worn strut typically shows as a corner that settles overnight or a suspension height fault.

Why do air suspension struts fail on the L322?

Air suspension struts on the Range Rover L322 typically fail when the rolling-lobe air spring perishes and leaks, or when the integral damper wears and loses control. Symptoms are a corner sitting low after standing, a suspension fault warning, or a floating ride. The air spring and damper are renewed together as one assembly.
