TBH100040 - Crownwheel & Pinion – 2-Pinion
Original price
-
Original price
€280,00
Original price
€280,00
€280,00
-
€280,00
Current price
€280,00
Aftermarket: Quality alternative.
This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

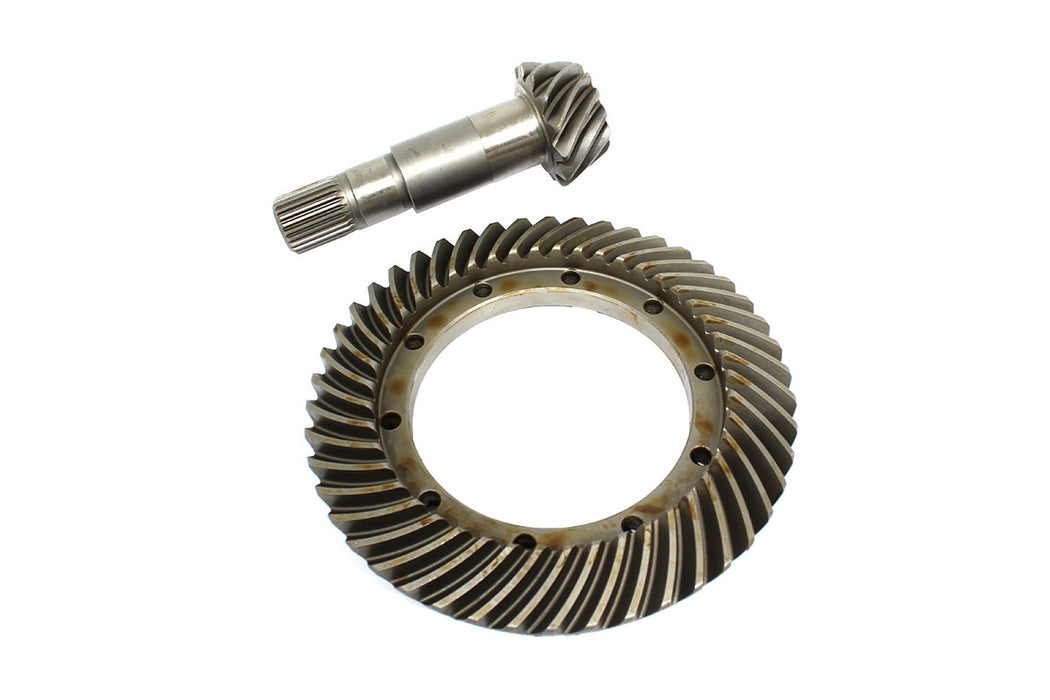

Crownwheel and Pinion Set - 3.54:1 final drive ratio (13-tooth pinion, 46-tooth crownwheel), for the two-pinion differential used in the Land Rover type axle. Suitable for front or rear differential use.
The pinion takes drive from the propshaft at the drive flange and turns it through 90 degrees into the crownwheel, which is bolted to the differential carrier and drives the differential gear set and the halfshafts. This version has a female M12 threaded pinion and accepts a 24-spline drive flange.
The pinion takes drive from the propshaft at the drive flange and turns it through 90 degrees into the crownwheel, which is bolted to the differential carrier and drives the differential gear set and the halfshafts. This version has a female M12 threaded pinion and accepts a 24-spline drive flange.
The crownwheel and pinion are lapped together as a matched pair at manufacture and must be supplied and fitted together - neither gear may be replaced individually, and gears from different sets must never be mixed. Fitting requires the pinion bearing preload and the crownwheel backlash to be set with shims, and the tooth contact pattern to be checked, before the differential is returned to service.
Vehicle Model
Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Land Rover Discovery 1 1989-1998 (L318)
Fitment Notes
DEFENDER 1987-2006 — Axle crownwheel & pinion, 2-pinion, Land Rover type axle
DEFENDER 2007-2016 — Front axle diff crownwheel & pinion, 2-pinion, 90" wheelbase
DISCOVERY 1 1989-1998 — Front differential crownwheel & pinion. VIN FA393361 to WA799999. Superseded by LR027527.
DEFENDER 2007-2016 — Front axle diff crownwheel & pinion, 2-pinion, 90" wheelbase
DISCOVERY 1 1989-1998 — Front differential crownwheel & pinion. VIN FA393361 to WA799999. Superseded by LR027527.
Alternative Codes
TBH100040
Available to order
2–3 weeks
Not currently in stock. Order now — typically ships within 2–3 weeks.
Need it faster? Contact us about express import (2–5 business days).
