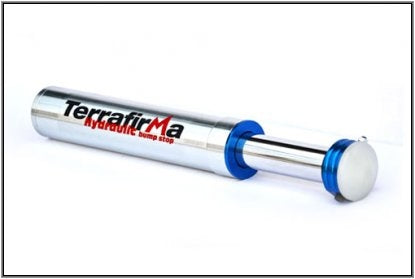

TF140 - Hydraulic Bump Stop – 4" Travel
Original price
-
Original price
€193,10
Original price
€193,10
€193,10
-
€193,10
Current price
€193,10
OEM: Made by an Original Equipment Manufacturer.
This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Terrafirma hydraulic bumpstop 4"" travel
4"" (100MM) travel
Zinc plated for bright long lasting finish with striking blue anodised machined alloy fittings.
High pressure Nitrogen charged
High temperature 5W premium quality shock fluid
Adjustable between 100 and 400psi, factory set at 150psi fo immediate fitment
3MM wall thickness
Axle bending, bone jarring impacts are a thing of the past with Terrafirma hydraulic bump stops fitted.
The perfect solution for preventing the harsh suspension 'bottoming' associated with standard rubber bump stops.
With 4"" of travel the Terrafirma hydraulic bump stops progressively absorb the last few inches of suspension movement dramatically smoothing landings and massive bumps.
Terrafirma hydraulic bump stops reduce driver fatique and possible chassis/axle damage by controlling shock absorber travel close to full compresion.
Precision engineered from 2"" (52mm) diameter aluminium with a super tough hard chrome 32mm diameter piston rod.
Classic Terrafirma blue and silver styling is retained with machined anodised fittings and a nylon contact pad keeps noise during operation to a minimum.
Mounting Terrafirma hydraulic bump stops to Land Rovers is made possible with specific Terrafirma mounting kits.
They can be mounted with any shockabsorber option and are adjustable to limit compression movement as required.
Weld on mouning tubes are also available for custom vehicle builders who wish to incorporate Terrafirma hydraulic bumps stops into theair chassis design.
The bump stops are adjustable between 150 and 400psi and come factory set at 150psi.
The lenght of travel and specification of the Terrafirma bump stop are ideally suited to Land Rover type 4X4 and similar weight applications.
4"" (100MM) travel
Zinc plated for bright long lasting finish with striking blue anodised machined alloy fittings.
High pressure Nitrogen charged
High temperature 5W premium quality shock fluid
Adjustable between 100 and 400psi, factory set at 150psi fo immediate fitment
3MM wall thickness
Axle bending, bone jarring impacts are a thing of the past with Terrafirma hydraulic bump stops fitted.
The perfect solution for preventing the harsh suspension 'bottoming' associated with standard rubber bump stops.
With 4"" of travel the Terrafirma hydraulic bump stops progressively absorb the last few inches of suspension movement dramatically smoothing landings and massive bumps.
Terrafirma hydraulic bump stops reduce driver fatique and possible chassis/axle damage by controlling shock absorber travel close to full compresion.
Precision engineered from 2"" (52mm) diameter aluminium with a super tough hard chrome 32mm diameter piston rod.
Classic Terrafirma blue and silver styling is retained with machined anodised fittings and a nylon contact pad keeps noise during operation to a minimum.
Mounting Terrafirma hydraulic bump stops to Land Rovers is made possible with specific Terrafirma mounting kits.
They can be mounted with any shockabsorber option and are adjustable to limit compression movement as required.
Weld on mouning tubes are also available for custom vehicle builders who wish to incorporate Terrafirma hydraulic bumps stops into theair chassis design.
The bump stops are adjustable between 150 and 400psi and come factory set at 150psi.
The lenght of travel and specification of the Terrafirma bump stop are ideally suited to Land Rover type 4X4 and similar weight applications.
Vehicle Model
Land Rover Defender up to 2016
Alternative Codes
TF140
Available to order
2–3 weeks
Not currently in stock. Order now — typically ships within 2–3 weeks.
Need it faster? Contact us about express import (2–5 business days).
When will my order arrive?
This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.
- Netherlands / Belgium / Germany: 2–4 working days after dispatch.
- Other EU countries + UK: 4–8 working days after dispatch.
- Outside EU/UK: contact us for an estimate.
Need it faster? Express import available in 2–5 business days — contact us before ordering.
