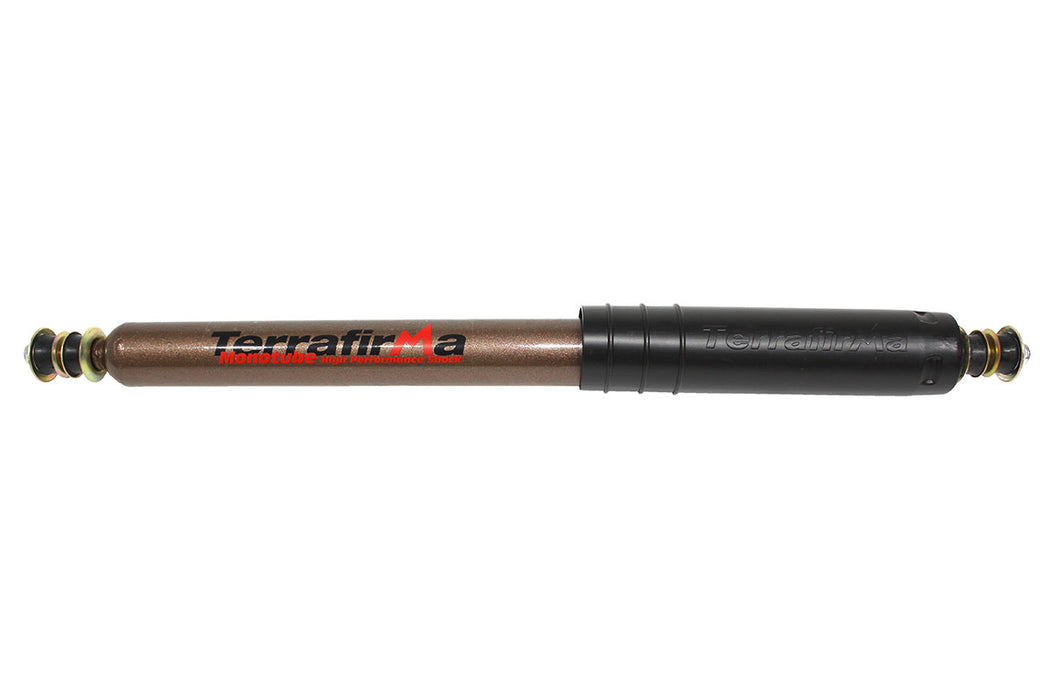

TF2122 - Monotube 5IN Front Rear Shock Absorber by Terrafirma Land Rover Range Rover

TF2122 - Monotube Shock Absorber – Front & Rear – +5"

- €98,10
€98,10
€98,10 - €98,10
€98,10
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand Terrafirma
Monotube Shock Absorber for either the front or the rear damper position of the coil sprung suspension, working alongside the coil spring to control body movement and keep the wheel loaded over uneven ground.

Monotube construction uses a floating piston to separate the high-pressure nitrogen charge from the suspension fluid, so the two cannot mix and aeration is eliminated under sustained damping loads. The higher gas pressure allows more responsive valving, giving greater sensitivity over small surface irregularities and a firmer, faster reaction to large impacts. The single large-bore body increases fluid capacity and gives the piston a wider working area for more precise damping control.

Built with 5" of additional travel over the standard damper, for suspension raised well beyond standard ride height. Mounting is pin (spigot) type at both the top and the bottom eye, so the mounting arrangement at the fitted position must accept a pin-to-pin damper.
Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994
Fitment Notes Terrafirma monotube shock absorber, front & rear, +5 inch travel, pin-to-pin mount.
DEFENDER 1986-2006 — all variants
DEFENDER 2007+ (Puma) — all variants
DISCOVERY 1 1989-1998 — all variants
RANGE ROVER CLASSIC 1970-1994 — all variants
Alternative Codes
TF2122

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the +5in monotube shock absorber?
The +5in monotube shock absorber is a gas damper that fits either the front or rear position on a pin-to-pin mount, built for a 5in raised ride height. The floating piston separates the nitrogen charge from the fluid to prevent aeration and damping fade.
Does this shock go on the front or rear?
This monotube shock fits either the front or rear damper position on a pin-to-pin mount, so it suits big-lift builds. Its +5in travel matches raised suspension, so it isn't for a standard-height vehicle.
What are the signs this shock needs replacing?
A worn +5in monotube shock typically shows as a bouncing, uncontrolled ride and the axle losing contact over rough ground. Oil weeping down the shock body signals the damper has lost its charge and should be replaced.
Which vehicles does this +5in shock fit?
This +5in pin-to-pin monotube shock fits the Defender (1986-2006 and 2007-on Puma), Discovery 1 (1989-1998) and Range Rover Classic (1970-1994), across all variants, for front or rear on heavily lifted suspension.
