TF241 - Hydraulic Bump Stop & Mounting Kit Steering or Suspension Part Land Rover Range Rover Defender, Discovery, Range Rover

TF241 - Hydraulic Bump Stop & Mounting Kit

- €1.230,00
€1.230,00
€1.230,00 - €1.230,00
€1.230,00
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Hydraulic Bump Stop & Mounting Kit is a complete progressive end-of-travel control package for the suspension, combining four hydraulic bump stops with their front and rear mounting hardware.

Each TF140 bump stop is a monotube, high-pressure nitrogen-charged hydraulic unit with adjustable damping (32mm shaft, 46mm piston, 52mm body). It absorbs hard bottoming far more progressively than a conventional rubber stop. The mounting kits supply the reinforced chassis and axle brackets needed to withstand repeated heavy impacts.

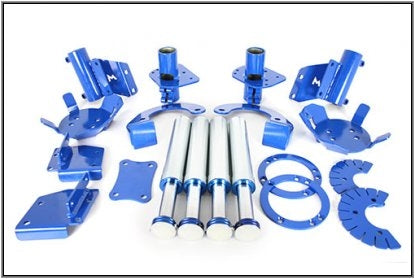

This kit includes four TF140 hydraulic bump stops, a TF542 front mounting kit and a TF543 rear mounting kit. On some platforms the rear floor pan must be trimmed to clear the assembly.
Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994
Fitment Notes DEFENDER (90 SWB) — hydraulic bump stop & mounting kit, short wheelbase only
DISCOVERY 1 1989-1998 — all variants
RANGE ROVER CLASSIC — all variants
Alternative Codes
TF241

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the TF241 Hydraulic Bump Stop & Mounting Kit?
The TF241 is a complete progressive end-of-travel kit combining four hydraulic bump stops with front and rear mounting hardware. Each unit damps hard bottoming far more progressively than a conventional rubber stop, protecting the chassis and axle on heavy off-road impacts.
What's included in the TF241 kit?
The TF241 kit includes four TF140 hydraulic bump stops, a TF542 front mounting kit and a TF543 rear mounting kit. The mounting kits supply the reinforced chassis and axle brackets needed to withstand repeated heavy impacts.
Does the TF241 kit fit any Defender?
On the Defender, the TF241 kit fits the 90 short-wheelbase only. It also fits Discovery 1 (1989-1998) and Range Rover Classic across all variants. Confirm your wheelbase before ordering, as the long-wheelbase 110 and 130 aren't covered by this kit.
Do I need to modify my vehicle to fit the TF241 kit?
On some platforms, yes. Fitting the TF241 kit can require trimming the rear floor pan to clear the bump stop assembly. Check clearance above the rear axle first, as the hydraulic units typically sit taller than the standard rubber stops they replace.
How do I know if a hydraulic bump stop needs replacing?
A hydraulic bump stop typically needs replacing when it leaks oil, loses its nitrogen charge, or no longer cushions hard bottoming so impacts feel sudden and harsh again. On heavy off-road use these take repeated abuse, so inspect the TF140 units for leaks during servicing.
