TF685 - High Performance Brake Kit - 90 by Terrafirma Land Rover Range Rover

TF685 - Brake Upgrade Kit – 6 & 4 Piston

- €6.170,00
€6.170,00
€6.170,00 - €6.170,00
€6.170,00
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Brand Terrafirma
Performance brake upgrade kit replacing the front and rear calipers and the front discs of the foundation braking system.

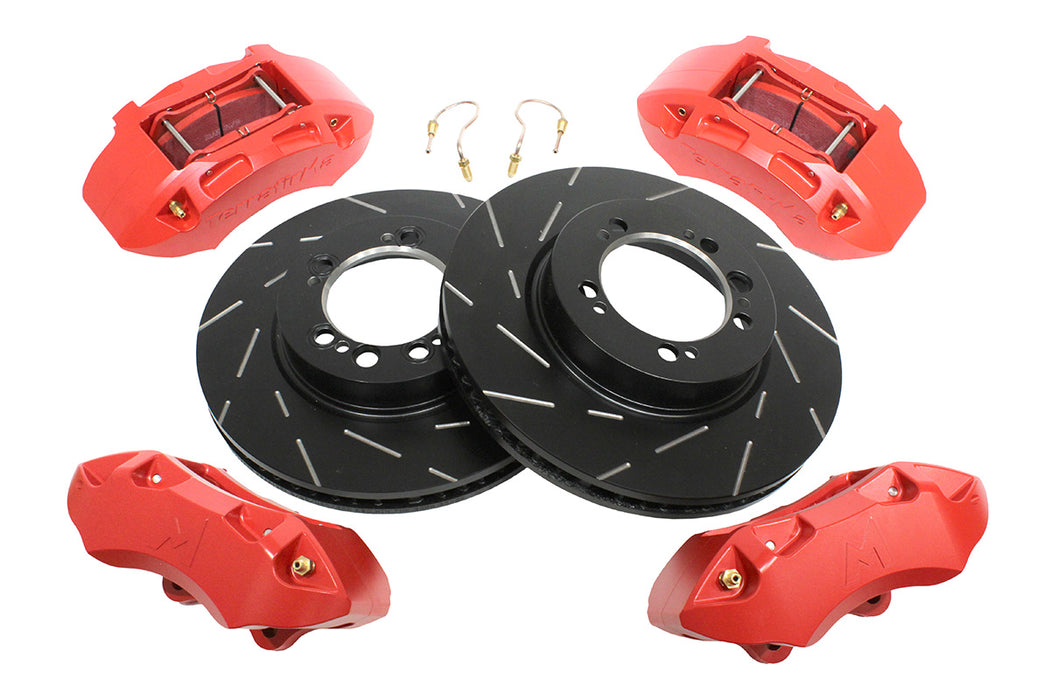

The kit contains six-piston front calipers with 330 x 32 mm vented and grooved front discs, four-piston rear calipers, and EBC Redstuff brake pads for both axles. The calipers are produced from aerospace-grade aluminium, hard anodised and ceramic coated, and run stainless steel pistons and pins with Holokrome 12.9 grade high-tensile bolts.

Rear brake discs are not included. The kit runs the standard 298 mm rear disc; a vehicle still fitted with the earlier 290 mm rear discs will need the 298 mm type (LR018026 or LR017951).



The larger caliper and disc package is dimensioned to clear 16" and larger steel or alloy wheels.
Vehicle Model Land Rover Defender up to 2016
Fitment Notes DEFENDER 90 1983-2006 — Terrafirma high-performance braking kit: billet alloy 6 & 4 piston calipers & disc upgrade. AllMakes also lists 110/130 application (2007-2016).
Alternative Codes
TF685

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the TF685 6 and 4 piston brake kit?
The TF685 is a performance brake upgrade for the Defender that replaces the front and rear calipers and the front discs, using six-piston front calipers with 330 x 32mm grooved discs and four-piston rear calipers.
What pads and caliper construction does the kit use?
The kit uses EBC Redstuff pads front and rear. The calipers are aerospace-grade aluminium, hard anodised and ceramic coated, running stainless steel pistons and pins with grade 12.9 high-tensile bolts.
Are rear brake discs included?
No, rear brake discs are not included. The kit runs the standard 298mm rear disc, so a vehicle still fitted with the earlier 290mm rear discs will need to change to the 298mm type.
What wheels clear the TF685 brake kit?
The larger caliper and disc package is dimensioned to clear 16-inch and larger steel or alloy wheels.
Which Defender does this kit fit?
It fits the Defender 90 (1983-2006). AllMakes also lists a 110 and 130 application for 2007 to 2016.
