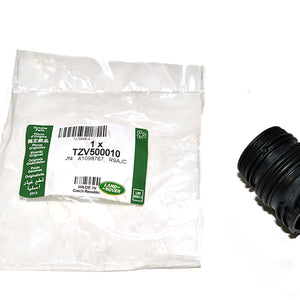

TZV500010 - Transmission Sleeve – ZF 6HP26/6HP28

- €19,60

€19,60

€19,60 - €19,60

€19,60

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

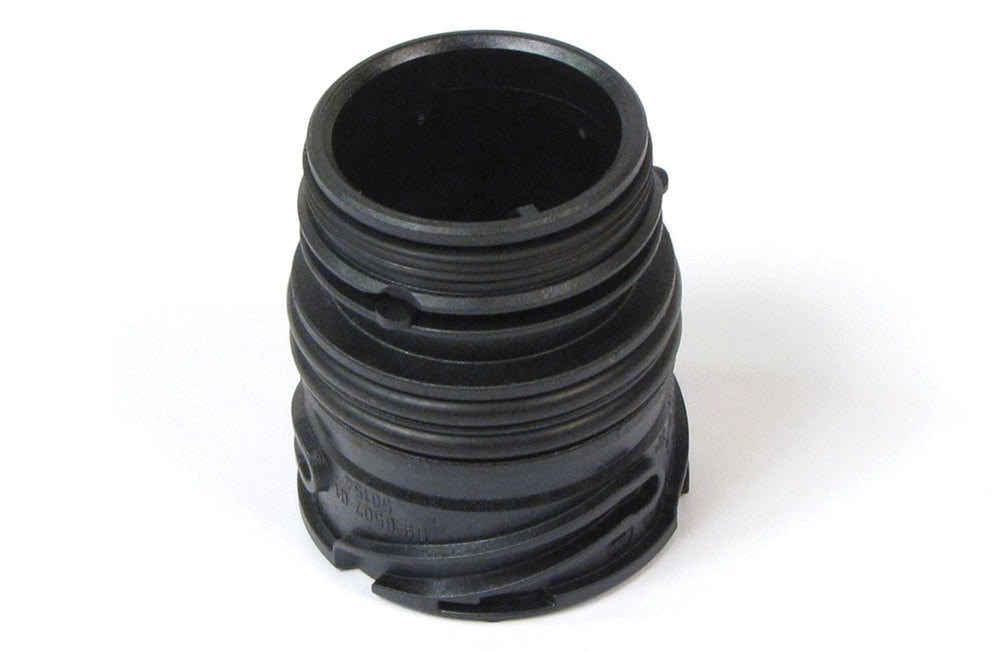

Transmission Sleeve for the ZF 6HP26 and 6HP28 six-speed automatic transmission. It is fitted within the main control valve body, where it forms the bore that houses and guides a control valve or servo piston.

Renewed during valve body or servo overhaul.

Vehicle Model Land Rover Discovery 3 2005-2009 (L319)
Land Rover Discovery 4 2010-2016 (L319)
Range Rover 2002-2012 (L322)
Range Rover Sport 2005-2013 (L320)

Fitment Notes 6 Speed Automatic (ZF 6HP26, 6HP28)
DISCOVERY 3 2005 - 2009 CLASSIC Valve Body - Main Control & Servo's 6 Speed Auto ZF 6HP26 Steptronic (V)9A999999
DISCOVERY 4 2010 - 2016 Valve Body - Main Control & Servo's 3.0 V6 Diesel,5.0L OHC SGDI NA V8 Petrol - AJ133,5.0L OHC SGDI SC V8 Petrol - AJ133,6 Speed Auto Transmission ZF 6HP28 (V)AA000001
DISCOVERY 4 2010 - 2016 Valve Body - Main Control & Servo's 3.6L V8 32V DOHC EFi Diesel Lion,6 Speed Auto ZF 6HP26 Steptronic,Cologne V6 4.0 EFI (SOHC),Lion Diesel 2.7 V6 (140KW) (V)AA000001
RANGE ROVER 2002 - 2009 Valve Body - Main Control & Servo's 6 Speed Auto ZF 6HP26 Steptronic (V)9A999999
RANGE ROVER 2010 - 2012 Valve Body - Main Control & Servo's 3.0 V6 Diesel,5.0L OHC SGDI NA V8 Petrol - AJ133,5.0L OHC SGDI SC V8 Petrol - AJ133,6 Speed Auto Transmission ZF 6HP28 (V)AA000001
RANGE ROVER 2010 - 2012 Valve Body - Main Control & Servo's 3.6L V8 32V DOHC EFi Diesel Lion,6 Speed Auto ZF 6HP26 Steptronic,Cologne V6 4.0 EFI (SOHC),Lion Diesel 2.7 V6 (140KW) (V)AA000001
RANGE ROVER 2010 - 2012 Valve Body - Main Control & Servo's 5.0L OHC SGDI NA V8 Petrol - AJ133,5.0L OHC SGDI SC V8 Petrol - AJ133,6 Speed Auto ZF 6HP26 Steptronic (V)AA000001
RANGE ROVER SPORT 2005 - 2009 Valve Body - Main Control & Servo's 6 Speed Auto ZF 6HP26 Steptronic (V)9A999999
RANGE ROVER SPORT 2010 - 2013 Valve Body - Main Control & Servo's 3.0 V6 Diesel,5.0L OHC SGDI NA V8 Petrol - AJ133,5.0L OHC SGDI SC V8 Petrol - AJ133,6 Speed Auto Transmission ZF 6HP28 (V)AA000001
RANGE ROVER SPORT 2010 - 2013 Valve Body - Main Control & Servo's 3.6L V8 32V DOHC EFi Diesel Lion,6 Speed Auto ZF 6HP26 Steptronic,Cologne V6 4.0 EFI (SOHC),Lion Diesel 2.7 V6 (140KW) (V)AA000001

Alternative Codes

TZV500010TZV500010ES

In stock 9 units

7 · Gouda 2 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the transmission sleeve used for?

The transmission sleeve fits inside the main control valve body of the ZF 6HP26 and 6HP28 six-speed automatic transmission. It forms the bore that houses and guides a control valve or servo piston. It's renewed during valve body or servo overhaul.

Which Land Rovers use this transmission sleeve?

This sleeve fits the ZF 6HP26 and 6HP28 six-speed automatics in the Discovery 3, Discovery 4, Range Rover L322, and Range Rover Sport L320. It sits in the valve body, so it applies to vehicles with these ZF transmissions.

Is fitting this sleeve a DIY job?

Fitting this sleeve is typically a specialist job. It sits inside the main control valve body, which usually has to come out and be stripped to reach it. It's normally renewed as part of a valve body or servo overhaul.
