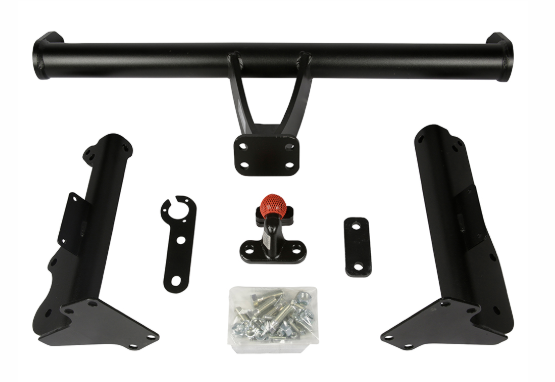

VUB503960 - Tow Bar Armature Kit by Aftermarket, BritpartBody Part Land Rover Range Rover Range Rover

VUB503960 - Tow Bar Armature Kit

- €570,00
€570,00
€570,00 - €570,00
€570,00
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Tow Bar Armature Kit is the towing subframe that mounts to the rear chassis assembly.

The subframe bolts to the vehicle's rear chassis members and carries a 50mm square armature shaft. This shaft accepts a removable, multi-height tow bar and a bike carrier, forming the structural mounting point onto which the detachable towing components locate.
Vehicle Model Range Rover 2002-2012 (L322)
Alternative Codes
VUB503960

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the tow bar armature kit on a Range Rover L322?
The tow bar armature kit is the towing subframe that bolts to the rear chassis members of the Range Rover L322. It carries a square armature shaft that accepts a removable, multi-height tow bar and a bike carrier, forming the structural mounting point for the detachable towing components.
Does this kit include the detachable tow bar?
No, this kit is the armature subframe and mounting point, not the complete detachable tow bar. It provides the chassis-mounted shaft that the removable tow bar and bike carrier slot into. If you also need the tow ball arm or electrics, those are separate items.
How is the armature kit fitted?
The armature kit bolts to the Range Rover L322's rear chassis members. It's a structural towing component, so it's typically fitted by a workshop with the vehicle raised and torqued to the manufacturer's specification. Towing electrics and the detachable bar are fitted alongside it.
