This collection covers the discrete cable and connector components within Land Rover electrical systems: the battery cables and link cables that carry starter and charging current, the transducer cables that connect pressure and temperature sensors to the vehicle management system, diagnostic interface leads that connect a scan tool to the vehicle's EOBD port, and the lugs, connectors and link cables used in electrical repair. It is a targeted specialist collection, distinct from the broader Land Rover Electrical Parts category which covers wiring looms, relays, sensors and control modules. The parts here are for the workshop engineer and the technically competent owner who needs a specific cable or connector, not a complete loom.

What is in this collection

Battery cables and link cables

Battery cables connect the battery terminals to the starter motor, earth points and the main fuse box. On Land Rover and Range Rover models, the positive main cable runs from the battery positive terminal to the starter motor solenoid and fuse box, while the negative cable provides the main earth path to the body and engine block. Battery cables on older Defender and Discovery models are exposed to significant vibration and heat cycling, and the cable insulation and terminal crimps degrade over time, causing high-resistance faults and unreliable starting. Link cables are shorter cross-connections used within the battery earth circuit or between dual battery installations, common on Defenders fitted with auxiliary power or winch systems.

Diagnostic cables and leads

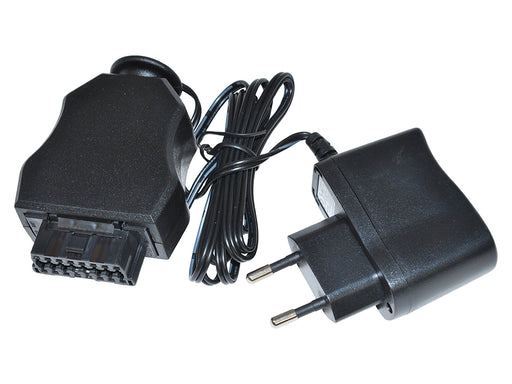

Diagnostic cables connect a scan tool or laptop interface to the vehicle's EOBD (European On-Board Diagnostics) port. Land Rover and Range Rover models built from 2001 onwards are EOBD-compliant, with the diagnostic port typically located in the driver's footwell. The physical cable connects the scan tool interface unit to this port and must match the interface unit's connector type. Specialist diagnostic leads for specific Land Rover systems, including transducer measurement leads for sensor circuit testing, are also listed within this collection. The scan tools and interface units themselves sit in Workshop Tools. Using a correctly rated diagnostic cable with a quality interface reduces the risk of data errors during fault code reading and ECU programming.

Transducer cables

Transducer cables connect pressure and temperature transducers to the vehicle management system. On Land Rover diesel engines including the 300Tdi, Td5, 2.4 TDCi and TDV6, coolant temperature, oil pressure and boost pressure transducers feed data to the ECU. A degraded transducer cable introduces resistance into the signal circuit, causing the ECU to receive incorrect sensor readings. This can produce fault codes for sensor range or circuit faults even when the sensor itself is functional. Transducer cables are short, loom-attached leads and are typically replaced when the transducer is renewed or when the cable insulation shows heat damage.

Connectors, lugs and link hardware

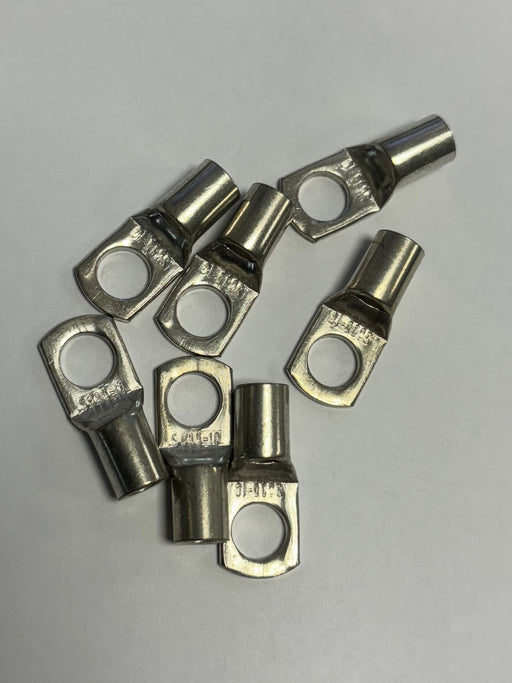

Cable lugs are crimped or soldered terminal fittings used at battery posts and earth strap connections. Corroded or loose lugs are a leading cause of poor earth connections on older Land Rover models, producing intermittent electrical faults across multiple systems simultaneously. Wiring connectors and inline connectors are used in harness repair to join or extend sections of wiring without replacing the full loom. These components are selected by cable cross-section area (measured in square millimetres) and connector pin count.

Fitment and compatibility

Battery cable fitment depends on battery size, terminal post position (positive left or positive right), and cable routing within the engine bay. For Defender and Series models, the battery is typically mounted in the engine bay, and cable routing varies between 90 and 110 body variants and between engine types. For Discovery 3 and 4, Range Rover L322 and Sport, the battery is mounted in the boot or under a seat, which affects cable length significantly. Always confirm cable length, terminal type (top-post or side-post) and cable cross-section against your current installation before ordering.

Diagnostic cable compatibility is determined by the scan tool interface unit and the vehicle EOBD port. Most modern Land Rover diagnostic software uses a standard EOBD OBD-II shaped physical port, but proprietary Land Rover systems such as IDS (Integrated Diagnostic System) and SDD (Symptom Driven Diagnostics) require a VCI (Vehicle Communications Interface) unit. If the cable is intended for use with a specific interface, confirm the connector format matches before purchase. The Land Rover parts catalogues include wiring diagrams that show transducer circuit routing for individual models, which is useful when tracing a signal fault before ordering a replacement cable. For known fault codes, the Land Rover fault code index lists circuit-related codes and which sensor or transducer circuit they typically point to.

Fitting notes

When replacing battery cables, disconnect the negative terminal first and reconnect it last to prevent short circuit. Replace the terminal lug if the existing lug shows green corrosion, cracked insulation at the crimp point, or physical damage to the terminal post contact. On Defender models, inspect the main earth strap from the engine block to the body as a matter of course when replacing battery cables, since poor earth paths cause a disproportionate number of electrical faults on this platform. After fitting, apply petroleum jelly or a battery terminal protector spray to the terminal post and lug contact faces to slow corrosion.

For transducer cables, route replacements following the original path and away from heat sources including the exhaust manifold and turbo. Secure with cable clips at the original mounting points to prevent vibration-induced chafing against the engine block or adjacent metal surfaces.
