Gearbox and transfer box parts for Land Rover and Range Rover, covering ZF automatic units, manual gearboxes, transfer cases, and the seals, bearings, and fluids that keep them running. Stocked across our Dutch warehouse network for EU dispatch, with brands including SKF, Corteco, and Timken.
Layshaft Gear - 5th Speed is the 5th-speed gear carried on the layshaft (countershaft) within the manual gearbox gear train. It meshes with the ma...
View full detailsBush gear change
Hi/Lo Range Gear is a range gear within the LT230 transfer box. The transfer box splits drive from the gearbox to the front and rear axles and pro...
View full detailsLayshaft Gear - 1st Speed, part of the manual gearbox layshaft (cluster) gear train. Mounted on the layshaft, this gear meshes with the first-spee...
View full detailsGearchange Bracket for the ZF automatic transmission. The bracket supports the gearchange (selector) linkage on the ZF automatic gearbox, locating...
View full detailsGear
Mainshaft First Gear for the LT77 five-speed manual gearbox. It is the first-speed driven gear on the mainshaft, meshing with its layshaft gear to ...
View full detailsSynchro Assembly for third and fourth gears in the LT95 four-speed gearbox. This synchroniser unit matches the shaft and gear speeds as 3rd or 4th...
View full detailsGear Lever Assembly for the LT95 4-speed gearbox. The main gear-change lever the driver operates to select gears. It mounts to the gearbox and act...
View full detailsThrust Washer
Reverse Selector Fork for the Land Rover Series IIA and Series III 4-speed main gearbox, Suffix A build. This fork engages and disengages reverse ...
View full detailsAutomatic Transmission Fluid for ZF 6HP Series Transmissions, supplied in a 1-litre bottle. This fluid is formulated from a blend of hydrocracked ...
View full detailsTransmission Extension Housing which bolts to the rear of the transmission and encloses the output shaft. It provides the mounting point at the re...
View full detailsAuxiliary Battery Module for the automatic transmission control circuit, providing the backup power supply for the emergency park engagement functi...
View full detailsTransmission Control Module is the electronic control unit that governs the ZF 9HP nine-speed automatic gearbox. It controls gear selection, shift ...
View full detailsTransmission Extension Housing supplied with its mounting insulator, part of the transmission mounting assembly. The housing bolts to the rear of ...
View full detailsOutput Shaft Oil Seal seals the transmission output shaft where it exits the case on the ZF 9HP48 / 9HP50 nine-speed automatic gearbox (all-wheel-d...
View full detailsTransmission Oil Pan for the ZF 8HP eight-speed automatic transmission. It bolts to the underside of the transmission case and retains the automati...
View full detailsTransmission Fluid is the specified fluid for the electronically controlled all-wheel-drive coupling (Haldex-type) used on transverse-engine models...
View full detailsGear Lever Knob for the automatic transmission selector. It fits onto the gear lever of the six-speed automatic transmission, forming the hand gri...
View full detailsTorque Converter Oil Seal seals the front of the ZF 9HP nine-speed automatic transmission where the torque converter hub enters the pump housing. I...
View full detailsPower Transfer Unit Seal is an oil seal for the Power Transfer Unit (PTU) on transverse all-wheel-drive models. The PTU takes drive from the trans...
View full detailsAutomatic Transmission Fluid (ATF) for the automatic gearbox and power steering circuit. Specified as the transmission and power steering fluid to...
View full detailsTransmission Oil, 1 litre. Hydraulic fluid specified for the automatic transmission and power steering system. Maintains the hydraulic pressure an...
View full detailsOutput Shaft Oil Seal for the ZF 8HP eight-speed automatic transmission. Seals the transmission output shaft where it exits the gearbox housing, p...
View full detailsTransmission Oil - Hypoid is a hypoid gear oil for the Power Transfer Unit (PTU) / transfer box. It lubricates the hypoid gearset that sends drive...

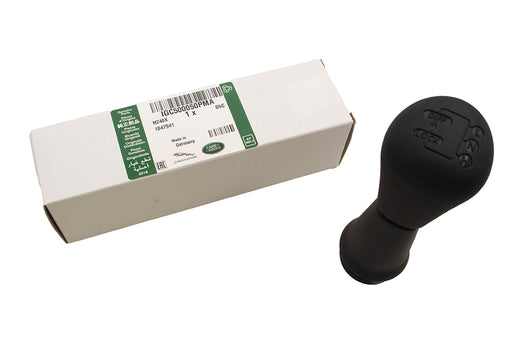

View full detailsGear Change Lever Knob for the transfer box gear change lever. The knob fits to the top of the transfer lever and forms the hand grip used to sele...
View full detailsTransmission Oil supplied in a 1 litre container. This fluid lubricates the manual gearbox and is also specified for the power-steering hydraulic ...
View full detailsOil Seal for the LT230 transfer box input shaft. Part of the transfer box gear train. The seal fits around the rotating input shaft where it enter...
View full detailsMainshaft Bearing supports the mainshaft within the LT230 transfer box, carrying the shaft's rotational loads and keeping it running true as drive ...
View full detailsDifferential Thrust Washer for the LT230 transfer box centre differential. It bears against the differential gears within the centre differential,...
View full detailsGear Knob - gear lever knob for the R380 5-speed manual gearbox. Threads onto the gearchange lever, forming the driver's hand grip and gear-select...
View full detailsFlanged Nut - M10 flanged fastener. The integral flange spreads the clamping load over a wider area and resists loosening under vibration, removin...
View full detailsTransmission Sleeve for the ZF 6HP26 and 6HP28 six-speed automatic transmission. It is fitted within the main control valve body, where it forms th...
View full detailsOil Pump Oil Seal for the ZF 6HP26 and 6HP28 six-speed automatic transmission. It seals the oil pump hub at the front of the transmission, where t...
View full detailsOil Seal for the R380 manual gearbox extension case (rear/tail housing). It seals the output shaft where it exits the extension housing, retaining...
View full detailsOil Temperature Switch mounted on the automatic gearbox oil cooler, within the transmission cooling circuit. The switch senses transmission fluid ...

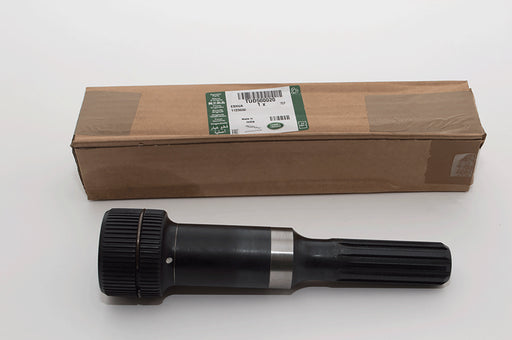

View full detailsOutput Shaft - MT82 6-Speed Manual Gearbox. The output shaft is located at the rear of the MT82 transmission housing and transmits rotational driv...
View full detailsGearbox Seal - MT82 Output Shaft for the MT82 six-speed manual transmission. This oil seal fits at the output shaft of the MT82 gearbox, sealing t...

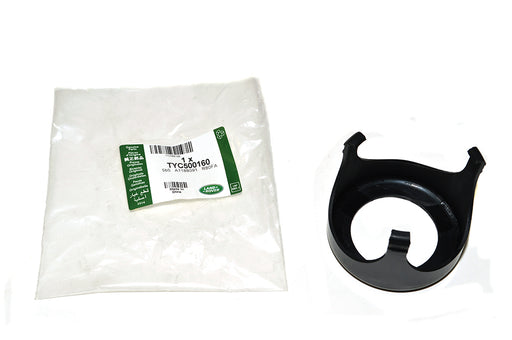

View full detailsRetaining Clip for the output shaft oil seal on the MT82 6-speed manual gearbox. The clip locates and secures the oil seal within the gearbox hous...
View full detailsTransmission Oil Pan - fluid pan for the ZF 6HP26 / 6HP28 six-speed automatic transmission, forming the base of the transmission casing and holding...
View full detailsBearing for 2ND Gear Suffix H Onwards and 3RD Gear On - Freelander 1
High Range Intermediate Gear for the LT95 four-speed gearbox with integral transfer case, as used behind the V8 engine. The gear is carried on the...
View full detailsShim 1.65mm for Layshaft Speed - V8 4
Retainer Oil Seal On Output Housing
Sprocket Timing
Gear Selector Kit for the manual gearbox, covering the internal gear-selection mechanism that engages and disengages the gear ratios. The selector...
View full detailsThrust Washer for the LT95 four-speed gearbox, 3.75mm thickness. This selective-thickness washer sets the end-float of the intermediate gear.
Category Overview
Every Land Rover and Range Rover uses a two-part driveline: a main gearbox that handles gear ratios and torque delivery, and a transfer box that splits drive between the front and rear axles for the brand's 4x4 traction. Both are serviceable assemblies and both are made up of parts that wear, leak, or fail individually long before the unit itself needs replacing. This collection covers the seals, bearings, synchros, gaskets, fluids, and rebuild components for the gearboxes and transfer cases fitted across the Defender, Discovery, Range Rover, Freelander, and Series ranges.
For most owners the right approach is component replacement, not unit replacement. A leaking output seal, a worn bearing, or contaminated fluid are repairable faults. Knowing which fault you have, and which part fits your specific gearbox or transfer case, is the difference between a straightforward fix and an expensive misdiagnosis.
ZF Automatic GearboxesModern Land Rover and Range Rover models run almost exclusively on ZF automatic transmissions. The ZF 6HP26 sits in the Range Rover L322, Range Rover Sport L320, and Discovery 3 and 4. The ZF 8HP series followed it across the Range Rover L405, Range Rover Sport L494, Range Rover L460, Range Rover Sport L461, and Discovery 5.
These gearboxes are precision hydraulic-mechatronic units. The valve body, torque converter, and electronic control module are the most common failure points, usually triggered by degraded fluid rather than mechanical wear. Symptoms such as delayed engagement, gear hunting, or harsh shifting on a warm gearbox typically point to valve body or fluid condition, not to a failing transmission.
For service work on these units, ZF specifies ZF Lifeguard Fluid 6 (6HP series) or ZF Lifeguard Fluid 8 (8HP series). The two fluids are not interchangeable. ZF's official position on 8HP service intervals is "fill for life", but independent transmission specialists across Europe recommend a precautionary fluid and pan-filter service at around 80,000 to 120,000 km on vehicles used for towing, urban driving, or high-mileage motorway work. For the technical detail on fluid specifications and service requirements, ZF Aftermarket publishes its own transmission oil reference guide.
Confirm the ZF gearbox code on your vehicle before ordering fluid or service kits. ZF Lifeguard Fluid 6 and Lifeguard Fluid 8 are different specifications, and using the wrong grade is the most common cause of valve body wear after a DIY service.
Manual gearboxes are less common on current production but are still the dominant powertrain across the Classic Defender, early Discovery, Freelander 1, and the Series range. The R380 was the long-running five-speed unit fitted to the Discovery 1 (post-200Tdi production), Discovery 2, and Classic Defender from the 300Tdi through to early Td5. The MT82 six-speed replaced it on the Defender 2.4 and 2.2 TDCi Puma. Earlier production used the LT77 (Discovery 1 200Tdi era) and the LT76 and LT95 on Series 2/3 vehicles.
These units fail in predictable ways. Synchroniser rings on second and third gear wear first. Input shaft and lay shaft bearings degrade with age and oil contamination. Selector linkages and detent springs cause the symptoms most often misdiagnosed as a gearbox fault. Reverse idler gear chatter is common on R380 units past 240,000 km.
For most manual-gearbox owners, parts-level repair is straightforward and rebuild kits are available for the R380, LT77, and MT82. Specific Freelander 1 parts (IB5 manual) sit under the Freelander 1 collection. Series 2/3 gearbox parts have their own fitment requirements covered under the Series 2 and 3 collection.
Transfer BoxesThe transfer box carries as much load as the gearbox and is often the part that goes ignored until it fails. The LT230 is the dominant transfer case across the Classic Defender, Discovery 1, Discovery 2, Range Rover Classic, and P38. It uses gear-drive between input and output shafts and a chain-drive system to the front output. The Discovery 3 and Discovery 4 use a chain-drive Magna Steyr unit with an electronic shift system. Modern Range Rover and Range Rover Sport models on the L405, L494, L460, and L461 platforms use a ZF-integrated transfer case as part of the transmission assembly.
Common failures are output shaft seal leaks, chain stretch on chain-drive units (Magna Steyr and modern ZF), viscous coupling failure on units fitted to early Discovery 2 and Range Rover P38, and selector motor failure on electronic-shift cases.
Transfer box fluid is not the same specification as gearbox fluid on most Land Rover and Range Rover units. The LT230 takes EP90 (or the Land Rover-specified MTF94 on later units), and the Magna Steyr unit on Discovery 3 and 4 takes a specific ATF spec. Confirm before ordering.
Most gearbox parts returns are caused by ordering errors at the buying stage rather than parts faults. The following are the most common we see across the Land Rover and Range Rover range.
For parts that overlap with the clutch system on manual gearboxes, see the Land Rover clutch parts collection. For driveline parts forward and aft of the gearbox, see the driveshaft and propshaft parts collection.
Technical GuidesIn-depth diagnostic and component guides for the gearbox-adjacent failure modes that come up most often on Land Rover and Range Rover models.
Technical breakdown of the L494's 3.0 TDV6 timing chain issues, air suspension faults, and ZF 8HP wear patterns. Covers what fails, why it fails, and which parts the workshop will need.
Range Rover Sport L494 ZF 8HP guideHow to tell drivetrain noise apart from gearbox or transfer box noise, and which parts to inspect before ordering. Covers Discovery 4, Freelander 2, and Series 3 driveline symptoms.
Land Rover driveline diagnosis guideClutch faults are routinely misdiagnosed as gearbox faults due to overlapping symptoms. This guide explains how to identify the real fault before replacing parts.
Land Rover clutch diagnosis guideThe gearbox controls gear ratios and torque delivery from the engine; the transfer box splits drive between the front and rear axles for 4x4 traction and also provides the low-range gearing on Defender and Discovery models. Both are serviceable assemblies and both fail in distinct ways. Drivetrain symptoms can come from either, which is why most Land Rover gearbox parts returns are caused by mis-diagnosis rather than mis-fit.
ZF 6HP26 transmissions (fitted to Range Rover L322, Range Rover Sport L320, Discovery 3, and Discovery 4) take ZF Lifeguard Fluid 6. ZF 8HP transmissions (fitted to Range Rover L405, L460, Range Rover Sport L494 and L461, and Discovery 5) take ZF Lifeguard Fluid 8. The two fluids are not interchangeable. Confirm the gearbox code stamped on the casing before ordering.
ZF's official position on the 8HP series is fill-for-life. In practice, independent transmission specialists across Europe recommend a precautionary fluid and pan-filter service at around 80,000 to 120,000 km, particularly on vehicles used for towing, frequent urban driving, or high-mileage motorway work. The 6HP26 typically receives a service interval at 90,000 km. Manual gearboxes (R380, MT82, LT77) take a gear oil change at approximately 60,000 km.
The LT230, fitted to the Classic Defender, Discovery 1, Discovery 2, Range Rover Classic, and Range Rover P38, fails in three main ways: output shaft seal leaks (often caused by flange wear behind the seal), input gear bearing wear, and selector linkage faults that mimic gearbox symptoms. Most LT230 issues are repairable with component-level parts rather than a full transfer case replacement.
The R380 five-speed manual was fitted to the Discovery 1 (post-200Tdi), Discovery 2, and Classic Defender from the 300Tdi era through to early Td5 production. The LT77 preceded the R380 on the Discovery 1 200Tdi. The MT82 six-speed replaced the R380 on the Defender 2.4 and 2.2 TDCi Puma. Rebuild kits and individual components for all three are stocked in this collection.
Yes. Most Land Rover transmission service jobs touch both units, particularly fluid changes, seal replacements, and bearing kits. Ordering both at the same time reduces vehicle downtime and is the most common workshop order pattern.
