Replacement parts for the Range Rover Velar L560, built at Solihull from 2017 on the JLR iQ[Al] aluminium platform. Covers all Ingenium diesel and petrol variants, MHEV, PHEV, and ZF 8-speed automatic configurations.
Relay is a 4-pin electromechanical switching relay used within the vehicle's electrical system. A low-current control signal energises the 12V coi...

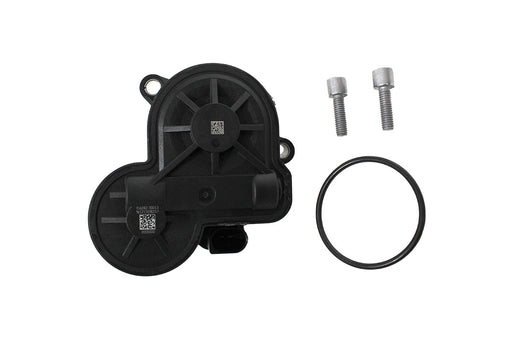

View full detailsElectronic Parking Brake Actuator for the left-hand rear brake caliper, part of the electronic parking brake (EPB) system. The actuator is a self-...
View full detailsCamshaft Sprocket is a timing-drive gear in the valve train of the 2.0L Ingenium diesel engine (AJ200D). Mounted on the end of the camshaft, it is...

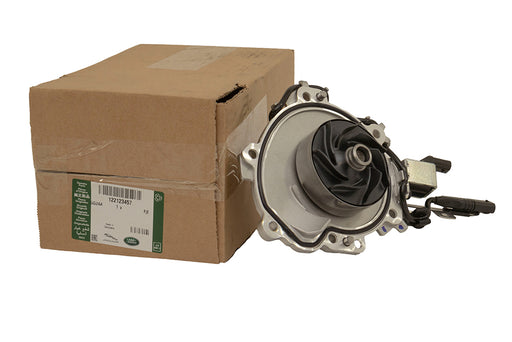

View full detailsWater Pump for the 2.0L Ingenium diesel engine (AJ20D4), part of the engine cooling circuit. Belt- or chain-driven from the engine, the pump circu...
View full detailsWater Pump for the 2.0L Ingenium diesel engine (AJ20D4), part of the engine cooling circuit. Belt- or chain-driven from the engine, the pump circu...
View full detailsWater Pump for the 2.0L Ingenium four-cylinder engine (AJ200), part of the engine cooling circuit. Driven from the engine, the pump circulates coo...
View full detailsWater Pump for the 2.0L Ingenium four-cylinder engine (AJ200), part of the engine cooling circuit. Driven from the engine, the pump circulates coo...
View full detailsWater Pump for the 2.0L Ingenium diesel engine (AJ20D4), part of the engine cooling circuit. Belt- or chain-driven from the engine, the pump circu...
View full detailsCap - Filler
Fuel Tank Filler Cap for the fuel filler system on petrol and plug-in hybrid (PHEV) applications. Threads onto the filler neck at the top of the f...

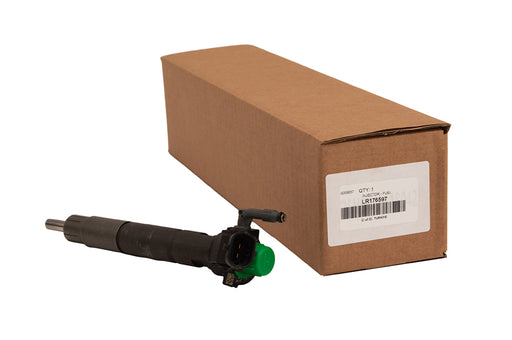

View full detailsFuel Injector - high-pressure common-rail injector for the 2.0L AJ21D4 Ingenium diesel, mid power output. The injector is clamped into the cylinde...

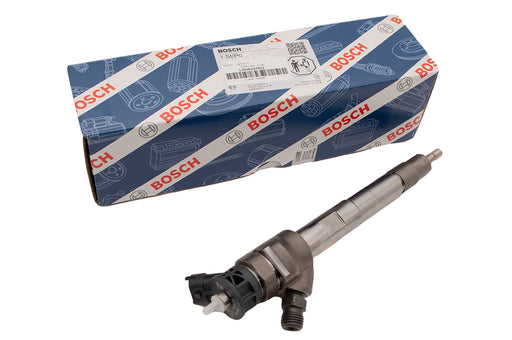

View full detailsFuel Injector for the 2.0L I4 Ingenium (AJ200) diesel engine, part of the high-pressure common rail fuel injection system. The injector is clamped...
View full detailsFuel Injector for the 2.0L AJ200 (Ingenium) four-cylinder diesel engine. The injector delivers a metered, high-pressure spray of diesel into the c...
View full detailsTurbocharger for the 2.0L AJ200 / AJ20D4 four-cylinder diesel engine. It sits in the forced-induction circuit between the exhaust manifold and the...
View full detailsRear Crankshaft Oil Seal for the 2.0L AJ200-series four-cylinder engine, in both petrol and diesel applications. Seals the rear of the crankshaft ...
View full detailsEGR Inlet Gasket for the exhaust gas recirculation (EGR) system of the 2.0L AJ200-series four-cylinder diesel engine. Seals the inlet joint of the...
View full detailsBattery A wet-cell (flooded) lead-acid battery of non-spillable construction, sealed against electrolyte leakage in normal operating positions. It...
View full detailsPump - Oil & Vacuum
Timing Chain Kit for the 2.0L AJ200P Ingenium petrol engine. The timing drive is located at the front of the engine behind the timing cover and dr...
View full detailsTiming Chain Fitting Kit for the 2.0L Ingenium AJ200D (204DTD) diesel engine. Supplies the replacement hardware used when fitting the timing chain...
View full detailsTiming Chain Kit - Ingenium 4-Cyl
Fluid Change Kit for the ZF 8HP eight-speed automatic transmission. Supplied for a complete transmission fluid service. The kit contains the sump ...
View full detailsEngine timing tool kit for the 2.0L Ingenium diesel engine (AJ200D / 204DT / 204DTD). Used to lock the engine at the timed position so that the ti...
View full detailsTiming Chain Kit for the 2.0L Ingenium AJ200D (204DTD) diesel engine. Contains the timing chains, chain guides and chain tensioners that drive the...
View full detailsTiming Chain Kit for the 2.0L Ingenium AJ200D (204DTD) diesel engine. Contains the timing chains, chain guides and chain tensioners that drive the...
View full detailsBattery - AGM Non-Spillable for the vehicle electrical system. It is a sealed lead-acid battery built with Absorbent Glass Mat (AGM) technology, in...
View full detailsWater Pump for the 2.0L Ingenium four-cylinder engine (AJ200), part of the engine cooling circuit. Driven from the engine, the pump circulates coo...
View full detailsLocking Wheel Nut Kit for alloy wheels. The locking wheel nuts replace standard wheel nuts to provide theft resistance for the road wheels; each n...
View full detailsCoolant Temperature Sensor in the engine cooling circuit. This sensor monitors coolant temperature and transmits a signal to the engine management...
View full detailsRelay, a 70A 4-pin grey mini power relay. It provides high-current make-and-break switching for a heavy electrical load, letting a low-current con...
View full detailsBrake Caliper - rear left-hand unit, 17-inch brake size. The caliper houses the hydraulic pistons that clamp the brake pads against the rear disc u...
View full detailsBrake Caliper - rear right-hand unit, 17-inch brake size. The caliper houses the hydraulic pistons that clamp the brake pads against the rear disc ...
View full detailsLazer ST4 Evolution LED Spotlight - a compact four-LED auxiliary driving lamp producing a controlled long-range beam for forward illumination. The...
View full detailsCANNY is an advanced CAN interface developed by Lazer Lamps that enables the seamless installation of auxiliary lights on modern vehicles equipped ...
View full detailsCANNY is an advanced CAN interface developed by Lazer Lamps that enables the seamless installation of auxiliary lights on selected vehicles utilizi...
View full detailsDrive Belt Tensioner for the accessory drive belt system of the 2.0L I4 Ingenium (AJ200 / AJ20) petrol and diesel engine. This is a double belt te...
View full detailsBattery - 12V lead-acid battery of flooded, non-spillable construction, for the vehicle low-voltage electrical supply. Non-spillable construction ...
View full detailsTiming Chain Kit for the valve timing drive of the Ingenium 2.0L 4-cylinder diesel engine (AJ200 series). The timing chain drive synchronises cran...
View full detailsValve - Control
Turbocharger - exhaust gas driven turbocharger for the 2.0L I4 Ingenium diesel engine, forming the boost stage of the air induction and exhaust sys...
View full detailsLocking Wheel Nut Kit for alloy wheels. The locking wheel nuts replace standard wheel nuts to provide theft resistance for the road wheels; each n...
View full detailsSynthetic Winch Rope - 10mm x 24m - 10,000 lbs for 4x4 winch recovery. This synthetic fibre winch rope is rated to 10,000 lbs (approx. 4,536 kg) b...
View full detailsHaldex Fluid is the specific oil for the Haldex all-wheel-drive coupling, supplied in a 300 ml bottle. The Haldex coupling sits ahead of the rear ...
View full detailsThe Velar L560 has been produced with a wider engine range than most single-generation Land Rover models, and correct part fitment depends on knowing your engine code and model year. The pre-facelift range ran from 2017 to 2020 and included the Ingenium D180 and D240 four-cylinder diesels, the twin-turbo D300 and D275 V6 diesels, the P250 and P300 four-cylinder petrols, the P340 and P380 supercharged V6 petrols, and the limited SVAutobiography Dynamic with the 5.0-litre V8. From September 2020, the engine range was revised. The D200 replaced the D180 with mild hybrid assistance, the P400 Ingenium turbocharged inline-six replaced the P380 V6, and the P400e PHEV was introduced, combining a 2.0-litre Ingenium petrol unit with a 106 kW permanent magnet synchronous motor and a 17.1 kWh lithium-ion battery. A mild exterior and infotainment refresh was applied from 2023. Fitment differences exist between pre-facelift, post-September-2020, and post-2023 vehicles, particularly for engine ancillaries, emissions components, and hybrid system parts.
All four-cylinder variants use the ZF 8HP45 eight-speed automatic gearbox. All six-cylinder variants use the heavier-duty ZF 8HP70 unit. Gearbox-related parts must be matched to the correct variant.
Engine specifications and ZF 8HP transmission variant assignments confirmed against ZF Group 8HP-series technical data and JLR engine specifications as documented in the Range Rover Velar L560 launch technical record.
The Velar L560 shares its iQ[Al] D7a aluminium platform with the Jaguar F-Pace, Jaguar XF (X260), and Jaguar XE. This means a number of underbody, suspension geometry, and fastener components are shared across those vehicles. Workshops sourcing parts for the Velar may find that certain subframe components, suspension bushings, and general hardware are catalogued across both JLR and Jaguar parts systems. This does not apply to powertrain-specific or model-specific body parts. Always confirm part numbers against the Velar L560 catalogue before ordering on the basis of platform compatibility alone.
Fitment ConfirmationThe Velar L560's broad engine and drivetrain range means that year-of-manufacture alone is not sufficient to confirm fitment for many parts. The Vehicle Identification Number (VIN) contains the production sequence, engine code, and build specification and is the most reliable way to confirm the correct part for your vehicle. The VIN is located on the windscreen lower edge (driver's side on most LHD markets, passenger's side on RHD markets) and on the vehicle's identification plate in the engine bay. If you are unsure whether a listed part fits your specific Velar, contact Budget Parts with your VIN before ordering.
Related CollectionsFor parts covering other Range Rover generations or the broader Range Rover family, see Range Rover parts.
For Velar-adjacent models built on the same generation platform, the Range Rover Evoque L538 parts collection covers the previous Evoque generation and the Range Rover Sport L494 parts collection covers the Sport generation sharing the same era of Ingenium engine development.
Technical GuidesThe following article from the Budget Parts technical library covers the Velar L560 platform, engines, and ownership considerations relevant to parts selection.
A technical reference covering the iQ[Al] D7a platform, Ingenium engine range, AWD systems, and the service considerations that affect accurate parts selection on the Velar L560.
Range Rover Velar L560 guide →The Range Rover Velar L560 entered production in 2017 and is the only current generation of the Velar. A mild facelift was introduced in 2023, primarily affecting exterior styling and the infotainment system. A second-generation Velar on a new electric-only platform is announced for production from 2027 and is a separate vehicle entirely. Parts on this page cover the L560 generation only, from 2017 to present.
The engine code is stamped on the engine block and is also encoded in your VIN. For diesel variants, the main codes in service are D180 (2017 to 2020), D200 (2020 onwards, MHEV), D240 (2017 to 2020), D300 V6 (2017 to 2020), and D300 Ingenium inline-six (2020 onwards). For petrol variants, the main codes are P250, P300 (2017 to 2020), P340, P380 (2017 to 2020), P400 MHEV (2020 onwards), and P400e PHEV (2020 onwards). Engine-specific parts including timing components, injectors, and turbo ancillaries must be matched to the correct code.
Yes, in part. Both vehicles are built on the JLR iQ[Al] D7a aluminium platform, sharing the same wheelbase of 2,874 mm and common underbody architecture. This means certain suspension geometry components, subframe hardware, and general fasteners are shared across the catalogue. However, powertrain-specific parts, body panels, and model-specific electronics are not interchangeable. Workshops cross-referencing parts between the Velar and F-Pace should always verify against the Velar L560 part number before ordering.
All Velar L560 variants use a ZF 8-speed automatic transmission. Four-cylinder engines (diesel and petrol) are paired with the ZF 8HP45 unit. Six-cylinder engines, including the P380, P400, D300 V6, and D300 I6, are paired with the heavier-duty ZF 8HP70 unit. Gearbox-related parts, including oil, filter kits, solenoids, and sensors, must be matched to the correct 8HP variant for your engine.
Genuine parts carry the official Land Rover part number and are manufactured to JLR specification. OEM parts are produced by the same manufacturer that supplied the component to JLR originally, meeting the same specification without the Land Rover branding. Aftermarket parts are independently manufactured and are suitable for wear items and general maintenance where exact OEM specification is not required. All three tiers are available through Budget Parts for the Velar L560.
Use your VIN. The 17-character VIN encodes your engine code, production year, and build specification and is the most reliable way to confirm fitment before ordering. The VIN is located on the lower edge of the windscreen (driver's side on most LHD markets, passenger's side on RHD markets) and on the identification plate in the engine bay. If you need help confirming fitment, contact Budget Parts with your VIN and the part reference you are considering.
Yes. The collection includes parts relevant to the P400e PHEV (introduced September 2020) and D200 and P400 MHEV variants. These include hybrid system ancillaries, AdBlue components for diesel MHEV variants, and Ingenium engine parts common to the hybrid-equipped models. Specific high-voltage battery components are not included in this collection. Contact Budget Parts if you are sourcing parts for a specific PHEV or MHEV repair and are unsure whether a listed part applies to your variant.
