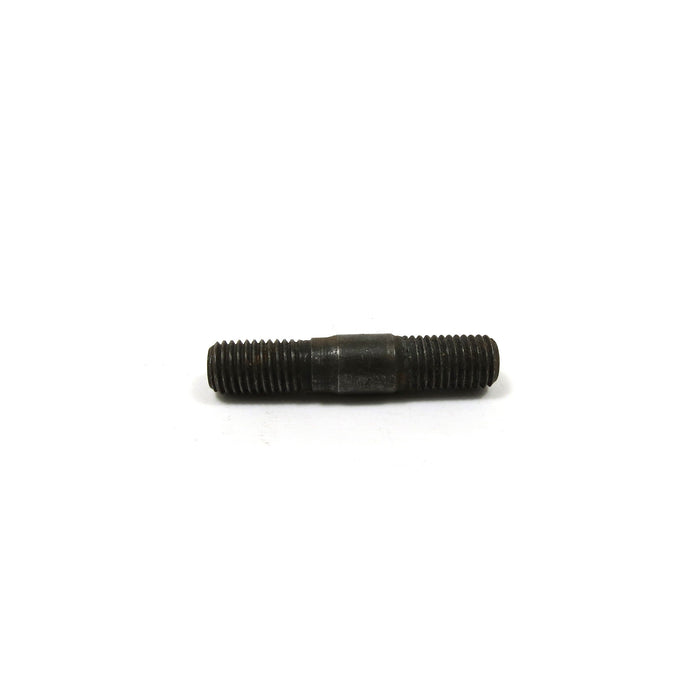

531494 - Swivel Housing Stud – 7/16 Steering or Suspension Part Land Rover Range Rover Series

531494 - Stuurhuisbout 7/16

- €3,10

€3,10

€3,10 - €3,10

€3,10

Tip: Log in to your account to unlock volume discounts on this item.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Beschrijving:
Stud 7/16

Alle productcodes / identificatiegegevens:
531494 531494 531494 531003

Modellen:
Land Rover Serie 2 en 3

Vehicle Model Land Rover Series 2 and 3

Alternative Codes

531494531003

In stock 59 units

52 · Gouda 7 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 531494 swivel housing stud for?

The 531494 swivel housing stud has a 7/16 inch BSF thread and fits the lower face of the front axle swivel housing on Land Rover Series 2 and 3. It secures the lower swivel pin bracket and steering arm to the swivel housing, clamping the lower pin and its bearing to the casting.

How many studs are needed to secure the lower swivel pin?

The lower swivel pin bracket is typically held by several of these studs rather than one, so more than one is usually needed per swivel. Order the quantity your axle uses, as they're fitted as a set. Each stud works with its matching nut to clamp the lower pivot.

Can I reuse the old swivel housing studs?

Swivel housing studs can be reused if the thread is clean and undamaged, but they're often corroded or stretched on these older axles and are worth renewing on a rebuild. This OEM stud also carries cross-reference 531003. Replace any stud that's pitted or has a damaged thread.
