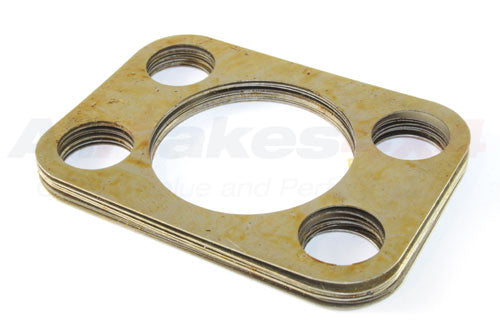

530986 - Swivel Pin Shim – .010" Steering or Suspension Part Land Rover Range Rover Defender, Series

530986 - Draaipin Vulplaat – 0.25 mm

- €1,70

€1,70

€1,70 - €1,70

€1,70

Tip: Log in to your account to unlock volume discounts on this item.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Schommelpenvulring, 0,010 inch dik, gemonteerd in het schommelpenhuis van de vooras.

De vulring wordt onder de schommelpen (fuseepen) geplaatst om de juiste voorspanning van het schommellager en de uitlijning van de pen in te stellen. Vulringen worden geselecteerd in de vereiste dikte, afzonderlijk of in combinatie, om de gespecificeerde voorspanning bij montage te bereiken.

Vehicle Model Land Rover Defender t/m 2016
Land Rover Series 2 en 3

Fitment Notes SERIE II/III — Spiebusring, 0,010", alle varianten

Alternative Codes

530986217454

In stock 93 units

74 · Gouda 19 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 530986 swivel pin shim for?

The 530986 swivel pin shim is 0.010 inch thick and fits at the front axle swivel pin housing on Land Rover Series 2 and 3. It's placed under the swivel pin to set the swivel bearing preload and pin alignment. Shims are selected by thickness on assembly to reach the specified preload.

How are swivel pin shims fitted and how many are needed?

Swivel pin shims are fitted under the swivel pin and selected by thickness, used singly or stacked, to set the correct preload. The count varies per axle and is set by trial on assembly. This 0.010 inch shim is a mid-range increment in the available thickness set.

What's the difference between the 0.010 swivel pin shim and the other thicknesses?

The difference is thickness: this is the 0.010 inch shim, with 0.005 and 0.030 inch sizes also available. They're combined to fine-tune the swivel pin preload. This shim also carries cross-reference 217454. Choose the mix of thicknesses that brings your swivel to the specified preload.
