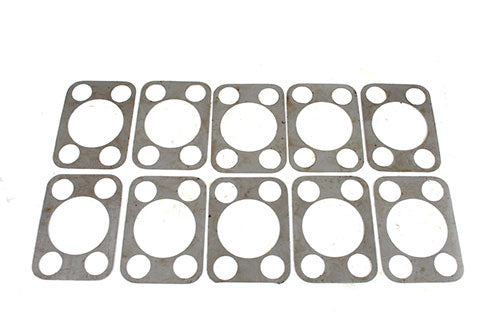

530985 - Swivel Pin Shim – .005" by EurospareSteering or Suspension Part Land Rover Range Rover Defender, Series

530985 - Vulring Draaipen – .005"

- €1,70

€1,70

€1,70 - €1,70

€1,70

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Vulring fuseepenas, 0,005" dik, gemonteerd in het fuseepenhuis van de vooras.

De vulring wordt onder de fuseepen (king pin) geplaatst om de juiste voorspanning van het fuseelager en de uitlijning van de pen in te stellen. Vulringen worden in de vereiste dikte, afzonderlijk of in combinatie, geselecteerd om de gespecificeerde voorspanning bij montage te bereiken.

Vehicle Model Land Rover Defender t/m 2016
Land Rover Series 2 en 3

Fitment Notes SERIE II/III — Binnenvulring voorste fuseepen, 0,005"

Alternative Codes

530985530985ESBR 1701

In stock 117 units

111 · Gouda 6 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 530985 swivel pin shim used for?

The 530985 swivel pin shim is 0.005 inch thick and fits at the front axle swivel pin housing on Land Rover Series 2 and 3. It sits under the swivel pin to set the swivel bearing preload and pin alignment. The right thickness is chosen on assembly to reach the specified preload.

How many swivel pin shims do I need?

Swivel pin shims are selected by thickness, used alone or stacked in combination, to set the correct preload on each swivel. The number needed varies by axle, so they're usually fitted by trial during assembly rather than to a fixed count. This 0.005 inch shim is the finest adjustment increment.

What's the difference between the 0.005, 0.010 and 0.030 swivel pin shims?

The difference is thickness: 0.005, 0.010 and 0.030 inch. They're the same shim in different sizes, combined to set the swivel pin preload precisely. The 0.005 inch shim is used for fine adjustment and the thicker shims for coarser setup. You'll often need a mix to hit the target preload.
