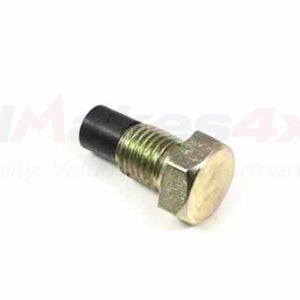

RTC4647 - Magnetic plug ZF 4-speed sump by AftermarketTransmission or Gearbox Part Land Rover Range Rover Defender, Discovery, Range Rover

RTC4647 – Magnetische carterplug – ZF Automatisch

- €15,80

€15,80

€15,80 - €15,80

€15,80

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Magnetische carterplug voor de ZF 4-traps automatische versnellingsbak.

Deze aftapplug dicht de oliepan van de versnellingsbak af op het aftappunt. De magnetische punt vangt ferromagnetische slijtagedeeltjes op die in de transmissievloeistof zweven, houdt ze weg van de bewegende delen en maakt het mogelijk om het verzamelde vuil bij elke vloeistofverversing te inspecteren.

Vehicle Model Land Rover Defender tot 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic tot 1994
Range Rover Classic 1994-2001 (P38)

Fitment Notes DEFENDER 1987-2006 — ZF 4-traps automatische versnellingsbak, magnetische carter-/aftapplug
DISCOVERY 1 1989-1998 — ZF 4-traps automatische versnellingsbak, magnetische carter-/aftapplug
RANGE ROVER CLASSIC 1986-1994 — ZF 4-traps automatische versnellingsbak, magnetische carter-/aftapplug
RANGE ROVER P38 1994-2001 — ZF 4-traps automatische versnellingsbak, magnetische carter-/aftapplug

Alternative Codes

RTC4647

In stock 3 units

1 · Gouda 2 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the RTC4647 magnetic sump plug do?

The RTC4647 is the magnetic drain plug for the ZF 4-speed automatic transmission. It seals the oil pan at the drain point, and its magnetic tip collects ferrous wear particles from the fluid, holding them clear of the moving parts. At each fluid change you can inspect the debris it has caught.

Which gearbox and vehicles does this plug fit?

The RTC4647 fits the ZF 4-speed automatic transmission used on the Defender up to 2006, Discovery 1, Range Rover Classic and Range Rover P38. It's specific to the ZF automatic, so it won't suit manual-gearbox cars or later automatic transmissions.

Can the magnetic plug be reused, or should it be replaced?

The magnetic plug itself can usually be cleaned and reused for many fluid changes; just wipe the collected debris off the magnetic tip before refitting. The sealing washer is typically replaced each time to keep the seal leak-free.

There's metal paste on the magnetic tip, is that a problem?

A light grey paste on the tip is normal, since the magnet's job is to trap fine ferrous wear from the ZF automatic transmission. Large flakes or chunks of metal usually point to internal wear that's worth investigating before it gets worse.
