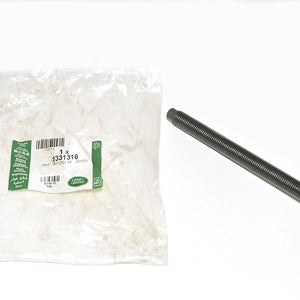

1331316 - Cylinder Head Bolt

- €4,70

€4,70

€4,70 - €4,70

€4,70

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

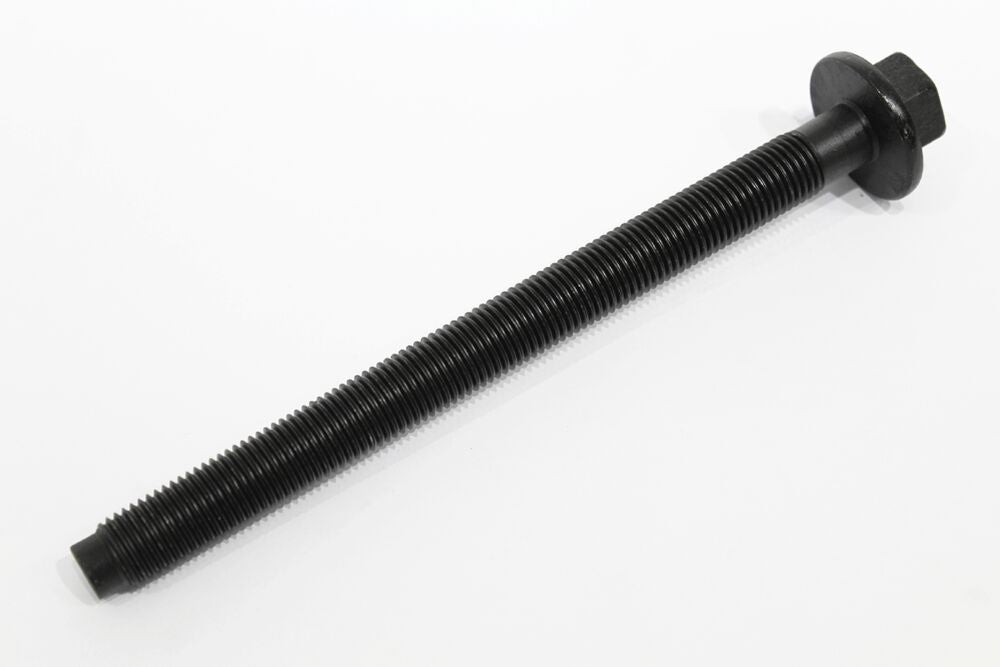

Cylinder Head Bolt for the cylinder head assembly on TDV6 and TDV8 diesel engines. The bolt secures the cylinder head to the engine block, clamping the head gasket to seal combustion pressures and the coolant and oil passages across the head-to-block joint.

Cylinder head bolts on these engines are torque-to-yield (TTY) fasteners and must be replaced whenever the cylinder head is removed - they cannot be reused after torquing to specification. Supplied as a single bolt; the quantity required per engine varies by cylinder configuration.

Vehicle Model Land Rover Discovery 3 2005-2009 (L319)
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)

Fitment Notes DISCOVERY 3 2005-2009 — 2.7 TDV6, cylinder head bolt M13x155, 8 per head, up to VIN 9A999999
DISCOVERY 4 2010-2016 — 2.7 TDV6 / 3.0 TDV6, cylinder head bolt M13x155, 8 per head, from VIN AA000001
DISCOVERY 5 2017+ — 3.0 TDV6 Gen2 (Mono/Twin Turbo), cylinder head bolt M13x155, 8 per head
RANGE ROVER L322 2002-2012 — 3.6 TDV8 (from VIN 7A000001) / 4.4 TDV8 (from BA000001), cylinder head bolt M13x155, 10 per head
RANGE ROVER L405 2013+ — 3.0 TDV6 / 4.4 TDV8, cylinder head bolt M13x155, from VIN AA000001
RANGE ROVER SPORT L320 2005-2013 — 2.7 TDV6 (8/head) / 3.6 TDV8 (10/head) / 3.0 TDV6, cylinder head bolt M13x155
RANGE ROVER SPORT L494 2014+ — 3.0 TDV6 / 4.4 TDV8, cylinder head bolt M13x155, from VIN AA000001

Alternative Codes

1331316

In stock 32 units

16 · Gouda 16 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the cylinder head bolt do on a TDV6 or TDV8 engine?

The cylinder head bolt clamps the cylinder head to the block on Land Rover TDV6 and TDV8 diesel engines, holding the head gasket tight to seal combustion pressure, coolant and oil passages. It's a torque-to-yield bolt sized M13 x 155 and works as a full set across the head.

How many cylinder head bolts are needed per engine?

It depends on the engine. The 2.7 and 3.0 TDV6 use 8 cylinder head bolts per head, while the 3.6 and 4.4 TDV8 use 10 per head. Each bolt is supplied individually. These are V engines with two heads, so a full job typically needs twice the per-head figure.

Can cylinder head bolts be reused or must they be replaced?

Cylinder head bolts on these TDV6 and TDV8 engines must be replaced, not reused. They're torque-to-yield fasteners that stretch permanently when torqued, so a used bolt can't hold the correct clamping load and risks head gasket failure. Fit new bolts whenever the cylinder head is removed.

Which Land Rover models does this cylinder head bolt fit?

This cylinder head bolt fits the Discovery 3, Discovery 4 and Discovery 5, Range Rover L322 and L405, and Range Rover Sport L320 and L494 with TDV6 or TDV8 diesel engines. Check your VIN against the engine variant, as the bolt count differs between the V6 and V8.
