SHK3163 - Swivel Housing Kit (Including Ball) - Discovery 1 RRC Steering or Suspension Part Land Rover Range Rover Discovery, Range Rover

SHK3163 - Swivel Housing Kit – With Ball

- €380,00

€380,00

€380,00 - €380,00

€380,00

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Swivel Housing Kit providing a complete overhaul of the front axle swivel assembly for one side, supplied complete with the swivel housing ball.

The swivel housing is the spherical member on the front axle through which the drive shaft passes and on which the steering swivel pivots; its oil seals retain the swivel lubricant. This kit is built for the 12mm seal configuration.

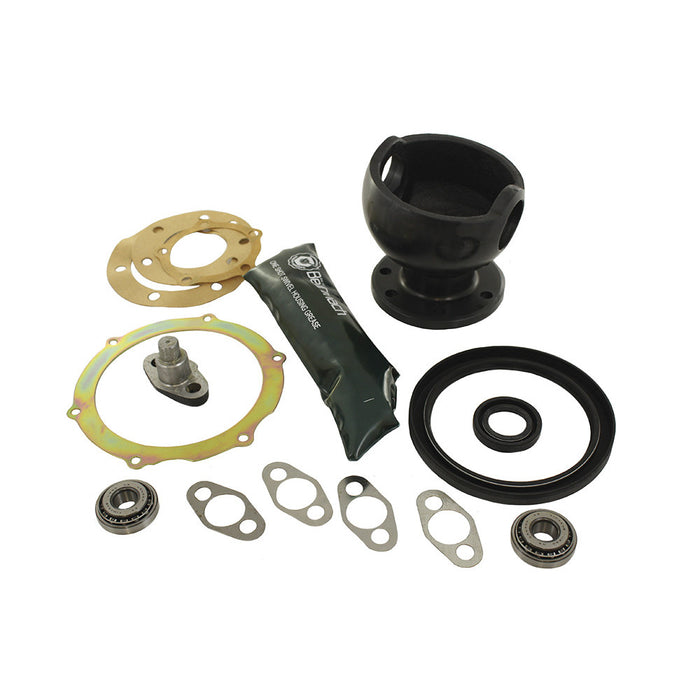

The kit comprises the swivel housing ball, upper swivel pin, swivel pin bearing, oil seals, gasket, joint washers, retaining plate, shims and a sachet of swivel housing grease. Each kit covers one side.

Vehicle Model Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes RANGE ROVER CLASSIC 1985-1994 — swivel housing kit with ball, 12mm seals, to VIN JA624516
DISCOVERY 1 1989-1998 — swivel housing kit with ball, 12mm seals, to VIN JA32850

Alternative Codes

BK 0150SHK3163DA3163GBK0150

In stock 3 units

3 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Swivel Housing Kit with Ball (BK 0150) used for?

The Swivel Housing Kit with Ball overhauls the front axle swivel assembly on one side. The swivel housing is the spherical member the drive shaft passes through and the steering swivel pivots on, and its oil seals retain the swivel oil. This kit covers the 12mm seal configuration.

What's included and how many kits do I need for both sides?

The kit includes the swivel housing ball, upper swivel pin, swivel pin bearing, oil seals, gasket, joint washers, retaining plate, shims and swivel grease. Each kit covers one front swivel, so you'll need two to do both sides of the axle.

Which vehicles does this 12mm seal swivel kit fit?

This kit fits the Range Rover Classic (up to 1994) to VIN JA624516 and the Discovery 1 (1989-1998) to VIN JA32850, both with 12mm swivel oil seals. Check your VIN against these breaks, since later chassis typically use a different seal size.

What are the signs a swivel housing needs overhauling?

A swivel housing typically needs overhauling when oil weeps from the swivel seals, the steering feels notchy, or pitting shows on the chrome ball. Left unattended, a worn swivel loses lubricant and can go on to damage the CV joint and stub axle bearings.

What's the difference between the 'with ball' kit and one without the ball?

The 'with ball' kit includes a new swivel housing ball, so you're not relying on the old one. Kits without the ball reuse the existing housing ball and renew only the seals, pins and bearings. Choose this version if your ball is pitted or corroded.
