GA3169 - Swivel Kit
Original price
-
Original price
€350,00
Original price
€350,00
€350,00
-
€350,00
Current price
€350,00
Aftermarket: Quality alternative.
This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Swivel Kit - overhaul kit for one front swivel housing assembly. The swivel housing is the steering pivot at the outer end of the front axle case: it carries the stub axle and hub, and the axle shaft passes through it to the drive flange.
This is the early configuration, with the steering arm mounted on top of the swivel housing. The lower pivot runs on a Railko bush and thrust washer, while the upper swivel pin runs in a taper bearing set by shims.

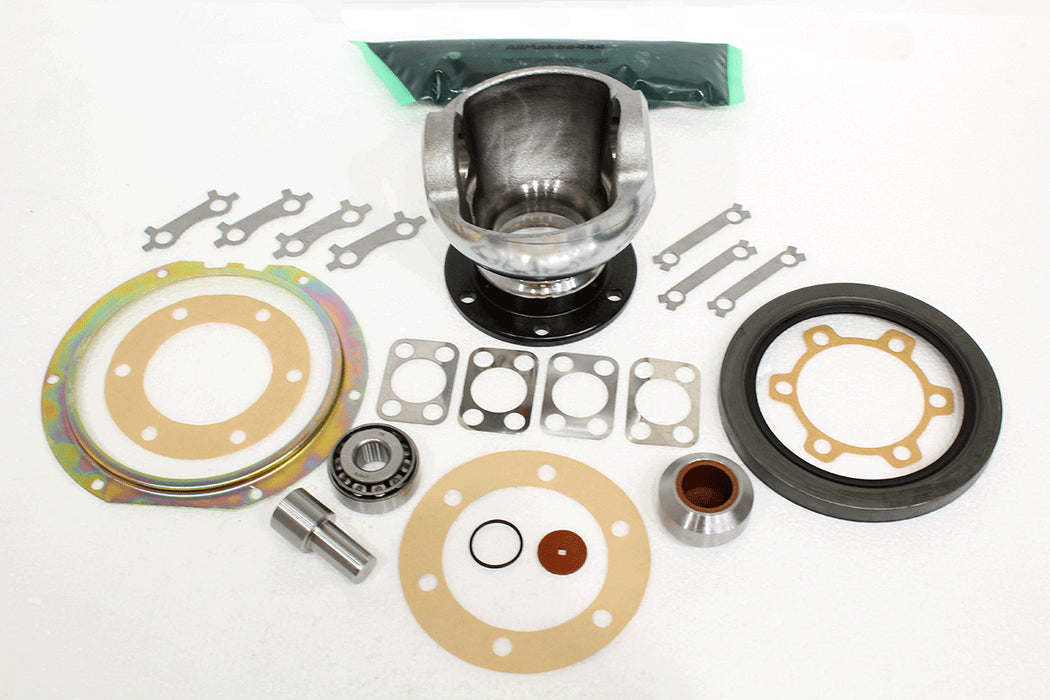

This kit contains the swivel housing, swivel pin, Railko bush, thrust washer, swivel pin bearing, O-ring, lock washer and locker, shims, oil seal and retainer, joint washers and a sachet of swivel housing grease. One kit covers one side of the vehicle.
This is the early configuration, with the steering arm mounted on top of the swivel housing. The lower pivot runs on a Railko bush and thrust washer, while the upper swivel pin runs in a taper bearing set by shims.
This kit contains the swivel housing, swivel pin, Railko bush, thrust washer, swivel pin bearing, O-ring, lock washer and locker, shims, oil seal and retainer, joint washers and a sachet of swivel housing grease. One kit covers one side of the vehicle.
Vehicle Model
Land Rover Series 2 and 3
Fitment Notes
SERIES 2 — swivel kit, all engines. Fits SERIES 2 ONLY — NOT Series 2A or 3. Source: AllMakes Webcat.
Alternative Codes
GA3169
Available to order
2–3 weeks
Not currently in stock. Order now — typically ships within 2–3 weeks.
Need it faster? Contact us about express import (2–5 business days).
