GA3169P - Swivel Kit
Original price
-
Original price
€95,20
Original price
€95,20
€95,20
-
€95,20
Current price
€95,20
Aftermarket: Quality alternative.
This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Swivel Kit - repair kit for one front swivel housing assembly. The swivel housing is the steering pivot at the outer end of the front axle case: it carries the stub axle and hub, and the axle shaft passes through it to the drive flange.
This is the early configuration, with the steering arm mounted on top of the swivel housing. The lower pivot runs on a Railko bush and thrust washer, while the upper swivel pin runs in a taper bearing set by shims. The swivel housing itself is not supplied, so the existing housing must still be serviceable.

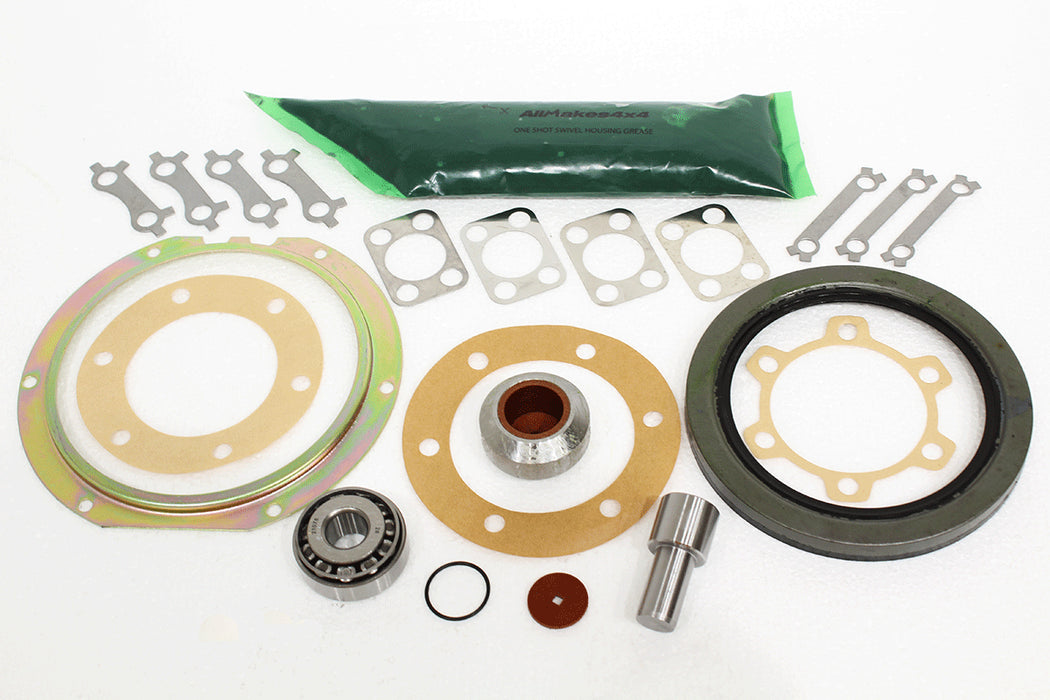

This kit contains the swivel pin, Railko bush, thrust washer, swivel pin bearing, shims, oil seal and retainer, joint washers and gaskets. One kit covers one side of the vehicle.
This is the early configuration, with the steering arm mounted on top of the swivel housing. The lower pivot runs on a Railko bush and thrust washer, while the upper swivel pin runs in a taper bearing set by shims. The swivel housing itself is not supplied, so the existing housing must still be serviceable.
This kit contains the swivel pin, Railko bush, thrust washer, swivel pin bearing, shims, oil seal and retainer, joint washers and gaskets. One kit covers one side of the vehicle.
Vehicle Model
Land Rover Series 2 and 3
Fitment Notes
SERIES 2 — swivel repair kit, all engines. Fits SERIES 2 ONLY — NOT Series 2A or 3. Source: AllMakes Webcat.
Alternative Codes
GA3169PGA3169
Available to order
2–3 weeks
Not currently in stock. Order now — typically ships within 2–3 weeks.
Need it faster? Contact us about express import (2–5 business days).
When will my order arrive?
This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.
- Netherlands / Belgium / Germany: 2–4 working days after dispatch.
- Other EU countries + UK: 4–8 working days after dispatch.
- Outside EU/UK: contact us for an estimate.
Need it faster? Express import available in 2–5 business days — contact us before ordering.
