LR011220 - Spark Plug Gasket – RH by AftermarketEngine Part Land Rover Range Rover Defender, Discovery, Range Rover, Range Rover Sport, Range Rover Velar

LR011220 - Spark Plug Gasket – RH

- €5,40
€5,40
€5,40 - €5,40
€5,40
Tip: Log in to your account to unlock volume discounts on this item.
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

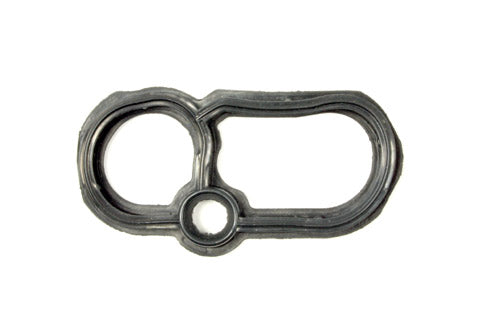

Spark Plug Well Gasket seals the spark plug aperture in the camshaft (valve) cover on the right-hand cylinder head bank.

It prevents engine oil from entering the spark plug wells. Fitted to the 5.0L AJ-V8 and 3.0L V6 supercharged petrol engines. The corresponding left-hand bank gasket is LR014345.
Vehicle Model Land Rover Defender New 2020+
Land Rover Discovery 4 2010-2016 (L319)
Land Rover Discovery 5 2017+ (L462)
Range Rover 2002-2012 (L322)
Range Rover 2013-2022 (L405)
Range Rover Sport 2005-2013 (L320)
Range Rover Sport 2014-2022 (L494)
Range Rover Velar 2017+ (L560)
Fitment Notes Cylinder head cover (cam cover) gasket, RH bank — petrol engines only
DISCOVERY 4 2010-2016 — 5.0L V8 NA petrol (AJ133), 3.0L V6 SC petrol
DISCOVERY 5 2017+ — 3.0L V6 SC petrol
NEW DEFENDER 2020+ (L663) — 5.0L V8 petrol (AJ133)
RANGE ROVER L322 2010-2012 — 5.0L V8 SC/NA petrol (AJ133)
RANGE ROVER L405 2013+ — 5.0L V8 petrol, 3.0L V6 SC petrol
RANGE ROVER SPORT L320 2010-2013 — 5.0L V8 petrol (AJ133)
RANGE ROVER SPORT L494 2014+ — 5.0L V8 petrol, 3.0L V6 SC petrol
RANGE ROVER VELAR 2017+ — 3.0L V6 SC petrol, 5.0L V8 SC petrol
Alternative Codes
LR011220

In stock 4 units
0 · Gouda 4 · Drachten
Express delivery available

When will my order arrive?
  • Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
  • UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
  • Netherlands / Belgium / Germany: 2–4 working days.
  • Other EU countries + UK: 4–8 working days.
  • Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Spark Plug Gasket (LR011220) and what does it do?
The Spark Plug Gasket (LR011220) seals the spark plug aperture in the camshaft (cam) cover on the right-hand cylinder head bank. It stops engine oil from entering the spark plug wells. It's fitted to Land Rover petrol V8 and supercharged V6 engines.
Which engines and models use the LR011220 spark plug gasket?
The LR011220 gasket fits the right-hand bank of the 5.0L V8 (AJ133) and 3.0L supercharged V6 petrol engines. Applications include Discovery 4 and 5, New Defender (L663), Range Rover L322 and L405, Range Rover Sport L320 and L494, and Velar. Petrol engines only.
What's the difference between LR011220 and the left-hand spark plug gasket?
LR011220 seals the right-hand (RH) cylinder head bank, while LR014345 seals the left-hand bank. These V engines use one gasket per bank, so check which side you're working on. Many jobs replace both banks at the same time.
When should the spark plug gasket be replaced?
Replace the spark plug gasket whenever oil is found in the spark plug wells, or during spark plug and cam cover service on these petrol engines. A failed gasket lets oil pool around the plugs, which can cause misfires. It's typically renewed any time the cam cover is removed.
