LR023713 - Lower Suspension Arm – Rear – RH Steering or Suspension Part Land Rover Range Rover Range Rover

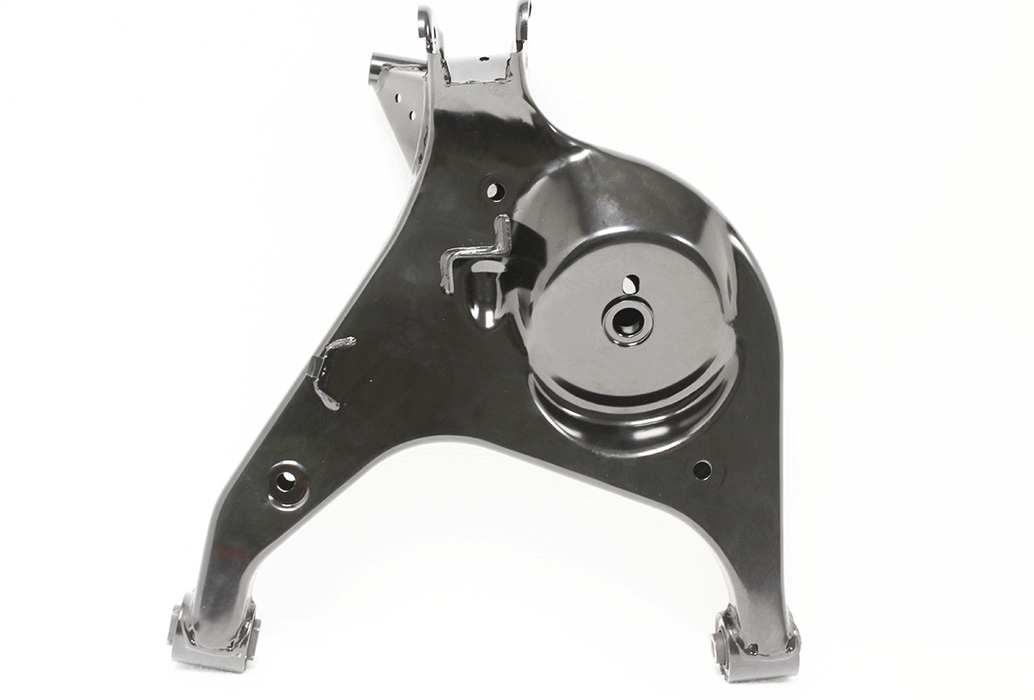

LR023713 - Lower Suspension Arm – Rear – RH

- €121,90
€121,90
€121,90 - €121,90
€121,90
OEM Part
OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.
Lower Suspension Arm - Rear - RH for the independent rear suspension assembly.

This right-hand lower wishbone forms part of the multi-link rear suspension geometry. Mounted between the rear subframe and the lower point of the hub carrier, the arm controls the vertical and lateral position of the rear hub, maintaining correct wheel alignment under load. Rubber-bonded bushes at each end isolate road noise and vibration while allowing the controlled articulation needed as the suspension compresses and rebounds. The arm carries both vertical and lateral forces transmitted from the wheel.
Vehicle Model Range Rover 2002-2012 (L322)
Fitment Notes RANGE ROVER L322 2010-2012 — Rear lower suspension arm RH, from VIN AA000001 (facelift)
Alternative Codes
LR023713LR023713ESRGG000083RGG000084

In stock 1 unit
1 · Gouda 0 · Drachten
Express delivery available

When will my order arrive?
  • Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
  • UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
  • Netherlands / Belgium / Germany: 2–4 working days.
  • Other EU countries + UK: 4–8 working days.
  • Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR023713 rear lower suspension arm and what does it do?
The LR023713 is the right-hand rear lower suspension arm, or wishbone, for the Range Rover L322. It mounts between the rear subframe and the lower hub carrier, controlling the rear wheel's vertical and lateral position to hold alignment under load. Bonded rubber bushes at each end isolate noise while allowing articulation.
Which Range Rover does this rear arm fit?
This rear lower arm fits the Range Rover L322 facelift, 2010-2012, from VIN AA000001, right-hand side. It's the later L322 geometry, so confirm your VIN falls from AA000001 before ordering. Alternative part numbers for this arm include RGG000084 and RGG000083.
What are the signs the rear lower arm needs replacing?
A worn rear lower arm typically shows through knocking over bumps, vague rear-end handling, uneven tyre wear, or alignment that won't hold. On the Range Rover L322 the bonded bushes perish with age and load. Replacement is usually needed once the bushes split or the arm corrodes.
Is wheel alignment needed after fitting this arm?
Yes, rear wheel alignment is typically required after fitting the LR023713, since it sets rear hub geometry on the Range Rover L322. The job usually needs spring or subframe support, so it's generally a workshop task. Final-tighten the bush bolts at ride height to avoid preloading the bushes.
