LR032298 - Oil Filter Adaptor by AftermarketTransmission or Drivetrain Part Land Rover Range Rover Freelander 1, Range Rover Evoque

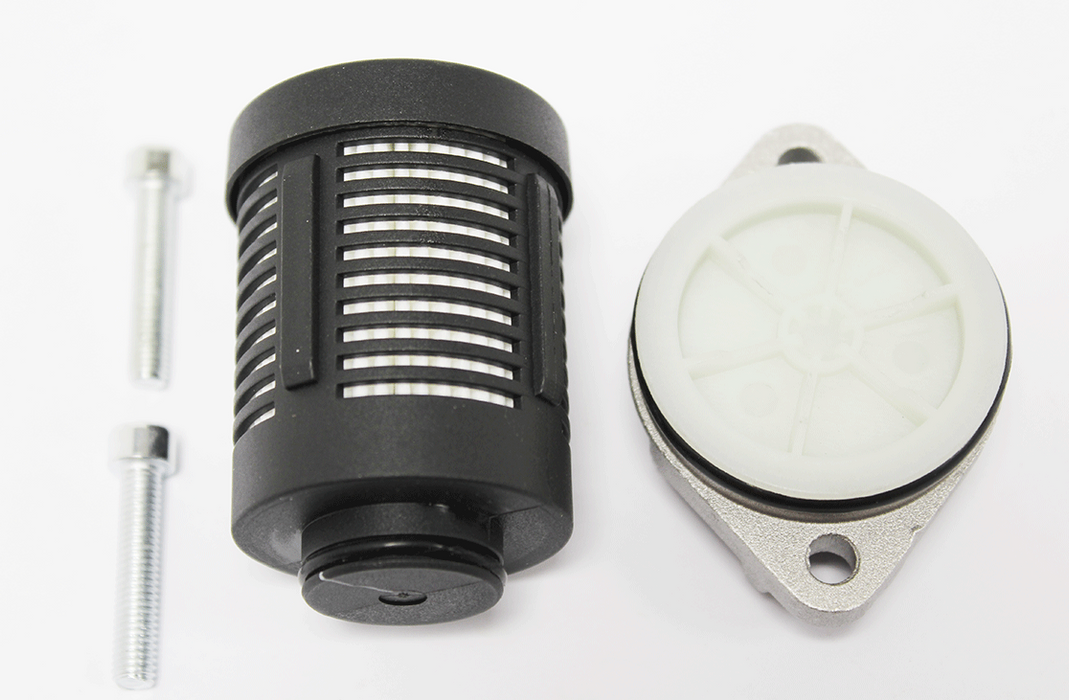

LR032298 - Oil Filter Adaptor

- €55,90
€55,90
€55,90 - €55,90
€55,90
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
Oil Filter Adaptor for the rear-drive Haldex coupling (Active On-Demand Coupling) in the all-wheel-drive driveline.

The filter keeps the oil in the rear coupling unit clean, protecting the coupling's control valve and clutch pack from circulating particles. Replace whenever the coupling oil is serviced.
Vehicle Model Land Rover Freelander 2 2006-2014 (L359)
Range Rover Evoque 2012-2018 (L538)
Range Rover Evoque 2019+ (L551)
Fitment Notes FREELANDER 2 2006-2014 — Rear axle/driveline oil filter element; 6-spd Auto AWF21 AWD & 6-spd Manual M66 AWD
RANGE ROVER EVOQUE 2012-2018 (L538) — Rear axle/driveline oil filter element; AWD / Efficient Driveline
Alternative Codes
LR032298

In stock 5 units
1 · Gouda 4 · Drachten
Express delivery available

When will my order arrive?
  • Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
  • UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
  • Netherlands / Belgium / Germany: 2–4 working days.
  • Other EU countries + UK: 4–8 working days.
  • Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is this Oil Filter Adaptor used for?
This part is the oil filter element for the rear-drive Haldex coupling (Active On-Demand Coupling) in the all-wheel-drive driveline. It keeps the coupling oil clean, protecting the unit that sends drive to the rear axle. It fits the Freelander 2 and Range Rover Evoque AWD.
Where does this filter sit on the vehicle?
This filter sits at the rear-drive coupling on the back axle, part of the on-demand all-wheel-drive system rather than the engine. On the Freelander 2 and Evoque it serves the Haldex-type coupling that engages the rear wheels, so it's a driveline service item, not an engine oil filter.
Does this fit front-wheel-drive variants?
This filter applies to the Freelander 2 and Range Rover Evoque with the on-demand all-wheel-drive coupling, including the 6-speed auto and manual AWD versions. Confirm your vehicle has the AWD driveline before ordering, since front-wheel-drive variants don't use the rear coupling.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

1 option

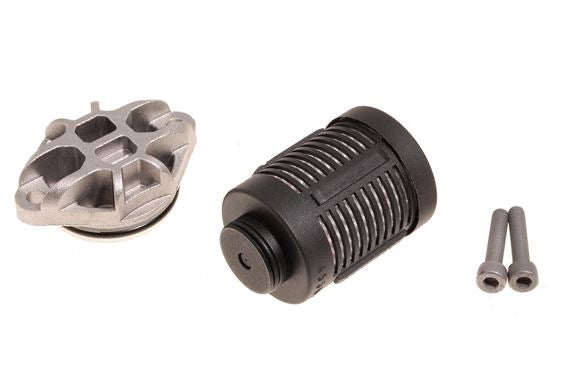

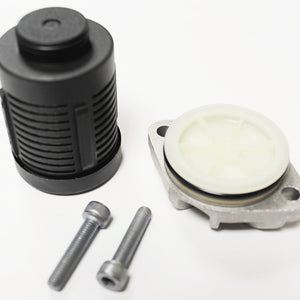

LR032298G - Oil Filter Adaptor
OEM LR032298G - Oil Filter Adaptor
Stock 0
€68,30 excl. VAT
View →
