LR032577 - CV Joint by AllmakesTransmission or Drivetrain Part Land Rover Range Rover

LR032577 - CV Joint – Front – Outer

- €78,80
€78,80
€78,80 - €78,80
€78,80
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

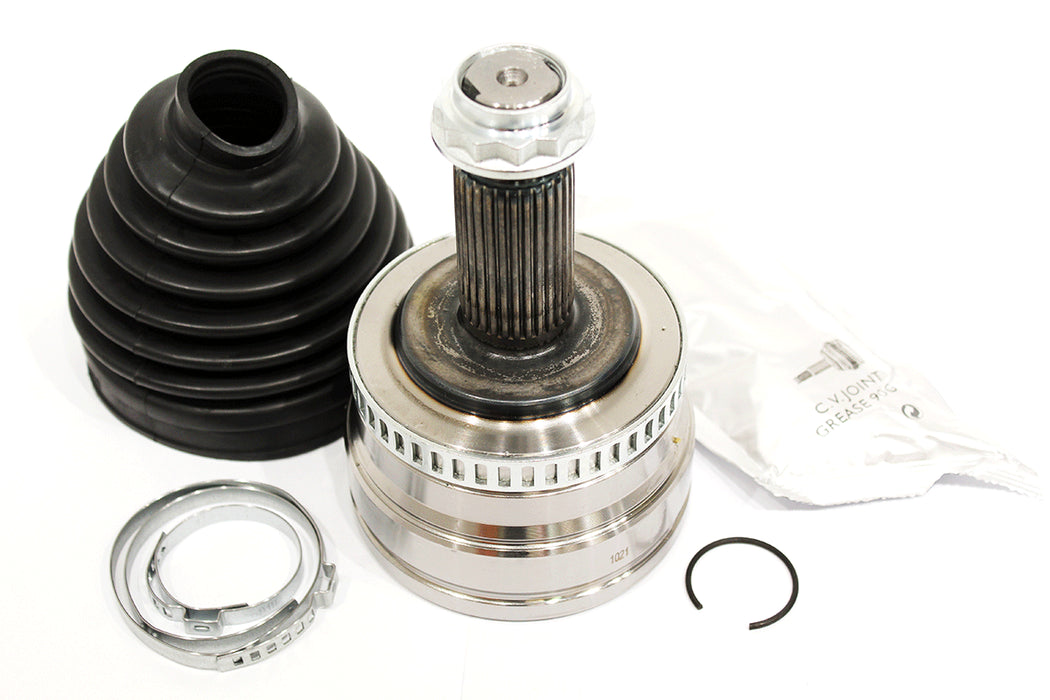

CV Joint is the outer (outboard) constant-velocity joint of the front axle driveshaft.

It transmits drive from the front halfshaft to the wheel hub while accommodating steering angle and suspension travel. It installs at the outboard end of the front driveshaft, at the wheel hub.
Vehicle Model Range Rover 2002-2012 (L322)
Fitment Notes RANGE ROVER L322 2002-2012 — All engines. Front axle driveshaft outer CV / ball joint. JLR comment: "Outboard Joint". Qty 2 per vehicle. Catalogue break: 2002-2009 to (V)9A999999; 2010-2012 from (V)AA000001
Alternative Codes
LR032577

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR032577 outer CV joint?
The LR032577 is a front outer CV (constant velocity) joint for the Range Rover L322 (2002-2012). It sits at the outer end of the front driveshaft, transmitting drive to the front wheel while allowing for steering and suspension movement.
How many CV joints does the vehicle need?
Two outer CV joints are fitted per vehicle, one on each front driveshaft. If both sides are worn you'll need two, though they can be replaced individually if only one has failed on your L322.
What are the signs of a failing outer CV joint?
A failing outer CV joint on the L322 typically clicks or knocks on full lock when turning, especially under power. A split CV gaiter that lets grease out and dirt in is the usual cause, and ignoring it leads to joint wear and eventual failure.
Does this CV joint fit my L322?
This outer CV joint fits the Range Rover L322 2002-2012 across all engines. There's a catalogue break at VIN 9A999999 (2002-2009) to AA000001 (2010-2012), so quote your VIN to confirm the correct joint for your build.
