LR077773A - Switch - Reverse Light by Autotec ComponentsElectrical Part Land Rover Range Rover Defender

LR077773A - Reverse Light Switch – MT82

- €19,60

€19,60

€19,60 - €19,60

€19,60

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Autotec Components

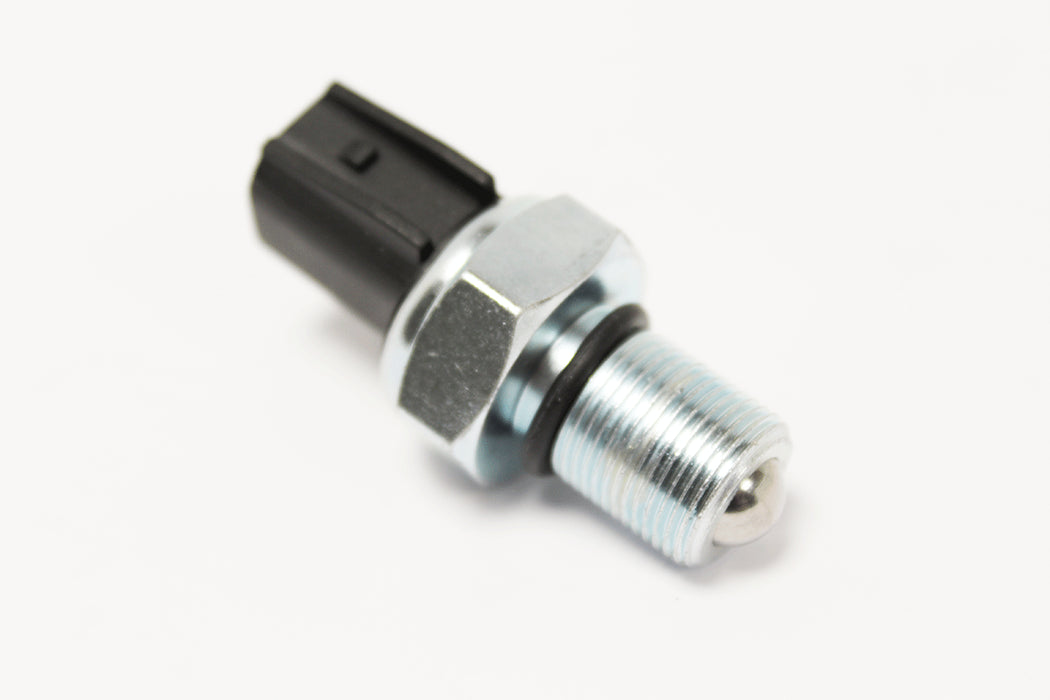

Reverse Light Switch - a screw-in switch mounted on the MT82 six-speed manual gearbox.

It detects selection of reverse gear and closes the reversing-lamp circuit, illuminating the rear reverse lights when reverse is engaged. The switch threads into the gearbox casing and is operated directly by the internal selector mechanism.

Vehicle Model Land Rover Defender up to 2016

Fitment Notes DEFENDER 2007-2016 — 2.2/2.4 TDCi Puma (L317), MT82 6-speed manual gearbox, from VIN 7A000001

Alternative Codes

LR077773ALR0777730947T-15520

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the reverse light switch do on an MT82 gearbox?

The reverse light switch screws into the MT82 six-speed manual gearbox and detects when reverse gear is selected. It closes the reversing-lamp circuit so the rear reverse lights come on when you engage reverse. It's operated directly by the gearbox's internal selector.

Which Land Rover does this MT82 reverse light switch fit?

This reverse light switch fits the Defender 2.2 and 2.4 TDCi Puma up to 2016 with the MT82 six-speed manual gearbox, from VIN 7A000001. It's specific to the MT82 box, so it typically won't suit the earlier R380 manual gearbox.

Where is the reverse light switch located on the MT82 gearbox?

The reverse light switch is located on the MT82 gearbox casing, threaded into a port by the selector mechanism. On the Defender Puma it's typically reached from underneath at the gearbox. It works mechanically off reverse selection and needs no calibration.

Can the reverse light switch be fitted at home?

Yes, the reverse light switch is typically a straightforward DIY job. It threads into the MT82 gearbox casing and connects to the wiring plug, so it usually needs only basic hand tools and access from underneath. Check the reverse lights work once it's refitted.
