LVF100400LR - Sump Gasket – V8 by LAND ROVEREngine Part Land Rover Range Rover Discovery, Range Rover

LVF100400LR - Sump Gasket – V8

- €80,80
€80,80
€80,80 - €80,80
€80,80
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

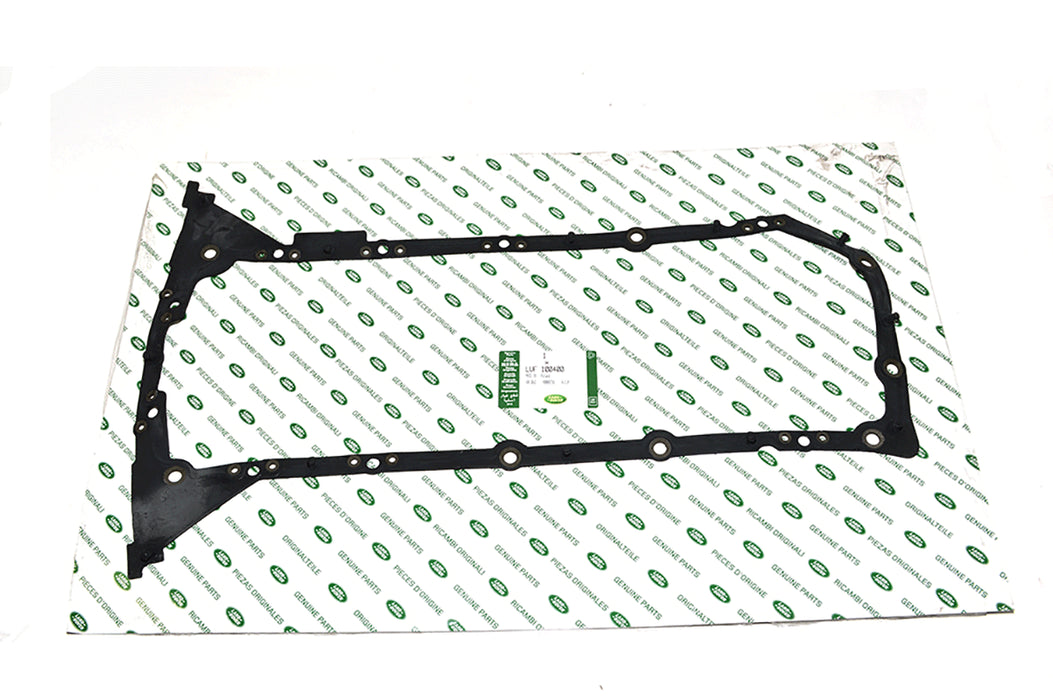

Sump Gasket for the Rover V8 4.0 and 4.6 petrol engine, sealing the oil sump to the underside of the cylinder block.

This is the one-piece rubber-type gasket, which seals the full perimeter of the sump flange and replaces the earlier cork and sealant arrangement. It retains the engine oil held in the sump and prevents leakage at the block-to-sump joint. Renewal is required whenever the sump is removed.
Vehicle Model Land Rover Discovery 2 1998-2004 (L318)
Range Rover Classic 1994-2001 (P38)
Fitment Notes DISCOVERY 2 1998-2004 — Rover V8 4.0 & 4.6
RANGE ROVER P38 1994-2001 — Rover V8 4.0 & 4.6
Alternative Codes
LVF100400LRLVF100400LVF10040

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LVF100400 sump gasket?
The LVF100400 is a sump gasket for the Rover V8 engine. It seals the join between the sump pan and the engine block, keeping engine oil sealed in the bottom of the engine. This is a genuine Land Rover part, also referenced as LVF10040.
Which vehicles use the LVF100400 sump gasket?
The LVF100400 fits the 4.0 and 4.6 Rover V8 in the Discovery 2 (1998-2004) and Range Rover P38 (1994-2001). It seals the sump on these petrol V8 engines. One gasket does the full sump pan.
When should the sump gasket be replaced?
Replace the LVF100400 sump gasket whenever the sump is removed, or when oil weeps from the sump-to-block joint. The old gasket hardens and loses its seal over time. Fitting a fresh gasket on refit prevents oil leaks from the bottom of the engine.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

1 option
LVF100400 - Sump Gasket – V8
Aftermarket LVF100400 - Sump Gasket – V8
Stock 12
€9,90 excl. VAT
View →
