REB101740LR - Air Spring by Land RoverSteering or Suspension Part Land Rover Range Rover Range Rover

REB101740LR - Air Spring – Front

- €540,00
€540,00
€540,00 - €540,00
€540,00
Genuine Part
Genuine: Original manufacturer part. This product is the original part designed and produced by the vehicle manufacturer.

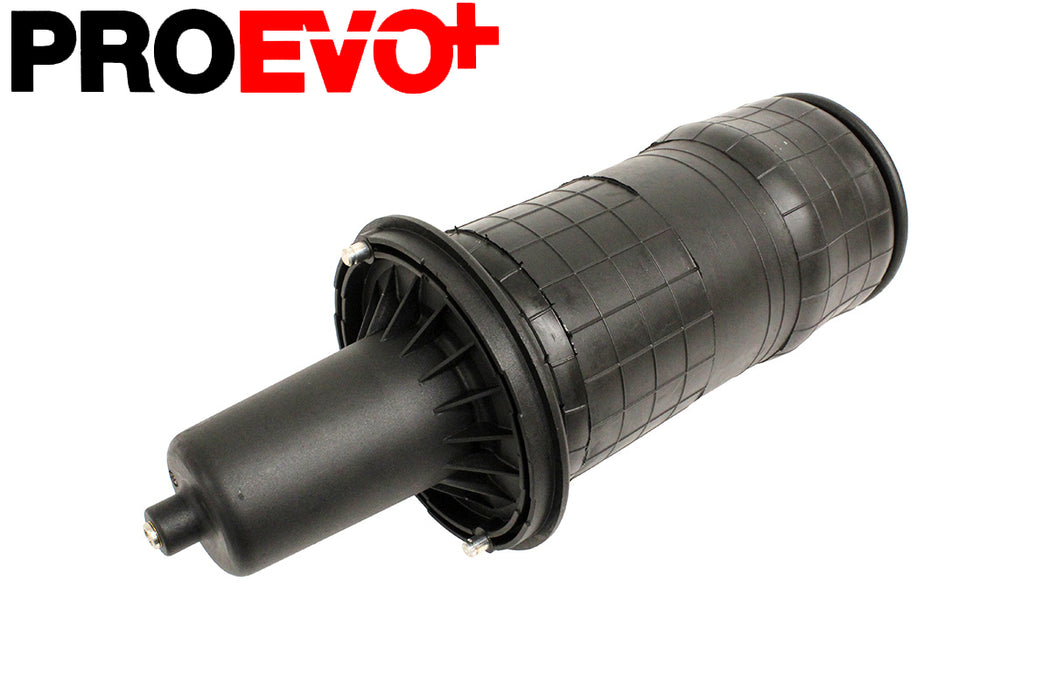

Air Spring for the front of the electronic air suspension system. The air spring takes the place of a conventional coil spring, using a flexible rubber bag inflated by the suspension compressor to support the vehicle and set ride height.

The suspension ECU regulates air pressure to hold ride height under varying load and to deliver the selectable ride-height settings. A perished or leaking air spring lets the affected corner sag and causes the compressor to run excessively.
Vehicle Model Range Rover Classic 1994-2001 (P38)
Fitment Notes RANGE ROVER P38 1994-2001 — Front air suspension spring, Dunlop type, Less Hot Climate
Alternative Codes
REB101740LRREB101740ANR3228ANR4684DA2372

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.
  • Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the front air spring (REB101740) do?
The front air spring replaces a conventional coil spring in the P38 electronic air suspension, using a flexible rubber bag inflated by the compressor to support the vehicle and set ride height. The suspension ECU regulates pressure to hold height under load. Genuine Land Rover part REB101740, for the Range Rover P38 (1994-2001).
Does this front air spring fit every Range Rover P38?
This front air spring fits the Range Rover P38 (1994-2001) but is the Dunlop type to Less Hot Climate specification. Confirm your existing air spring is the Dunlop pattern and non-hot-climate spec before ordering, as fitment differs by type.
What are the signs a front air spring needs replacing?
A failing front air spring typically shows as the front corner sagging overnight, the vehicle sitting low, or the compressor running excessively to maintain height. The rubber perishes and cracks with age, causing air leaks. On the P38 a leaking front air spring is a common cause of suspension fault warnings.
What are the alternative codes DA2372, ANR4684 and ANR3228?
The alternative codes DA2372, ANR4684 and ANR3228 all cross-reference this same front air spring, so a P38 previously fitted with any of those numbers takes this part. They cover the Dunlop-type P38 front spring across supplier and supersession numbering. Match the Dunlop, Less-Hot-Climate spec whichever old code you have.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

2 options
DA2372 - Air Spring – Front
Aftermarket DA2372 - Air Spring – Front
Stock 0
€85,60 excl. VAT
View →
REB101740 - Air Spring – Front
OEM REB101740 - Air Spring – Front
Stock 4
€131,00 excl. VAT
View →
