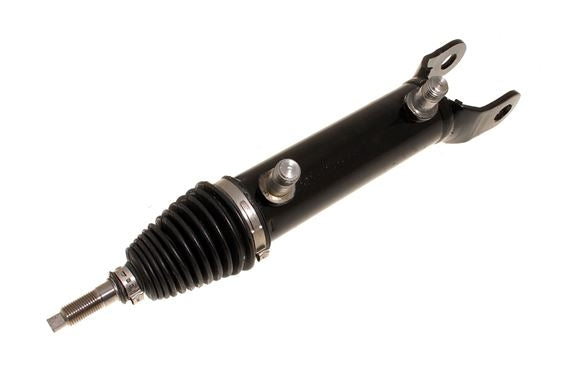

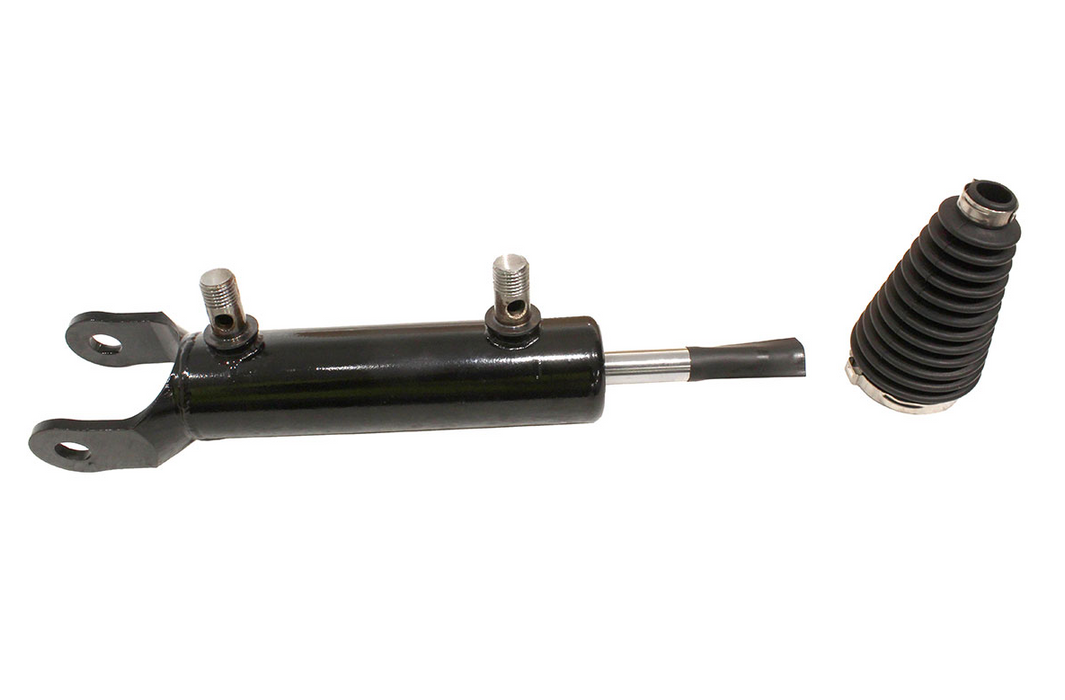

RQK100000 - ACE Strut Actuator – Front

Original price - Original price €370,00
Original price
€370,00
€370,00 - €370,00
Current price €370,00
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
ACE Strut Actuator - the hydraulic actuator for the front Active Cornering Enhancement (ACE) anti-roll bar.

ACE replaces a conventional passive anti-roll bar with a hydraulically actuated one. This actuator applies torque to the front anti-roll bar on demand from the ACE control module and hydraulic pump, resisting body roll during cornering while allowing the bar to relax for maximum wheel articulation off-road. It is supplied as a complete actuator assembly.

A failed actuator or loss of hydraulic pressure results in increased body roll and an ACE system fault warning.
Vehicle Model Land Rover Discovery 2 1998-2004 (L318)
Fitment Notes DISCOVERY 2 1998-2004 — ACE (Active Cornering Enhancement) front strut actuator; fitted with air suspension / ACE anti-roll bar system (front & rear)
Alternative Codes
RQK100000

On order 1 unit · ETA 10-08-2026

Currently out of stock. Order now — we'll ship as soon as it arrives.


When will my order arrive?

We have 1 unit on order from our supplier, expected 10-08-2026. Order now to reserve — we'll dispatch as soon as stock arrives.

  • Netherlands / Belgium / Germany: 2–4 working days after dispatch.
  • Other EU countries + UK: 4–8 working days after dispatch.

Need it sooner? Contact us about express import (2–5 business days).

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the front ACE strut actuator do?
The front ACE strut actuator is the hydraulic unit that applies torque to the front anti-roll bar on the Discovery 2's Active Cornering Enhancement system. On demand from the ACE module and pump, it stiffens the bar to resist body roll in corners, then relaxes it for wheel articulation off-road.
Which vehicles have the ACE strut actuator?
The ACE strut actuator fits the Discovery 2 (1998-2004) equipped with Active Cornering Enhancement. ACE replaces the passive front anti-roll bar with a hydraulically actuated one, so only ACE-specification vehicles use this part. Standard Discovery 2 models without ACE don't have it.
What are the signs of a failed ACE actuator?
A failed ACE actuator or a loss of hydraulic pressure shows up as increased body roll in corners and an ACE system fault warning on the dash. The suspension can't stiffen the anti-roll bar properly, so the vehicle leans more than usual through bends.
Is the ACE actuator supplied complete?
The ACE strut actuator is supplied as a complete actuator assembly, ready to fit to the front anti-roll bar, and carries a 3 year guarantee. Because it's part of a hydraulic system, fitting typically involves bleeding the ACE circuit, which is usually a specialist job.
