SEE100340 - Brake Guide Pin Kit – Front by BritpartBrake Part Land Rover Range Rover Freelander 1

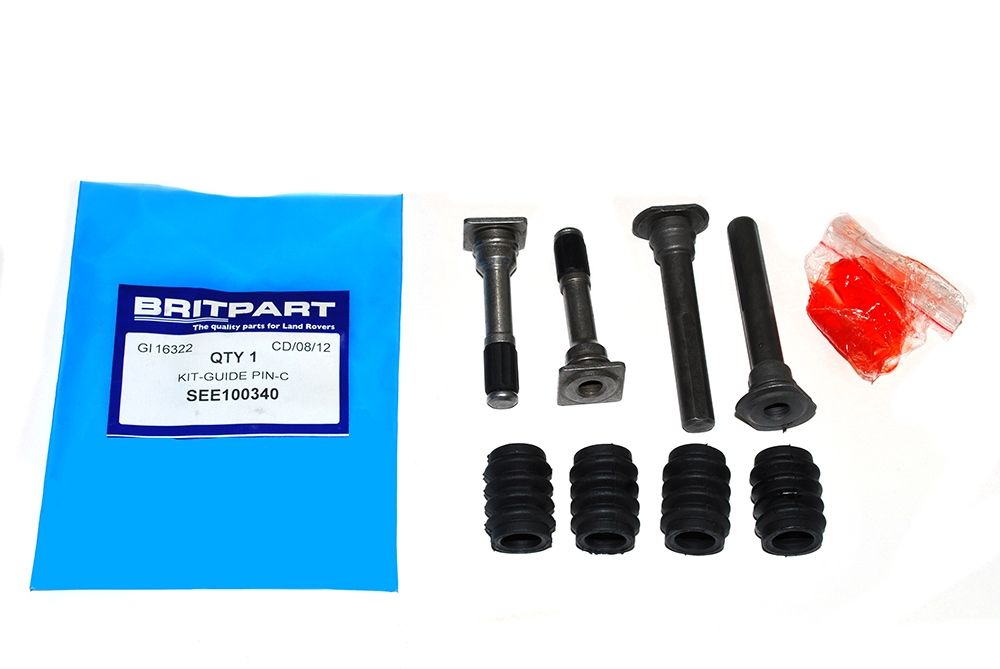

SEE100340 - Brake Guide Pin Kit – Front

- €17,40
€17,40
€17,40 - €17,40
€17,40
Aftermarket Part
Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.
kit front brake caliper guide pins
Vehicle Model Land Rover Freelander 1 1996-2006 (L314)
Fitment Notes FREELANDER 1 1997-2006 — Front brake guide pin kit, all variants, from VIN 1A000001
Alternative Codes
SEE100340ZSEE100340ST1264

In stock 8 units
6 · Gouda 2 · Drachten
Express delivery available

When will my order arrive?
  • Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
  • UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
  • Netherlands / Belgium / Germany: 2–4 working days.
  • Other EU countries + UK: 4–8 working days.
  • Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the SEE100340Z guide pin kit for?
SEE100340Z is the front brake caliper guide pin kit for the Freelander 1 from VIN 1A000001. The pins carry the sliding caliper on its carrier bracket so it can centre itself over the disc as the pads wear.
What happens if a seized guide pin is not replaced?
A seized pin stops the front caliper sliding, so only the piston side pad does the work. That pad and one side of the disc wear out early, braking goes uneven, and on a Freelander 1 the caliper can run hot enough to cook the fluid behind the piston.
Does this fit both front calipers?
The kit is listed as the front guide pin kit for the Freelander 1 from VIN 1A000001. Check the number of pins supplied against what your calipers need, since a single caliper takes more than one pin and most people replace both sides together.
How do I know my Freelander 1 takes this kit?
Use the VIN. This kit is listed from VIN 1A000001 onward and covers all Freelander 1 variants from that break. Cars built before that VIN use different front caliper hardware, so the VIN rather than the model year is what decides it.

Alternative & Related Options

Same part, different brands or quality grades. Click any option to view full details.

1 option
SEE100340G - Brake Guide Pin Kit – Front
OEM SEE100340G - Brake Guide Pin Kit – Front
Stock 1
€29,50 excl. VAT
View →

Frequently Bought With

Products most often purchased alongside this one.

16 items
LRF100150LM - Oil Filter – Element Type – TD4
OEM

LRF100150LM - Oil Filter – Element Type – TD4

€10,60 excl. VAT
RBM100172 - Anti-roll bar link assy Freel.1
Aftermarket

RBM100172 - Anti-roll bar link assy Freel.1

€11,30 excl. VAT
LR077687 - Door Seal – Front – RH
Aftermarket

LR077687 - Door Seal – Front – RH

€32,00 excl. VAT
ALR9783 - Lock Assembly – Front Door – LH
OEM

ALR9783 - Lock Assembly – Front Door – LH

€190,00 excl. VAT
ALU1403L - Aluminium Washer
Aftermarket

ALU1403L - Aluminium Washer

€0,50 excl. VAT
BT606106 - Transfer Box Flange Bolt – 3/8
Aftermarket

BT606106 - Transfer Box Flange Bolt – 3/8" UNF x 1-1/4" Hex

€2,90 excl. VAT
TVB100610 - Propshaft – Front
Aftermarket

TVB100610 - Propshaft – Front

€131,40 excl. VAT
LR029773 - Pollen Filter
OEM

LR029773 - Pollen Filter

€13,10 excl. VAT
PCH117190 - Coolant Hose – Td5 – Pump To Thermostat
Aftermarket

PCH117190 - Coolant Hose – Td5 – Pump To Thermostat

€42,30 excl. VAT

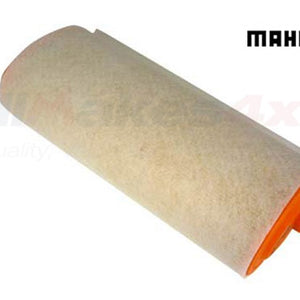

LR007478M - Air Cleaner Filter Element - Freelander TD4
OEM

LR007478M - Air Cleaner Filter Element - Freelander TD4

€25,10 excl. VAT

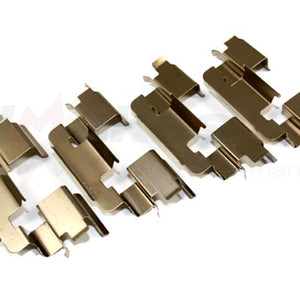

SFK500010 - Kit - Clips - Brakepads Freelander1
