STC1122 - Exhaust Valve – 3.5 V8
Original price
-
Original price
€10,10
Original price
€10,10
€10,10
-
€10,10
Current price
€10,10
Aftermarket: Quality alternative.
This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

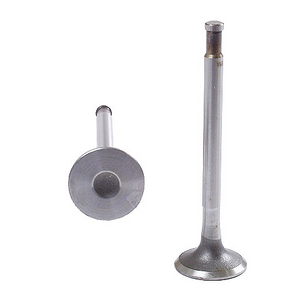

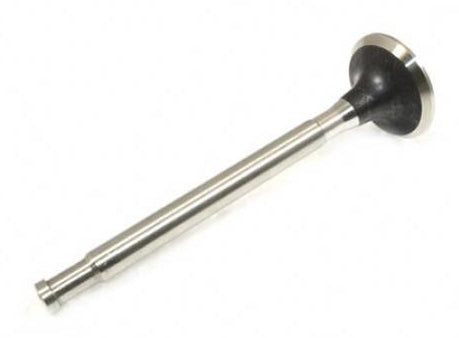

Exhaust Valve for the cylinder head valvetrain of the 3.5 V8 petrol engine.
The exhaust valve opens to release burnt gases into the exhaust port and seals the combustion chamber during the compression and power strokes. It runs in a pressed-in valve guide and seats against the machined insert in the head. It works at far higher temperature than the inlet valve and sheds most of its heat through the seat face and the guide, so seat contact and stem clearance are critical to valve life.
Dimensions: head diameter 34.25mm, stem diameter 8.57mm, overall length 117mm.
Exhaust valves are normally renewed as a set during head reconditioning. Lap each valve to its seat on fitting and check stem-to-guide clearance.
The exhaust valve opens to release burnt gases into the exhaust port and seals the combustion chamber during the compression and power strokes. It runs in a pressed-in valve guide and seats against the machined insert in the head. It works at far higher temperature than the inlet valve and sheds most of its heat through the seat face and the guide, so seat contact and stem clearance are critical to valve life.
Dimensions: head diameter 34.25mm, stem diameter 8.57mm, overall length 117mm.
Exhaust valves are normally renewed as a set during head reconditioning. Lap each valve to its seat on fitting and check stem-to-guide clearance.
Vehicle Model
Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994
Land Rover Series 2 and 3
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994
Land Rover Series 2 and 3
Fitment Notes
DEFENDER 90/110 1987-2006 — 3.5 V8 twin-carb petrol, cylinder head exhaust valve (up to VIN LA921745)
DISCOVERY 1 1989-1998 — 3.5 V8, cylinder head exhaust valve (VIN FA393361 to WA799999)
RANGE ROVER CLASSIC — 3.5 V8, cylinder head exhaust valve (EFI head 1986-1991 to VIN HA610293)
SERIES III — 3.5 V8, cylinder head exhaust valve
DISCOVERY 1 1989-1998 — 3.5 V8, cylinder head exhaust valve (VIN FA393361 to WA799999)
RANGE ROVER CLASSIC — 3.5 V8, cylinder head exhaust valve (EFI head 1986-1991 to VIN HA610293)
SERIES III — 3.5 V8, cylinder head exhaust valve
Alternative Codes
STC1122GSTC1122614089
