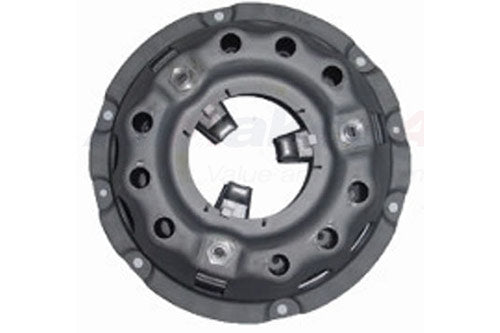

591705 - Clutch cover S2(A) (3 finger) by AftermarketClutch Part Land Rover Range Rover Defender, Series

591705 - Drukplaat – 9 Inch – 3-Vingers

- €154,40

€154,40

€154,40 - €154,40

€154,40

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Drukplaat is de drukplaatconstructie van de koppeling, 229 mm diameter, spiraalveer type met drie ontgrendelingsvingers.

Deze wordt op het vliegwiel gemonteerd en de veergeladen drukplaat klemt de aangedreven plaat tegen het vliegwielvlak. De drie ontgrendelingsvingers worden geactiveerd door het druklager om de aandrijving los te koppelen. Past bij de bijpassende aangedreven plaat van 229 mm met veer (591704).

Vehicle Model Land Rover Defender tot 2016
Land Rover Series 1
Land Rover Series 2 en 3

Fitment Notes SERIE I — 1595cc & 2.0L Benzine; 9 inch koppelingsplaat, 3-vinger veertype
SERIE II & IIA — 2.25L Benzine; 9 inch koppelingsplaat, 3-vinger veertype

Alternative Codes

591705231879236684BR 0999GCC127

In stock 1 unit

1 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the 9 inch clutch cover (591705)?

The clutch cover is the pressure plate assembly, 9 inch (229 mm) diameter, coil-spring type with three release fingers. It bolts to the flywheel and clamps the driven plate against the flywheel face. The three fingers are pushed by the release bearing to disengage drive. It fits Series 1 and Series 2 and 2A petrol engines.

What's the difference between this cover and other 9 inch covers?

This is the 3-finger coil-spring cover, suited to the early non-synchronised gearbox setup with the curved gear lever. Land Rover used more than one 9 inch cover design, so match the release-finger type and gearbox spec to your vehicle. It pairs with the matching 9 inch spring-type driven plate.

Should the cover be replaced with the clutch plate?

Yes, the clutch cover is typically renewed together with the driven plate and release bearing. The spring pressure weakens with age and heat, causing slip, and matching new parts give even clamping. Since the gearbox must come out to reach the clutch, the set is usually changed in one go.
