LR70 - Series military rear crossmember with 325mm extensions by AftermarketBody Part Land Rover Range Rover Series

LR70 - Rear Crossmember – Military – 325mm Extensions

- €390,00

€390,00

€390,00 - €390,00

€390,00

Note: This product is heavy and ships on a pallet, which may add to the delivery fee.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

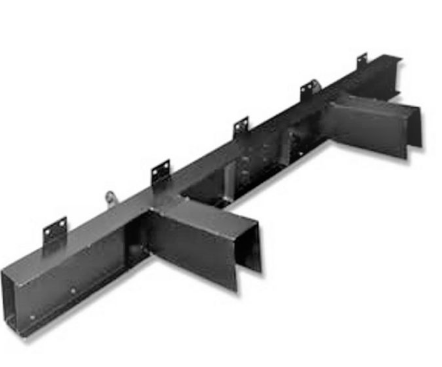

Rear Crossmember with 325mm Extensions for the military Lightweight (Air Portable) 88" chassis.

The rear crossmember closes and braces the rear of the chassis frame, tying the two side rails together and carrying the rear body mounts and towing fittings. This section is supplied with 325mm side extension legs that join the crossmember forward to the chassis rails, matching the rear frame geometry of the Lightweight / Air Portable configuration. A common corrosion repair item; fitting requires cutting out the old crossmember and welding the replacement in place.

Vehicle Model Land Rover Series 2 and 3

Fitment Notes SERIES II/III — Military (Air Portable)

Alternative Codes

LR70BA2095A

In stock 2 units

1 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the LR70 rear crossmember for?

The LR70 is an aftermarket rear crossmember with 325mm side extensions for the military Series 2 and 3 Lightweight, also known as the Air Portable. It closes and braces the rear of the chassis frame, tying the side rails together and carrying the rear body mounts and towing fittings.

Does the LR70 fit a standard civilian Series 88 inch?

The LR70 is sized for the military Lightweight (Air Portable) rear frame, with 325mm extension legs matching that configuration. Standard civilian Series 2 and 3 chassis have different rear geometry, so this is the correct part only for the Lightweight. Confirm your chassis type before ordering.

How is the LR70 crossmember fitted?

The LR70 is a weld-in repair. Fitting typically means cutting out the old corroded crossmember and welding the replacement, with its 325mm extensions, to the surviving chassis rails. It's a structural job needing welding equipment and correct alignment, not a bolt-on fit.
