FRC2884 - Swivel Pin Housing Shim – 0.13mm

- €0,60

€0,60

€0,60 - €0,60

€0,60

Tip: Log in to your account to unlock volume discounts on this item.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

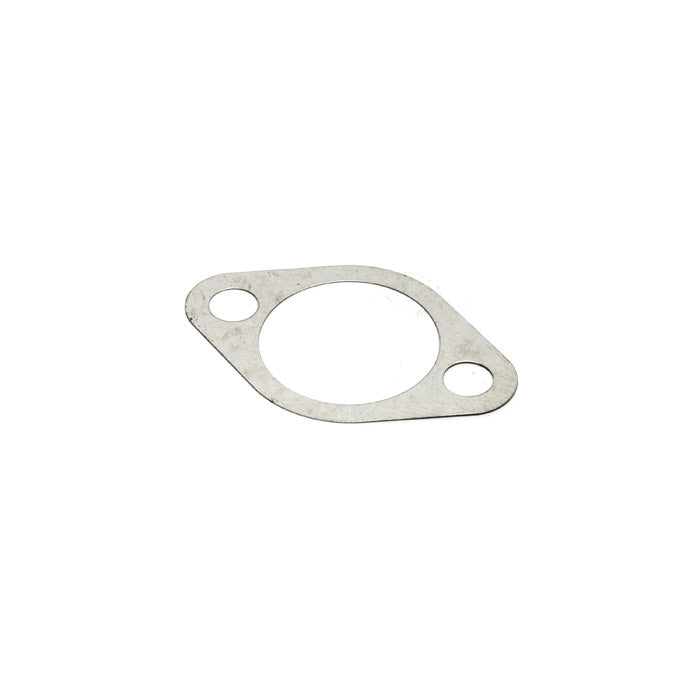

Swivel Pin Housing Shim - 0.13mm (0.005") for the front axle swivel pin housing assembly.

This precision shim is fitted between the swivel pin housing and the axle casing to set the correct pre-load on the swivel pin housing taper roller bearings. Correct bearing pre-load is essential for smooth steering operation and long bearing service life. Shims are typically used in combination across the available sizes to achieve the specified pre-load setting during overhaul or bearing replacement.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes DEFENDER 1987-2016 — Swivel pin housing shim 0.13mm (0.005"); to VIN KA930455 and from VIN LA930456; Puma from VIN 7A000001
DISCOVERY 1 1989-1998 — Swivel pin housing shim 0.13mm, from VIN JA032851
RANGE ROVER CLASSIC 1986-1994 — Swivel pin housing shim 0.13mm; ABS models all years; Less ABS from VIN JA624517

Alternative Codes

FRC2884BR 3640

In stock 107 units

88 · Gouda 19 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the FRC2884 swivel pin housing shim do?

The FRC2884 is a 0.13 mm (0.005 inch) precision shim for the front axle swivel pin housing on Defender, Discovery 1, and Range Rover Classic. Fitted between the swivel pin housing and the axle casing, it sets the correct pre-load on the swivel pin housing taper roller bearings during overhaul.

How many FRC2884 shims are needed for a swivel housing rebuild?

No fixed quantity applies. Shims are used in combination, selected to achieve the specified bearing pre-load measured with a dial gauge. The 0.13 mm FRC2884 is the thinner of the two standard sizes and is often combined with the 0.25 mm size FRC2885 to reach the target pre-load.

What is the difference between the FRC2884 and FRC2885 swivel pin housing shims?

The FRC2884 is the 0.13 mm (0.005 inch) shim and the FRC2885 is the 0.25 mm (0.010 inch) shim. Both fit the same swivel pin housing on Defender, Discovery 1, and Range Rover Classic. During overhaul they are combined in varying quantities to achieve the correct bearing pre-load.
