FTC3647 - Joint washer by AllmakesTransmission or Drivetrain Part Land Rover Range Rover Defender, Discovery, Range Rover

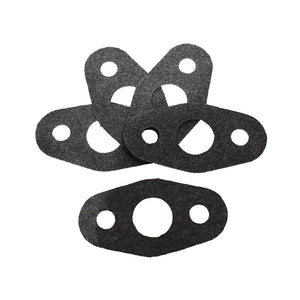

FTC3647 - Swivel Pin Gasket

- €1,00

€1,00

€1,00 - €1,00

€1,00

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Swivel Pin Gasket seals the joint between the swivel pin housing and the axle case on the front axle.

It sits at the mating face where the swivel housing bolts to the axle tube, retaining the swivel lubricant and keeping water and dirt out of the steering swivel assembly.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes Lower swivel pin housing gasket, front axle. JLR EPC description: 'Gasket-lower swivel pin'. Asbestos free.
DEFENDER 1986/87-2006 — Swivel pin housing, to (V) KA930455 and from (V) LA930456.
DEFENDER 2007-2016 — Swivel pin housing, from (V) 7A000001.
DISCOVERY 1 1989-1998 — Swivel pin housing, from (V) JA032851 (chassis range FA393361 to WA799999).
RANGE ROVER CLASSIC 1992-1994 — Swivel pin housing, from (V) JA610294. Both 4-wheel anti-lock braking system and less-ABS variants; less-ABS from (V) JA624517.

Alternative Codes

FRC2897FTC3647BR 3610

In stock 144 units

124 · Gouda 20 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the FRC2897 swivel pin gasket used for?

The FRC2897 swivel pin gasket seals the joint between the swivel pin housing and the axle case on the front axle. It sits at the mating face where the swivel housing bolts to the axle tube, retaining the swivel lubricant and keeping water and dirt out of the steering swivel assembly.

Which Land Rover models does this swivel pin gasket fit?

This swivel pin gasket fits the Defender (1987 to 2016), Discovery 1 (1989 to 1998), and Range Rover Classic (1992 to 1994). It seals the swivel pin housing to the front axle case. Use your VIN to confirm the swivel housing variant on your vehicle before ordering.

Should the swivel pin gasket be replaced when opening the swivel housing?

Yes, replace the swivel pin gasket whenever the swivel pin housing is unbolted from the axle case. The old gasket typically tears or compresses on removal and won't reseal reliably. Fitting a fresh gasket helps keep the swivel lubricant in and water out during a swivel overhaul.
