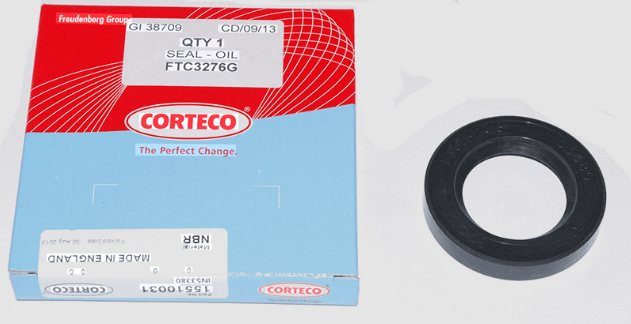

FTC3276G - Drive Shaft Oil Seal – Front

- €7,70

€7,70

€7,70 - €7,70

€7,70

Tip: Log in to your account to unlock volume discounts on this item.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Corteco

Drive Shaft Oil Seal - Front, fitted at the front axle swivel pin housing.

This radial lip seal runs on the front driveshaft where it passes through the inner swivel housing ball, retaining the axle and swivel lubricant and excluding water, dirt and grit from the joint. A worn seal allows oil loss and contaminant ingress, accelerating swivel and constant-velocity joint wear.

Two are fitted per vehicle, one on each side.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Land Rover Series 2 and 3

Fitment Notes DEFENDER 1986-2016 — Front driveshaft / swivel pin housing seal; axle codes 61L, 61S, 63L, 64L; front and rear disc brakes; 2007-2016 from VIN 7A000001; Qty 2 per vehicle
DISCOVERY 1 1989-1998 — With ABS: all; non-ABS: from VIN JA032851, 24-spline axle shaft (diff end)

Alternative Codes

FTC3276GFTC3276BR 3547

In stock 51 units

40 · Gouda 11 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the FTC3276 front drive shaft oil seal and what does it do?

The FTC3276 front drive shaft oil seal is a radial lip seal fitted at the front axle swivel pin housing. It runs on the driveshaft where it passes through the inner swivel housing ball, retaining axle and swivel lubricant and excluding water, dirt and grit. This is the Corteco OEM seal.

How many front drive shaft seals are needed?

Two front drive shaft oil seals are fitted per vehicle, one on each side. Replace both when overhauling the swivels, since they share the same age and exposure. They fit the Defender (1986-2016) and Discovery 1 (1989-1998).

What happens when this drive shaft seal fails?

A worn front drive shaft seal lets axle oil escape and allows water and grit into the swivel and constant-velocity joint, accelerating their wear. Signs include oil weeping from the swivel housing and contaminated grease. It's typically renewed whenever the swivel assembly is serviced.

Which vehicles does this front drive shaft seal fit?

This front drive shaft seal fits the Land Rover Defender (1986-2016) and Discovery 1 (1989-1998). On 2007-2016 Defenders it applies from VIN 7A000001, and on non-ABS Discovery 1 from VIN JA032851 with the 24-spline axle shaft. Check your VIN and axle code to confirm.
