FTC3646 - Swivel Joint Washer

- €1,30

€1,30

€1,30 - €1,30

€1,30

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

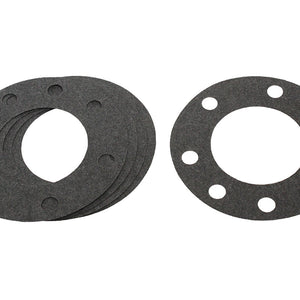

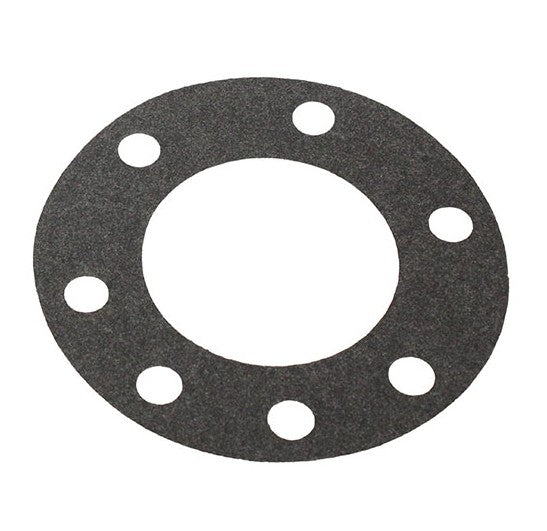

Swivel Joint Washer located within the Swivel Pin Housing Assembly, sealing the interface between the swivel housing flange and the axle beam face.

The washer prevents lubricant loss from the swivel housing and excludes contaminants from the joint interface. It is installed between the swivel housing and its mating face on the axle tube during swivel assembly.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes Gasket — swivel pin bearing housing to axle case
DEFENDER 1987-2006 — drive shafts, all variants
DEFENDER 2007-2016 — drive shafts, from (V) 7A000001
DISCOVERY 1 1989-1998 — drive shafts, ABS and non-ABS
RANGE ROVER CLASSIC 1986-1994 — ABS models; also non-ABS 1992-1994 from (V) JA624755

Alternative Codes

FTC3646FTC3646XBR 3608FRC2349

In stock 290 units

262 · Gouda 28 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the Swivel Joint Washer FTC3646 do?

The FTC3646 Swivel Joint Washer seals the interface between the swivel housing flange and the axle tube face, preventing lubricant loss from the swivel housing and excluding contaminants from the joint. It is fitted at the swivel pin housing assemblies during swivel overhaul on Defender, Discovery 1, and Range Rover Classic.

When should the swivel joint washer be replaced?

Replace this washer whenever the swivel housing is disassembled for seal replacement, bearing service, or inspection. Reusing a distorted washer risks a swivel housing oil leak, which can allow contamination to enter the hub and swivel bearings.

Does the FTC3646 fit all Range Rover Classic variants?

On the Range Rover Classic it fits ABS models and non-ABS models from VIN JA624755 onwards. Non-ABS Range Rover Classics built before that VIN may require a different washer — check the VIN before ordering.
