FRC6789 - Shim 1.50mm Transmission or Drivetrain Part Land Rover Range Rover Defender, Discovery, Range Rover

FRC6789 - Half Shaft Shim – 1.50mm

- €6,40

€6,40

€6,40 - €6,40

€6,40

Tip: Log in to your account to unlock volume discounts on this item.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

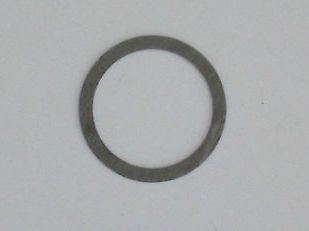

Half Shaft Shim is a 1.50mm selective shim used in the axle drive shaft and hub assembly.

It sets the endfloat of the half shaft drive member within the hub, controlling axial clearance as the hub is assembled. Shims are supplied in graded thicknesses so the correct spacing can be selected to bring the drive member within specification.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes DEFENDER 1986-2006 — front axle drive shaft/hub shim 1.50mm; hubs to VIN KA930455 / from LA930456
DEFENDER 2007-2016 — front axle hub shim 1.50mm
DISCOVERY 1 1989-1998 — front & rear axle half shaft shim 1.50mm (outer)
RANGE ROVER CLASSIC 1986-1994 — front & rear axle drive shaft/hub shim 1.50mm (outer)

Alternative Codes

FRC6789

In stock 10 units

10 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Half Shaft Shim 1.50mm used for?

The Half Shaft Shim 1.50mm is a selective shim that sets the endfloat of the half shaft drive member within the hub assembly. It controls axial clearance as the hub is built. Fitted to Land Rover Defender, Discovery 1 and Range Rover Classic axles.

How do I select the correct shim thickness?

The 1.50mm shim is one of a graded range supplied so the right spacing can be chosen. Measure the assembled half shaft endfloat during hub build and pick the thickness that brings it within specification, rather than ordering by guess. Sold individually.

Which axles does the 1.50mm half shaft shim fit?

The 1.50mm half shaft shim fits the Defender front axle (up to 2016) and both the front and rear axles on the Discovery 1 (1989-1998) and Range Rover Classic, as an outer shim. Confirm the axle and hub type on your vehicle before ordering.
