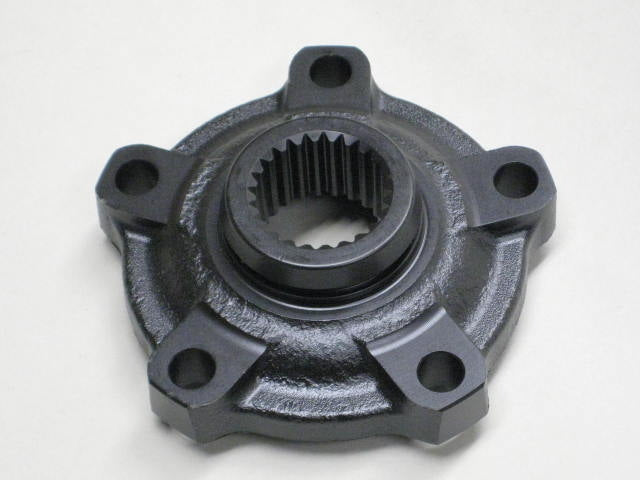

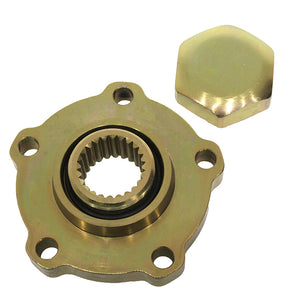

RUC105200 - Front axle hub drive flange

- €24,90

€24,90

€24,90 - €24,90

€24,90

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Front axle drive flange designed to connect the drive shaft to the wheel hub assembly.

The flange transmits rotational force from the half shaft to the hub, enabling driven front wheel operation.
Configured with internal splines and a multi-bolt mounting face, this component installs at the outer end of the front axle hub.

It is used in applications where the front axle shaft engages directly with the hub assembly and is suitable for vehicles equipped with ABS where specified in the application data.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes DEFENDER 1987-2006 — Hubs & Driveshafts, from (V) LA930456
DEFENDER 2007-2016 — Front Axle Hub, from (V) 7A000001
DISCOVERY 1 1989-1998 — Front Hubs, from (V) JA032851
RANGE ROVER CLASSIC 1986-1991 — to (V) HA610293, ABS
RANGE ROVER CLASSIC 1992-1994 — from (V) JA610294

Alternative Codes

FTC859RRUC105200RUC105200ESRUC105200OEM

In stock 22 units

14 · Gouda 8 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the Front Axle Hub Drive Flange (FTC859R) used for?

The Front Axle Hub Drive Flange bolts to the front hub and transmits drive from the driveshaft to the wheel hub. It's the flange the driveshaft engages, letting the front wheels be driven. This aftermarket flange fits the Defender, Discovery 1 and Range Rover Classic front hubs.

Where does the drive flange fit?

The drive flange fits on the outer face of the front hub on the Defender (Hubs and Driveshafts from VIN LA930456), Discovery 1 (front hubs from VIN JA032851) and Range Rover Classic. It's the part the driveshaft splines into, so it's accessed once the hub cap and retaining nut are removed.

What are the signs the drive flange needs replacing?

A worn drive flange usually shows as stripped or rounded splines, a clunk when drive takes up, or a flange that won't hold the driveshaft securely. On the Defender, Discovery 1 and Range Rover Classic it's renewed when the splines wear, since a slipping flange stops drive reaching the wheel.

How do I confirm this drive flange fits my vehicle?

This flange fits the Defender from VIN LA930456, Discovery 1 from VIN JA032851, and Range Rover Classic (to VIN HA610293 with ABS, and from VIN JA610294). Check your VIN against these ranges, since the earlier and ABS axles differ. Compare the spline count with your original before fitting.
