TF859B - Drive Flange – Front

- €31,40

€31,40

€31,40 - €31,40

€31,40

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Terrafirma

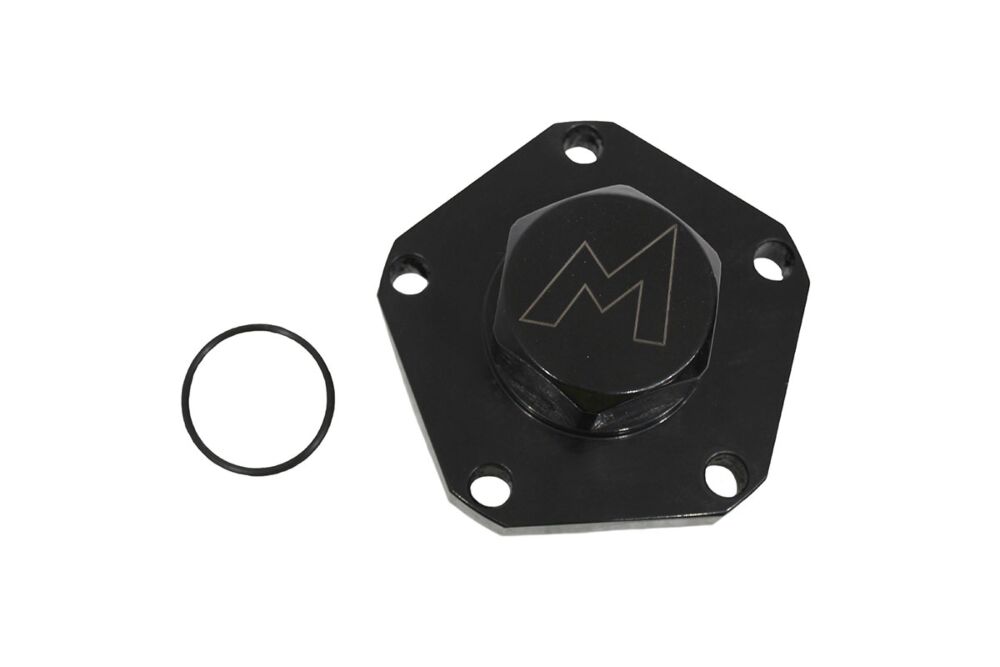

Drive Flange for the front hub assembly.

The drive flange bolts to the outer face of the hub and engages the splined end of the axle half shaft, transmitting drive to the road wheel. This is the late narrow type.

The flange incorporates a removable threaded dust cap with sealing ring, which protects the half shaft splines and retains lubricant within the hub.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Range Rover Classic up to 1994

Fitment Notes DEFENDER 1986-2006 — from 1994, from (V) LA930456
DEFENDER 2007-2016 — all
DISCOVERY 1 1989-1998 — from 1994, from (V) JA032851
RANGE ROVER CLASSIC — from 1994
Terrafirma heavy-duty drive flange, late narrow type, black

Alternative Codes

TF859BTF859571752FTC859H/DRUC105200

In stock 4 units

2 · Gouda 2 · Drachten

Express delivery available

4 more on the way · ETA 31-07-2026

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

4 more units on the way — expected 31-07-2026. Orders beyond current stock are reserved from incoming stock and shipped as soon as they arrive.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the TF859 front drive flange do?

The TF859 front drive flange bolts to the outer face of the front hub and engages the splined end of the axle half shaft, transmitting drive to the road wheel. This is the Terrafirma heavy-duty late narrow type for Land Rover Defender, Discovery 1 and Range Rover Classic.

Is the drive flange sold individually?

The TF859 is supplied as a single front drive flange. A vehicle has one at each front hub, so replacing both sides needs two. Many owners renew them in pairs when upgrading to the heavy-duty type.

What's the difference between the late narrow and earlier drive flange?

The TF859 is the late narrow type drive flange, used on Land Rover Defender from VIN LA930456 and Discovery 1 from JA032851. Earlier hubs use a different flange, so confirm your axle type and VIN before ordering to get the correct fit.

What are the signs a drive flange needs replacing?

A worn or cracked front drive flange typically shows as a clicking or knocking under drive, oil weeping past the dust cap seal, or stripped flange bolt holes. The threaded dust cap protects the half shaft splines. Replacing it restores secure drive to the front wheels.
