FRC9849 - Thrust washer 1.25mm diff LT230 by BritpartTransmission or Drivetrain Part Land Rover Range Rover Defender, Discovery, Range Rover

FRC9849 - Thrust Washer – 1.25mm – LT230 Diff

- €4,80

€4,80

€4,80 - €4,80

€4,80

Tip: Log in to your account to unlock volume discounts on this item.

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

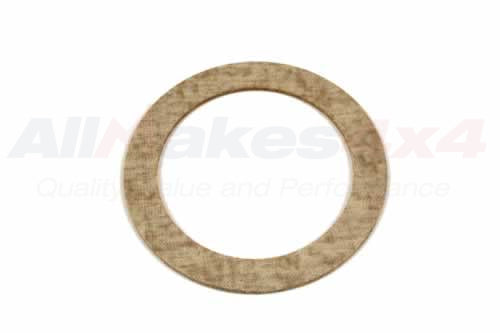

Thrust Washer is a 1.25mm selective thrust washer for the centre differential of the LT230 transfer box.

It sets the end-float of the centre differential assembly and is one of a range of thicknesses selected to achieve the correct differential clearance during assembly.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Land Rover Discovery 2 1998-2004 (L318)
Range Rover Classic up to 1994

Fitment Notes LT230 transfer box centre differential thrust washer (1.25mm, Transfer Box 22D). Fits Defender 1986-2016, Discovery 1, Discovery 2, Range Rover Classic 1986-1991 (to VIN HA610293)

Alternative Codes

FRC9849FRC6960

In stock 11 units

6 · Gouda 5 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the FRC9849 thrust washer used for?

The FRC9849 is a 1.25mm selective thrust washer for the centre differential of the LT230 transfer box. It sets the end-float of the centre diff assembly, chosen from a range of thicknesses to achieve the correct differential clearance during build.

How do I select the right LT230 centre diff thrust washer?

The 1.25mm thrust washer is one of a graduated set (1.05mm, 1.15mm, 1.25mm and others) used to set centre differential end-float in the LT230 transfer box. Measure end-float on assembly and pick the thickness that meets the specified clearance.

Which vehicles use this 1.25mm LT230 thrust washer?

This 1.25mm thrust washer fits the LT230 transfer box centre differential on the Defender 1986-2016, Discovery 1, Discovery 2 and Range Rover Classic from 1986 to 1991 up to VIN HA610293. This is the Britpart aftermarket version.
