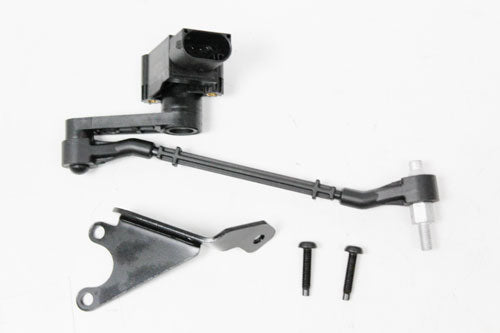

LR020626 - Ride Height Sensor – Front Suspension – LH

- €85,40

€85,40

€85,40 - €85,40

€85,40

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Front Ride Height Sensor - left-hand side. Position sensor in the electronic air suspension system, linked between the front suspension arm and the chassis.

It measures the angular displacement of the suspension as the wheel moves through its travel and reports the corresponding ride height to the air suspension control module. The module uses this signal to regulate air spring pressure and hold the vehicle at the target ride height, adjusting for load and the selected height setting.

Vehicle Model Range Rover 2002-2012 (L322)

Fitment Notes RANGE ROVER 2002-2009 (L322) — Front air suspension ride height sensor, LH. From VIN 4A174108

Alternative Codes

LR020626

Available to order 2–3 weeks

Not currently in stock. Order now — typically ships within 2–3 weeks.

Need it faster? Contact us about express import (2–5 business days).

When will my order arrive?

This item is ordered from our supplier on request. Typical lead time is 2–3 weeks from order confirmation.

Netherlands / Belgium / Germany: 2–4 working days after dispatch.
Other EU countries + UK: 4–8 working days after dispatch.
Outside EU/UK: contact us for an estimate.

Need it faster? Express import available in 2–5 business days — contact us before ordering.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the LR020626 ride height sensor do?

The LR020626 is the front left-hand ride height sensor on the Range Rover L322 with electronic air suspension. It links the front suspension arm to the chassis and measures how far the suspension moves, sending that signal to the air suspension control module so it can hold the vehicle at the correct ride height. It's an Allmakes aftermarket part.

Where is the ride height sensor fitted?

The ride height sensor fits at the front left-hand corner of the Range Rover L322, linked between the lower suspension arm and the chassis by a drop link. It sits low in the suspension, so it's typically exposed to road salt and impact, which is a common reason these sensors fail.

What are the signs a ride height sensor has failed?

A failed ride height sensor usually shows as the air suspension sitting unevenly, dropping at one corner, or throwing a suspension fault and warning message. The car may default to a fixed height. Because the module relies on this signal, a faulty front left sensor can stop the L322 levelling correctly.

How do I confirm this ride height sensor fits my Range Rover?

This ride height sensor fits the Range Rover L322 front left-hand position from VIN 4A174108 onward. Check your VIN against that break before ordering, and confirm you need the front left corner specifically, not the rear or the right-hand sensor.
