LR030047G - Anti Rollbar Link / Moog by Delphi, MoogSteering or Suspension Part Land Rover Range Rover Range Rover

LR030047G - Anti-Roll Bar Link – Front

- €26,90

€26,90

€26,90 - €26,90

€26,90

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Delphi, Moog

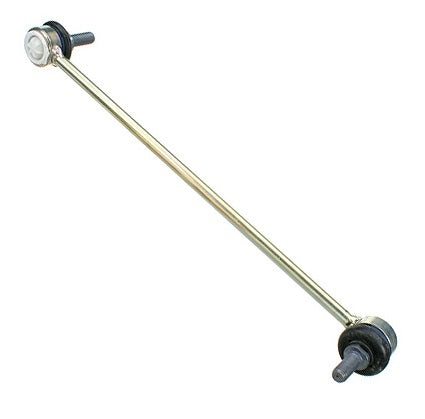

Anti-Roll Bar Link is a front stabiliser drop link that connects the anti-roll bar to the suspension, forming part of the front anti-roll bar assembly.

As the suspension moves through its travel the link transmits that movement to the anti-roll bar, loading the bar in torsion to resist body roll during cornering. Ball-joint ends allow the link to articulate as the suspension travels.

Vehicle Model Range Rover 2002-2012 (L322)

Fitment Notes RANGE ROVER L322 2002-2012 — front anti-roll bar stabilizer drop link. Supersession: RBM500200 to LR030047 to LR073340

Alternative Codes

RBM500200LR030047LR030047GRBM500200RLR073340RBM000011

In stock 8 units

8 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What does the front anti-roll bar link do?

The front anti-roll bar link is a drop link connecting the anti-roll bar to the front suspension on the Range Rover L322 (2002-2012). As the suspension travels, the link loads the anti-roll bar in torsion to resist body roll during cornering. Ball-joint ends let it articulate through suspension travel.

How many front anti-roll bar links do I need?

The front anti-roll bar links are fitted one per side, so two are usually needed to do the job properly on the Range Rover L322. Replacing both at once keeps handling balanced, since a worn link on one side often means the other is close behind.

Why do front anti-roll bar links fail on the L322?

Front anti-roll bar links typically fail when the ball-joint ends wear or lose their grease, letting the joint develop play. Common signs are knocking or rattling from the front over bumps, vague steering feel and excess body roll in corners. Worn links can't control roll effectively.

What part numbers supersede RBM500200?

RBM500200 supersedes to LR030047, then to LR073340, all the same front drop link for the Range Rover L322. Cross-reference RBM000011 and Hotbray code RBM500200R also apply. Any of these identifies the correct front anti-roll bar link for your L322.
