RTC4653KIT - Oil Screen Kit – Automatic Transmission

- €31,70

€31,70

€31,70 - €31,70

€31,70

Aftermarket: Quality alternative. This is a quality alternative, designed to fit and function like the original part, often at a more competitive price.

Automatic Transmission Oil Screen Kit for the ZF 4-speed automatic transmission, serving the fluid filtration circuit within the transmission sump.

The oil screen sits in the base of the transmission sump and filters the automatic transmission fluid before it is drawn through the pump and circulated to the hydraulic control system and valve body, protecting the transmission from particulate contamination.

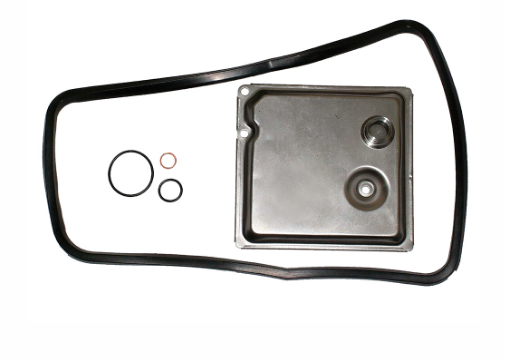

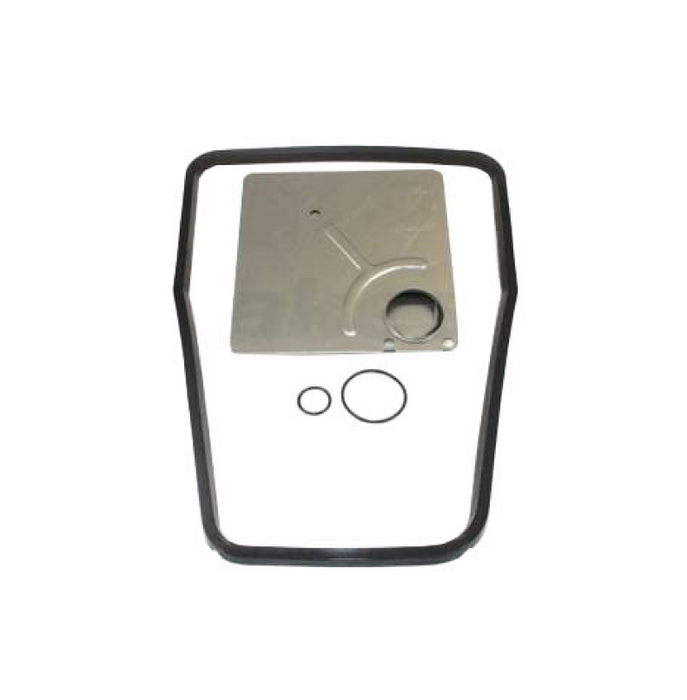

This kit includes the oil screen, the sump gasket and the sump O-rings required to reseal the sump on reassembly. Renew when servicing the transmission fluid.

Vehicle Model Land Rover Defender up to 2016
Land Rover Discovery 1 1989-1998 (L318)
Land Rover Discovery 2 1998-2004 (L318)
Range Rover Classic up to 1994
Range Rover Classic 1994-2001 (P38)

Fitment Notes DEFENDER 1983-2006 — Automatic transmission ZF 4-speed, oil screen
DISCOVERY 1 1989-1998 — From (V)FA393361, automatic transmission
DISCOVERY 2 1998-2004 — Automatic transmission
RANGE ROVER 1994-2001 — Automatic transmission
RANGE ROVER CLASSIC 1986-1991 — To (V)HA610293
RANGE ROVER CLASSIC 1992-1994 — From (V)JA610294

Alternative Codes

RTC4653KRTC4653RTC4653KITDA4500

In stock 10 units

7 · Gouda 3 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the RTC4653K oil screen kit and what does it do?

The RTC4653K is an automatic transmission oil screen kit for the ZF 4-speed gearbox fitted to Land Rover Defender, Discovery 1 and 2, Range Rover Classic and Range Rover P38. The screen sits in the transmission sump and filters the fluid before the pump draws it through to the valve body and hydraulic control system.

What is included in the kit?

This kit includes the oil screen, the sump gasket and the sump O-rings needed to reseal the transmission sump on reassembly. Supplying the seals with the screen means the sump can be refitted without sourcing gaskets separately. Renew the screen and reseal the sump whenever the automatic transmission fluid is serviced.

Why and when should the transmission oil screen be replaced?

The oil screen is renewed during an automatic transmission fluid service to clear the filter of accumulated clutch material and debris. A clogged screen can starve the pump and cause slipping or delayed shifts on the ZF 4-speed. Fitting the kit with fresh fluid restores clean flow to the valve body and hydraulics.

Which models and VIN ranges does this kit fit?

Fitment covers the ZF 4-speed automatic on Defender, Discovery 1 from VIN FA393361, Discovery 2, Range Rover Classic and P38. Some Range Rover Classic builds split on VIN, to HA610293 and from JA610294, so check your chassis number against the fitment note if you run a Classic.
