SMK000010 - Brake Return Spring Brake Part Land Rover Range Rover Range Rover

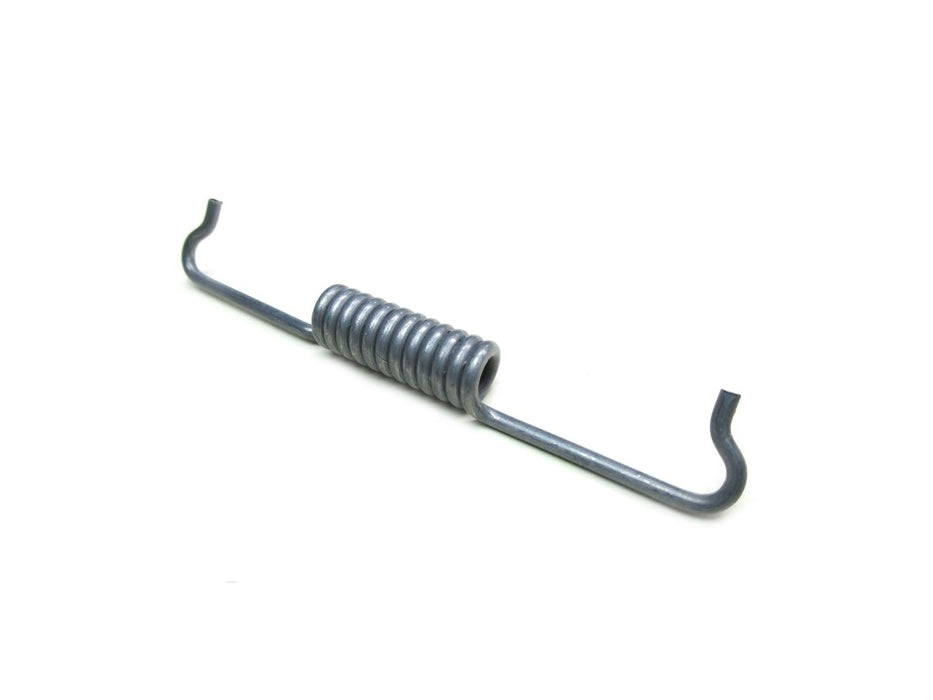

SMK000010 - Handbrake Shoe Return Spring

- €3,40

€3,40

€3,40 - €3,40

€3,40

Tip: Log in to your account to unlock volume discounts on this item.

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Handbrake Shoe Return Spring for the drum-in-hat parking brake assembly housed inside the rear brake disc bell.

The spring acts between the parking brake shoes, pulling them back off the drum friction face once the handbrake lever is released so that the shoes clear the drum and the brake does not drag. A stretched, fatigued or broken return spring leaves the shoes in contact with the drum, which causes binding, heat build-up and rapid lining wear, and can stop the handbrake releasing fully.

Replace the springs whenever the parking brake shoes or the shoe adjuster are renewed, and treat them as a set across the assembly rather than fitting one new spring against an aged one.

Vehicle Model Range Rover 2002-2012 (L322)

Fitment Notes RANGE ROVER L322 2002-2012 — parking brake (handbrake) shoe return spring

Alternative Codes

SMK0000102296

In stock 2 units

2 · Gouda 0 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the handbrake shoe return spring for?

The handbrake shoe return spring retracts the parking brake shoes when you release the handbrake on the Range Rover L322. It works inside the drum-in-hat parking brake housed within the rear brake disc.

How many return springs do I need for the job?

Parking brake shoe return springs are typically renewed as a set when servicing the handbrake shoes on the Range Rover L322. Check your parking brake shoe kit to confirm how many springs each side uses before ordering.

What are the signs the handbrake return spring needs replacing?

A weak or broken return spring lets the L322 parking brake shoes drag or fail to retract, causing rubbing, uneven wear, or a handbrake that will not release cleanly. Replace the spring when servicing the parking brake shoes.
