STC2808 - Bearing Taper Roller Pinion Diff Outer by TimkenSteering or Suspension Part Land Rover Range Rover Defender, Range Rover

STC2808 - Taper Roller Bearing – Diff Pinion Outer

- €65,90

€65,90

€65,90 - €65,90

€65,90

OEM: Made by an Original Equipment Manufacturer. This part is made by an original equipment manufacturer or under their license, ensuring compatibility and quality.

Brand Timken

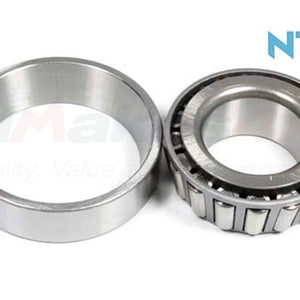

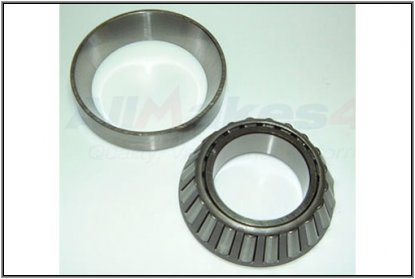

Taper Roller Bearing - outer pinion bearing in the differential final drive assembly.

The drive pinion is carried on a pair of opposed taper roller bearings inside the differential housing. This is the outer bearing of that pair, sitting between the pinion flange and the pinion head, and it carries the axial thrust generated as the pinion drives the crown wheel. Bearing preload is set by the collapsible spacer or shim stack behind the flange nut, so the pinion oil seal, spacer and flange nut are normally renewed at the same time.

Worn pinion bearings show as a rumble that changes between drive and overrun, or as detectable end float at the pinion flange. Both pinion bearings should be replaced together, with pinion preload and crown wheel backlash reset on assembly.

Vehicle Model Land Rover Defender up to 2016
Range Rover Classic 1994-2001 (P38)

Fitment Notes DEFENDER 1987 - 2006 Differential Rear With Land Rover Type Axle (V)LA390456
DEFENDER 2007 - 2016 Differential Assembly 110" Wheelbase,130" Wheelbase (V)7A000001
RANGE ROVER 1994 - 2001 CLASSIC Differential Front
RANGE ROVER 1994 - 2001 CLASSIC Differential

Alternative Codes

STC1155STC2808JXC10238DFNP850232-90401

In stock 4 units

3 · Gouda 1 · Drachten

Express delivery available

When will my order arrive?

Order before 15:00 (Mon–Fri): same-day dispatch for in-stock items.
UPS Express (order before 14:00): dispatched today, delivered tomorrow where available.
Netherlands / Belgium / Germany: 2–4 working days.
Other EU countries + UK: 4–8 working days.
Outside EU/UK: delivery times vary — contact us for an estimate.

Items may ship from multiple warehouses at no extra cost.

Job kits containing this part

This part is included in 0 job kit(s) below. Pick the kit that matches your vehicle and job, then add what you need.

Frequently asked questions

What is the STC1155 taper roller bearing?

This is the outer pinion taper roller bearing for the differential final drive. The drive pinion runs on a pair of opposed taper roller bearings inside the diff housing, and this is the outer one, between the pinion flange and pinion head.

Which vehicle and axle does this bearing fit?

This Timken bearing fits the Defender (1987-2006) differential with the Land Rover-type axle, supplied singly. Because pinion bearings are matched to the diff setup, confirm your axle type before ordering.

What are the signs of a worn pinion bearing?

A worn pinion bearing usually shows as a whine or growl from the differential that changes with speed, or play at the pinion flange. Left unchecked it can damage the crownwheel and pinion, so renew worn bearings as a set.
